Sub 250gr Long range Flywoo Explorer LR HD 4'' 4S Micro Quadcopter

25-08-2020



Explorer LR quad is the masterpiece of the collaboration between Flywoo and #micro long range original creator Dave_C .  #Micro long range is a brand new field, and we will explore more fun in this field with Dave_C in the future.

For me personally, Long Range cruising through epic landscapes is the best thing about FPV! But unfortunately, it was always kind of difficult to practice legally and without bothering people with all the noise a massive 6 or 7" long range quad produces.

So the basic idea behind the original Project #MicroLongRange was born: Scale down a 7" long range quad until it is below 250g take off weight. With the support of an awesome community on Facebook and Instagram as well as a massive development effort by Flywoo, this concept has seen a lot of improvements that are now all implemented in the Explorer LR!

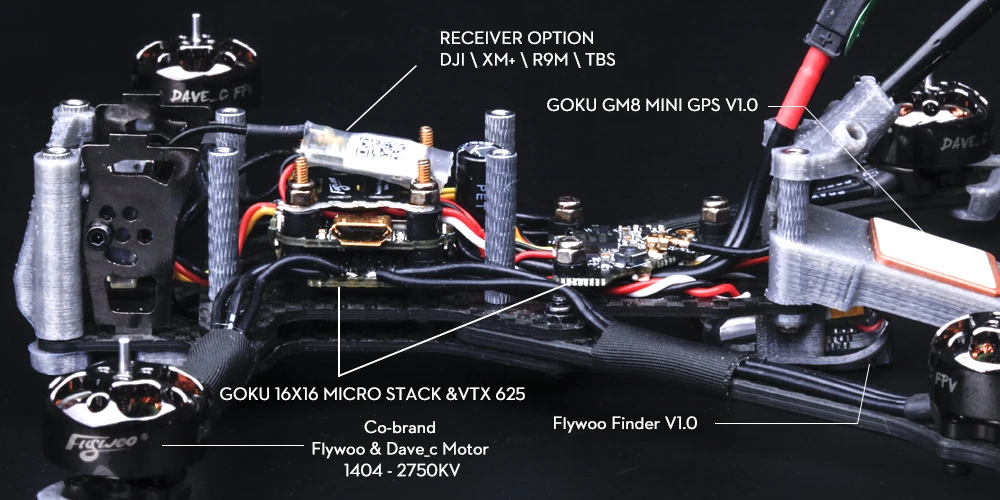

This tiny quad is equipped with GPS, Crossfire and an independent model finder to give you the necessary confidence to push it to the maximum range of digital and analogue video transmission. The powertrain with it's GOKU 16x16 stack and the all new 2700kV 1404 motors spinning 4" props is optimized for maximum efficiency and low weight: Flight times of way over ten minutes on a regular 850mah 4S LiPo battery are easily achievable! Cruising speeds of 40-50 kph (25-30mph) are astonishingly high for such a small quad and have allowed me to do 10km (6 mile) round trips easily. And the best thing about it: It's incredibly quiet! You will barely be able to hear it flying by as soon as you are a few dozen meters away. ”- Dave_C FPV

Available SOON at Banggood.com

Specification:

Brand Name: Flywoo

Model: Explorer LR  RunCam Nano 2 Version

Item Name: 4 Inch F4 OSD Long Range FPV Drone

Weight: 246g

Flight Time: 15-16 mins



GOKU F411 Micro Stack

- F4 OSD Flight Controller

Brand Name: Flywoo

Model: GOKU F411 FC
MCU: STM32F411
IMU: MPU6000 gyro/accelerometer (SPI)
OSD: BetaFlight OSD w/ AT7456E chip
Baro: no
black box: 8M
LED:8*WS2812
BEC Output: 5V@2A
Integrated LC Filter
Firmware target: FLYWOOF411
Size: 24×24mm board,16mm mounting holes (M3)
Weight: 2.6g

GOKU BS13A ESC

Brand Name: Flywoo

Model: GOKU BS13A ESC
ESC MCU: BB21F16G
Continuous current: 13A
Input:2-4s lipo
Supports Dshot600 ,Oneshot,Multishot
Size: 24×24mm board,16mm mounting holes (M3)
Weight: 2.6g

GOKU VTX625

Output Power: PIT/25mW/50mW/100mW/200mW/450mW Switchable

Control Mode: BFOSD Control(RX)/Button

BAT: 5V

LED: 4*WS2812LED

Video System: NTSC/PAL

Antenna: IPEX

Size: 31MM*31MM

hole: 16*16mm/20*20mm/25.5*25.5mm

Weight: 3g

NIN 1404 V2 2750KV Motor Brand Name: FLYWOO
Model: NIN 1404
Item Name: 1404 2750KV 4-6S Brushless Motor
Color: Titanium
Input Voltage: 4-6S
Stator diameter: 14mm
Stator height: 4mm
KV: 2750KV
Shaft size: M1.5
Gemfan 4024 Propeller

Brand Name: Gemfan

Item Name: 4024 4x2.4 4 Inch Propeller


Quantity: 2 CW & 2 CCW

Recommend Lipo Battery

( NOT Included)

Recommend 4S 650-1300mAh Lipo XT30 Plug



Feature:

1.The lightweight 4-inch quad below 250g even if you connect with the battery, meet the current requested of FAA rules. Easy to control and long flight time, we strongly recommend to FPV beginners and pilots who like to cruise!

2.Equipped with GOKU 16X16 MICRO STACK, and NIN 1404 v2-2750kv, support 4s battery. You can get up to 20 minutes for cruising! So this is a quad that is very suitable for FPV beginners and long range enthusiasts!

3.We recommend installing side carbon fiber plate to increase the strength and stability of the Arm.

Flywoo Finder v1.0 how to work?

1 Flywoo Finder v1.0 can power itself to beep and LED light to flash even the quad battery has been ejected.

2 Fingder v1.0 can work for 4-5 hours.

3 Press the button for 3 seconds to close it

Flywoo Goku Gps Mini V1.0  rescue function how to work  ?
1. Before disarm, GPS must search for more than 5 satellites to lock the home position.

2. After disarm, observe the OSD data during the flight, and the rescue function can work normally only if the distance exceeds 100 m. Otherwise, the quad will crash.

3. If the remote control suddenly loses signal, the GPS rescue function will work automatically and return to the home position. (Set the AUX of GPS rescue mode in betaflight Failsafe, the default is AUX3 2000)

Flywoo  ATOMIC 5.8G antenna customized for Explorer LR ! Of course it is also suitable for any other FPV drones!

Package Included:

1* Prebuilt and tested Explorer LR Drone

1* Spare Front Arm

1* Side carbon plate 1 set

1* Spare srew

2*Gemfan 4024 4pcs

1*Flywoo 4X10mm Arm led board







Available SOON at Banggood.com
