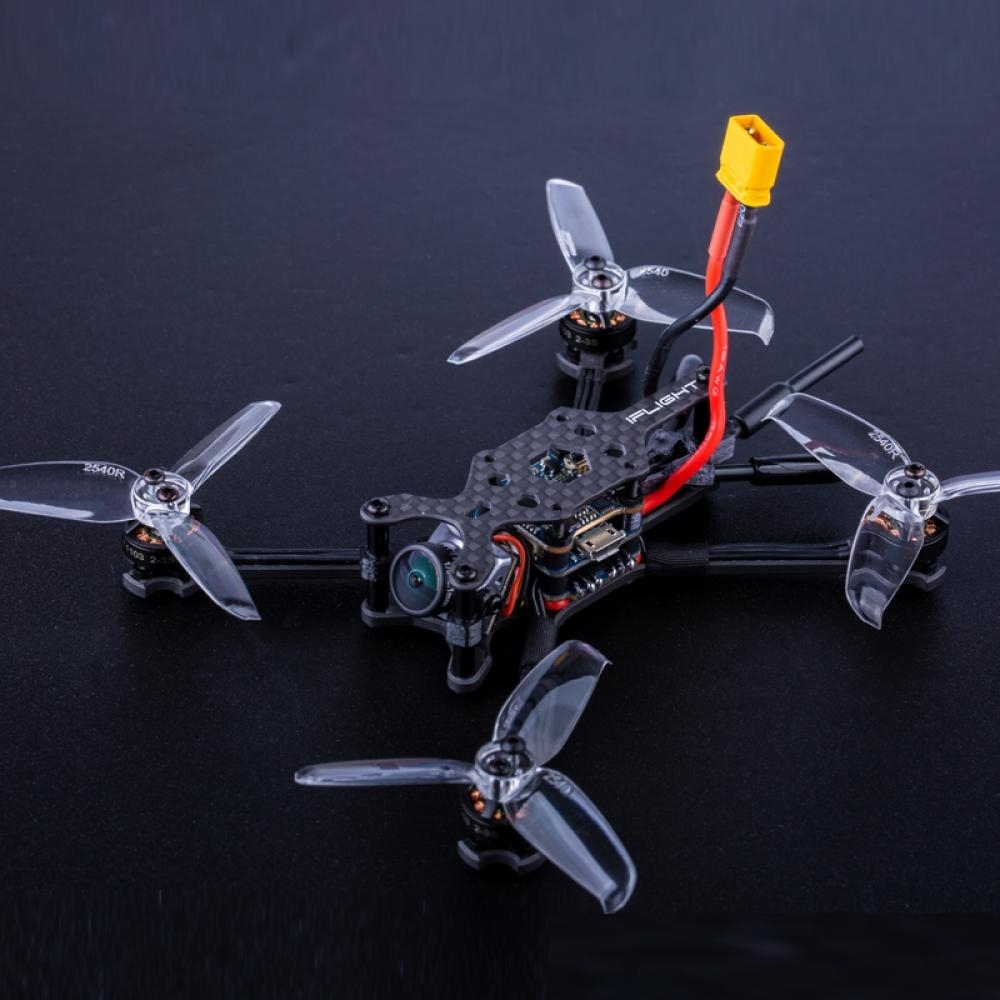

iFlight TurboBee 120RS micro RACE quad

27-04-2019


Specification:

This TurboBee 120RS is designed and born for micro FPV racing.

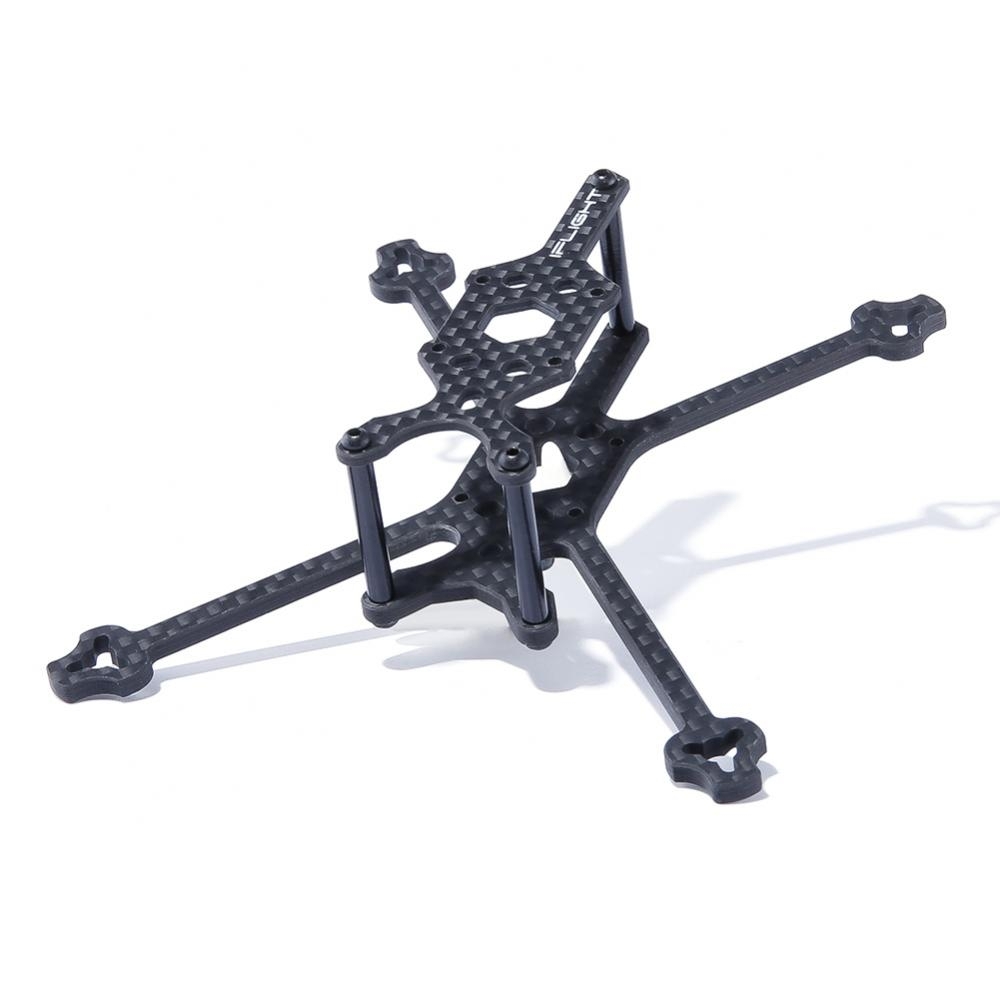

TurboBee 120RS Frame Specs:

Wheelbase: 121mm
Bottom plate thickness: 2.5mTop plate thickness: 2mm
Arm width: 4mm
Electronic equipment installation height : 22mm (aluminum column height 22mm)
Flight control hole distance: 16mm
Weight: Around 12.2g
Support motor: 11xx
Support propeller: maximum of 2.5 inches, 66MM propeller

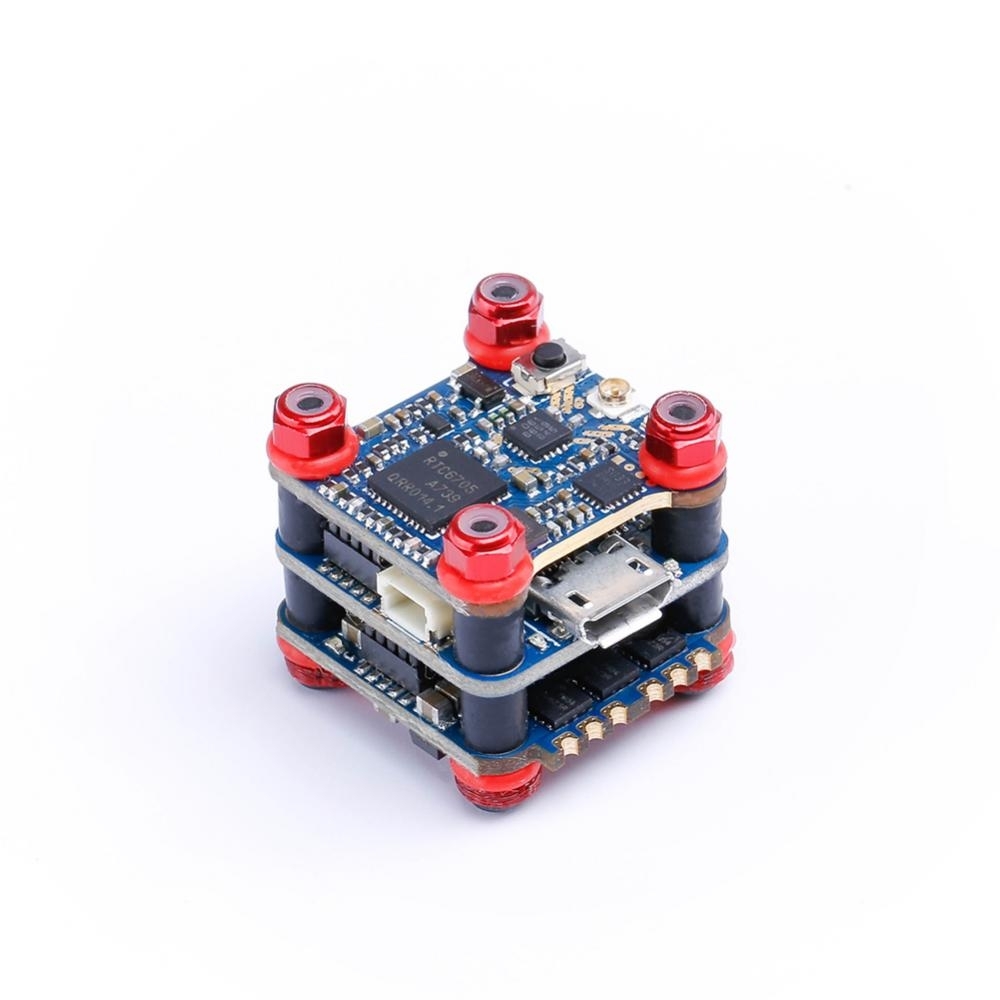

SucceX Micro flytower Specs:

SucceX F4 Flight Controller:

  • STM32F411
  • Input voltage 2-4S LIPO
  • Gyro: MPU6000
  • 2x UART ports
  • 4x motor outputs
  • OSD inbuilt
  • No Blackbox FLASH
  • BEC 5V 2A Cont.
  • Size: 21mm*21mm
  • Mounting holes: 16*16
  • Weight: 2.5g
  • BF target: MATEKF411


SucceX Micro 12A Brushless ESC:

  • Firmware: BlheliS
  • Input voltage : 2-4S LIPO
  • Continuous current: 12A
  • MCU: BB21F16G
  • BEC: None
  • ESC protocol: PWM, oneshot125, multishot, dshot150, 300, 600, etc.
  • Size: 23mm*21mm
  • Mounting hole 16*16mm
  • Weight: 2.7g


SucceX Micro VTX:


  • Power: PIT/25/100/200mW
  • Antenna interface: IPEX (UFL)
  • Telemetry: IRC Tramp
  • Size: 17mm*27mm
  • Mounting holes: 16*16mm
  • Weight: 1.6g


1103 Motors
Caddx.us Turbo Eos2 Camera
Gemfan 40mm 1.5mm shaft tri-blade propellers

Receivers option:

  • PNP no receiver
  • BNF Frsky Mini XM+
  • BNF Flysky FS-A8S V2
  • BNF Futaba FT4X
  • BNF DSM2/DSMX
  • BNF Frsky R-XSR

Package included:

1x TurboBee 120RS Micro FPV Race Drone PNP/BNF



Available at banggood: https://api.racer.lt/7shb
