Happymodel Mobula7 HD 2-3S 75mm HD cinemaDrone

26-01-2019

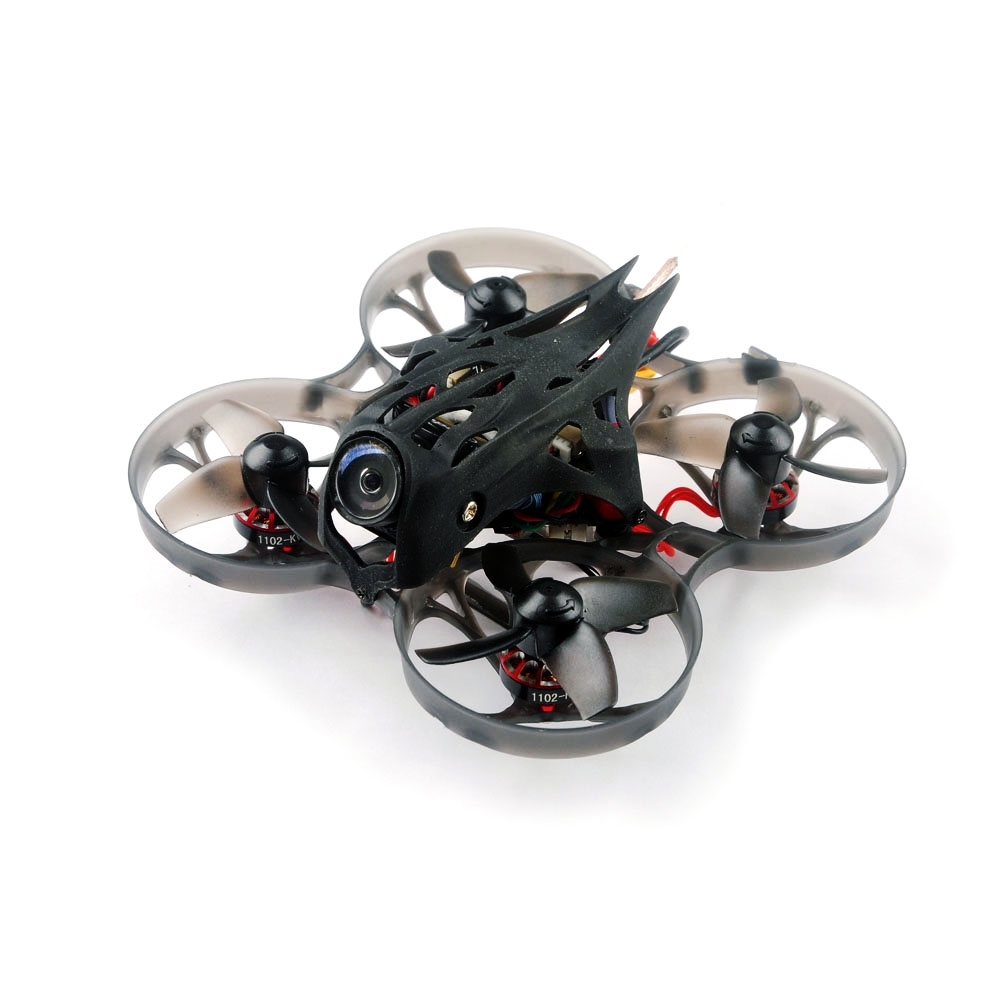

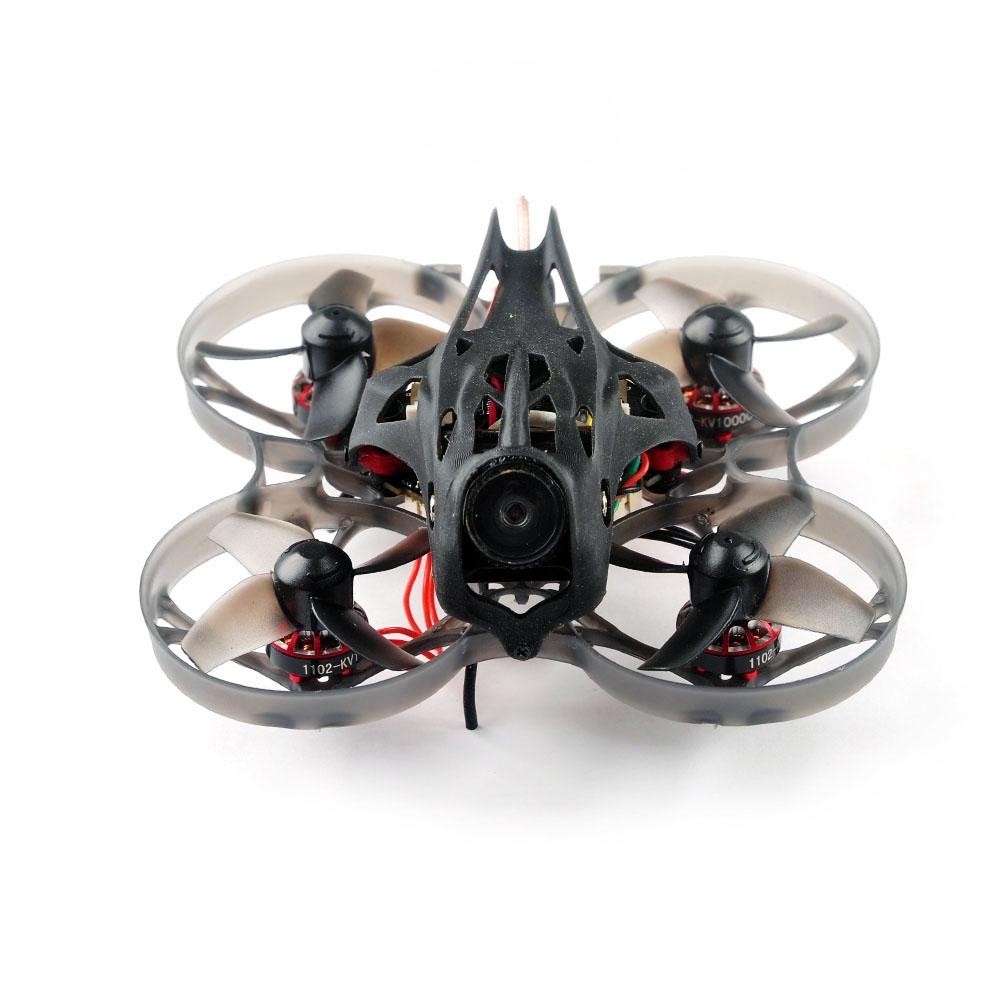

Happymodel Mobula7 HD 2-3S 75mm with CADDX Turtle V2 HD Camera
Soon available here: BangGood








Specification:

Brand Name: Happymodel
Model: Mobula7 HD
Item Name: 75mm Wheelbase 2-3S Brushless Whoop FPV Racing Drone
Wheelbase: 75mm
Receiver ( Optional):

  • Compatible Frsky NON-EU Receiver
  • Compatible Flysky Receiver
  • Compatible DSM2/DSMX Receiver
  • Without Receiver

Size: 98mm*98mm*45mm

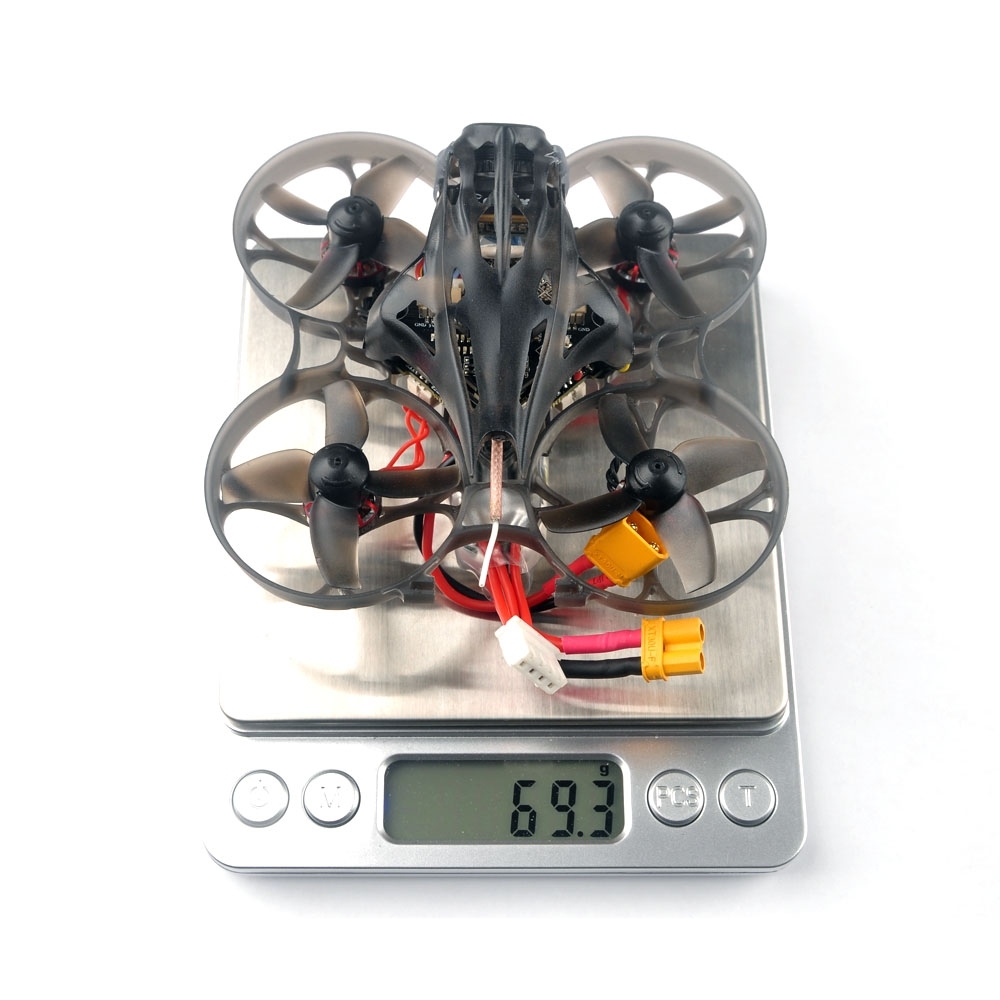

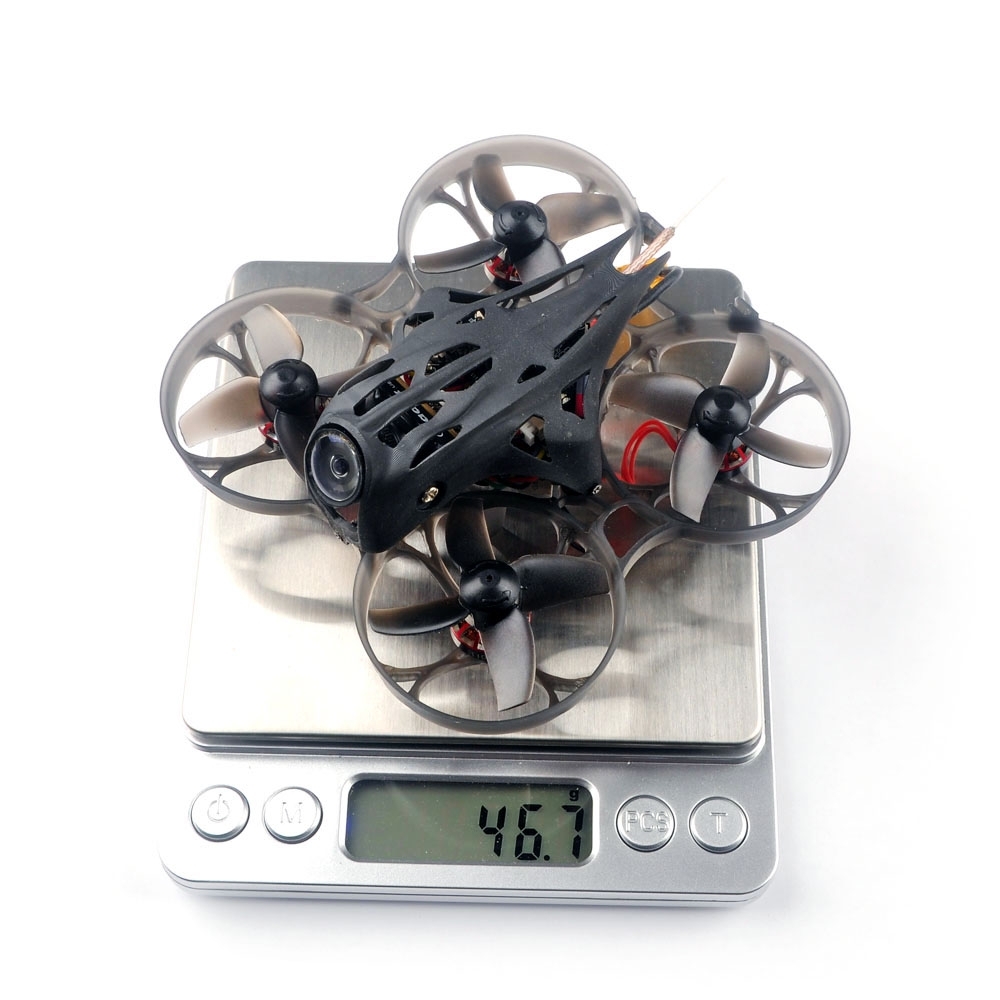

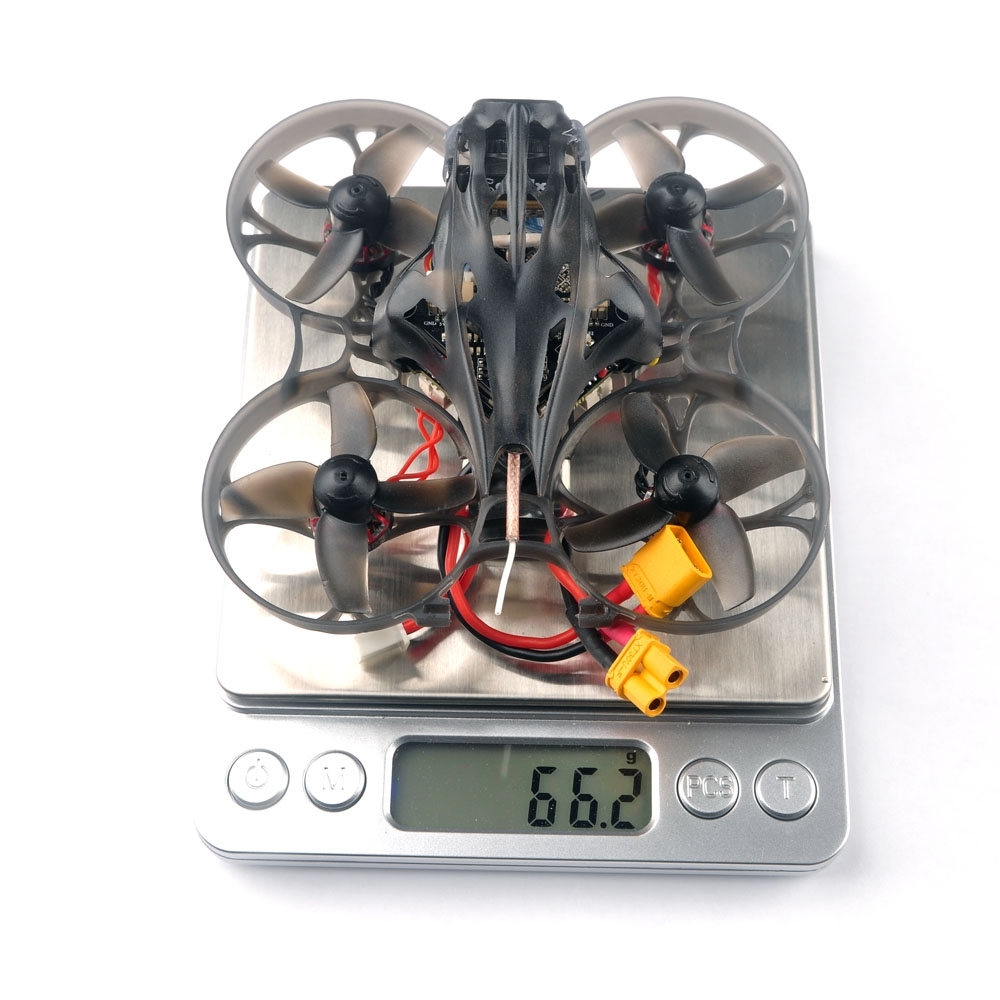

Weight: 48g (without battery)
             72g ( with battery )


Crazybee F4 PRO V2.0 Flight Controller
Item Name: Crazybee F4 Pro V2 FC
MCU:  STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1-3S battery input (DC 3.5-13V)

Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Receiver ( Diffirent version having diffirent receiver,
                            without receiver version doesn't have rx)
Built-in Betaflight OSD(SPI Control)
Built-in Current meter Max 28A
Current meter scale set to 1175
Built-in 5V 1A Buck / Boost with LC filter
Built-in voltage detection

Firmware

(Frsky version) CRAZYBEE F4FR PRO V2.0 Firmware target: CrazybeeF4FR

(Flysky version) CRAZYBEE F4FS PRO V2.0 Firmware target: CrazybeeF4FS

(DSM2/DSMX version) CRAZYBEE F4DX PRO V2.0 Firmware target: CrazybeeF4DX

(No RX version) CRAZYBEE F4 PRO V2.0 Firmware target: CrazybeeF4DX

Onboard 5A 4 In 1 ESC


MCU upgraded to EFM8BB21


Power supply: 1-3S LiPo/LiPo HV (3.5v/13v)

Current: 5A continuous peak 6A (5 seconds)

Support BLHeliSuite programmable

Factory firmware: S_H_50_REV16_7.Hex

Default protocol: DSHOT600


Onboard Frsky NON-EU receiver Version

SPI BUS receiver

Frsky D8/D16 switchable

Compatible Non EU transmitter both D8 and D16 mode

Channels: 8ch or 16ch

Failsafe support

No ground interference ( Transmitter and receiver 1 m from the ground): 300m

Onboard Flysky receiver Version

SPI BUS receiver

Protocol: AFHDS and AFHDS-2A Switchable

Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)

No ground interference ( Transmitter and receiver 1 m from the ground): 300m

Failsafe support


Onboard DSM2 / DSMX receiver version

Serial bus receiver
Protocol: DSM2/DSMX compatible
Channels:6-9 (Depend on your radio)
No ground interference ( Transmitter and receiver 1 m from the ground): 300m

EX1102 10000KV Motor
Model: EX1102
KV: 10000KV
Configu-ration: 9N12P

Stator Diamter: 8mm

Stator Length: 2mm

Shaft Diameter: Φ1.0

Motor Dimension (Dia.*Len) : Φ10.5*14.5mm

Weight: 2.7g
Support 1-3S Lipo


Propeller
40mm 4-blade Propeller ( 4 CW + 4 CCW)

5.8G 40CH 25-200mW VTX

Output power: 25~200mw switchable

Frequency: 40CH

Input voltage: 3.3V 5.5V

Current consumption: 300mA(type)

Antenna: RG178 antenna

Frequency: 5.8GHz 5bands 40 channels

With Raceband

Smartaudio ready

Weight: 3g

CADDX Turtle V2 Camera



Image sensor: 1/2.7" CMOS sensor

Horizontal: 800TVL

TV system: NTSC/PAL changeable

Video Resolution: [email protected] / [email protected] / [email protected]

Power Input: DC 4.5-20V

FPV FOV: 155°

Recording FOV: 170°

Mini Illumination: 0.01lux

Image Resolution: 2 Megapixels

Lens: 1.8mm Turbo Eye Lens

Working Current: [email protected]/[email protected] (low consumption)

OSD Menu: Yes (Support Voltage Display)

Video Files: MP4

Audio: Support

Electronic Shutter : PAL : 1/50-100,000 NTSC : 1/60-100,100

S/N Ratio: >60dB (AGC OFF)

Video Output: CVBS

Max Micro SD Card Supported: 8-64GB(need Class 10 or above, recommend Class 10/UHS-I/UHS-II)

Color: Red

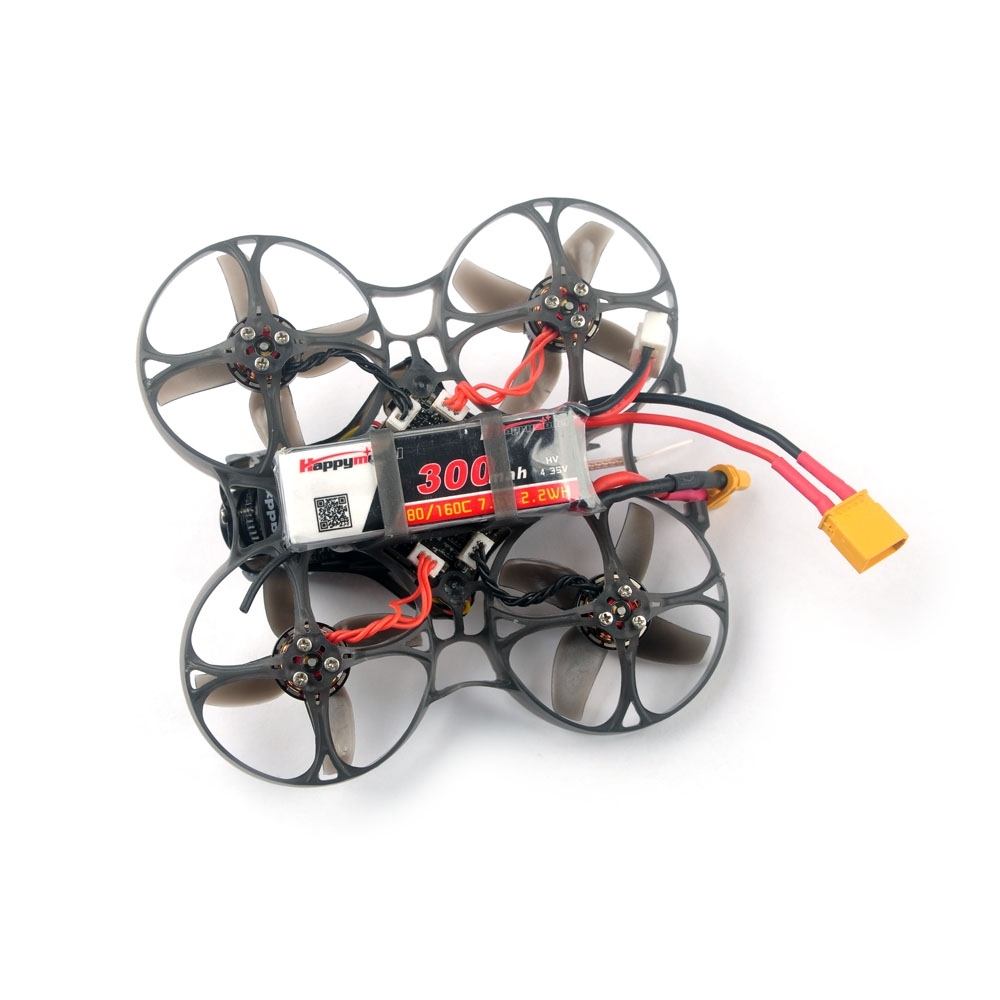

Lipo Battery

Capacity:300mAh

Voltage:11.4v

Continuous Discharge Rate: 30C

Instantaneous discharge rate: 60C

Size: 65mmx18mmx11mm

Weight: 23g

Connector: XT30



Features:

- New Crazybee F4 PRO V2.0 AIO Flight controller 1-3s Lipo Compatible

- 2S for indoor Cine whoop mode

- 3S for outdoor Freestyle whoop mode

- Betaflight support , multi flight mode: ACRO/AIR/ANGLE

- The lightest 1102 brushless motor only 2.7g with double ball bearings

- Powerful and smoothly

- Betaflight OSD support ,easy to get RSSI, Voltage ,current from your goggles(DSMX version no RSSI output)

- Caddx turtle v2 + 1080p 60fps DVR ready

- Camera Angle adjustable

- VTX power switchable 25mw~200mw

- Smartaudio ready , change VTX bands, powers, channels via OSD

- Frsky Non-EU version support NON-EU Frsky transmitter D8/D16 compatible

- Flysky version support both AFHDS and AFHDS-2A protocol transmitter

- DSM2/DSMX version support DSM2 and DSMX compatible Spektrum transmitter

- No RX version support external serial-bus receiver like xm+, crossfire, S-FHSS etc..

- Full telemetry function ready (Frsky Non-EU and Flysky version support)

- Special Breath light ready

- Real Bind and Fly version

- Compatible both for 2s-3s Lipo/LIHV


Package Included:

1x Mobula7 HD 75mm FPV Drone

4x 40mm 3-Blade Propellers ( 4 CW & 4 CCW)

1x 3S 11.4v 300mah 30C/60C battery

1x Propeller Disassemble Tool

1x Screwdriver



Available soon here: BangGood
