F40PRO II - T-MOTOR 2018 year race motor

25-01-2018

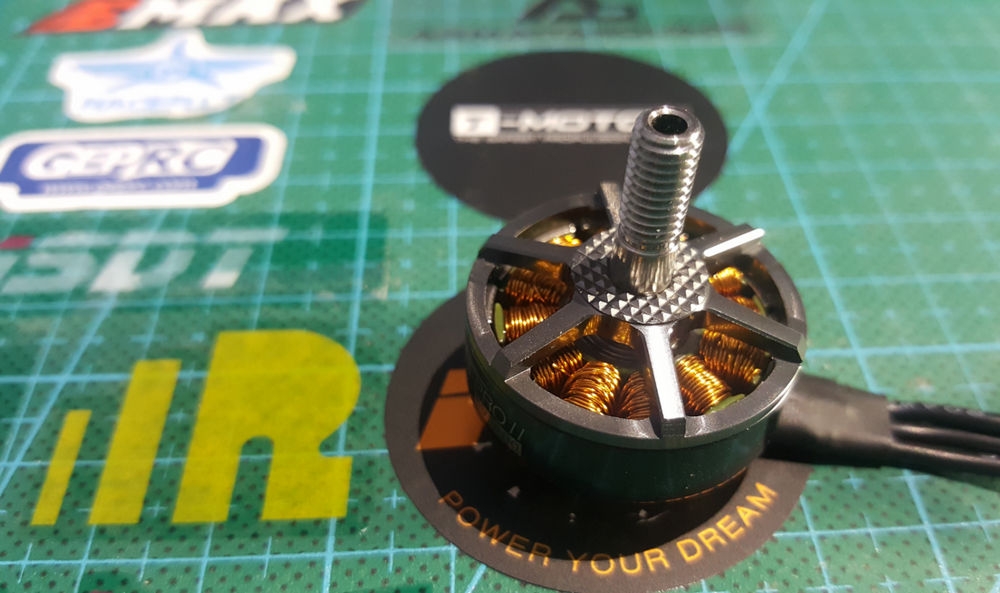

The Tiger Motor F40 PRO II Motor has been designed and built specifically for FPV Racing.

Coming in at only 29.5g, including wires, the F40 PRO II is very light for the power it can dish out. Another amazing feature are the high temperature silver core windings.

These winding's are able to withstand much higher temperatures than conventional winding's. Additionally, the top of the stater has an anti-slip design that keeps your props stable during high intensity flights.

The F40 PRO II comes in three different colors to fit your build. Each color has three different KV options so you can opt for efficiency or pure speed.

This motor at this time is our choice for 2018 year as a main "race motor"!

Now available here: https://api.racer.lt/6jao





SPECIFICATIONS

  • KV: 1600
  • Configuration: 12N14P
  • Shaft Diameter: 4mm
  • AWG: 18#
  • Internal Resistance: 42mΩ
  • Motor Dimensions (Dia.*Len): Φ27.9×32mm
  • Weight with wires(g): 29.5g
  • Weight without wires(g): 27g
  • ldle [email protected](A): 1.6A
  • No.of Cells(Lipo): 3-4S
  • Cable length: 100mm

INCLUDED

  • 1x F40PRO II 1600Kv Motor
  • 1x Prop Locknut
  • 4x Socket Head Screws




Get yours here: https://api.racer.lt/6jao
