GEP – LSX5 - Stretched LeoPard'o (GEP-LX)

04-07-2017

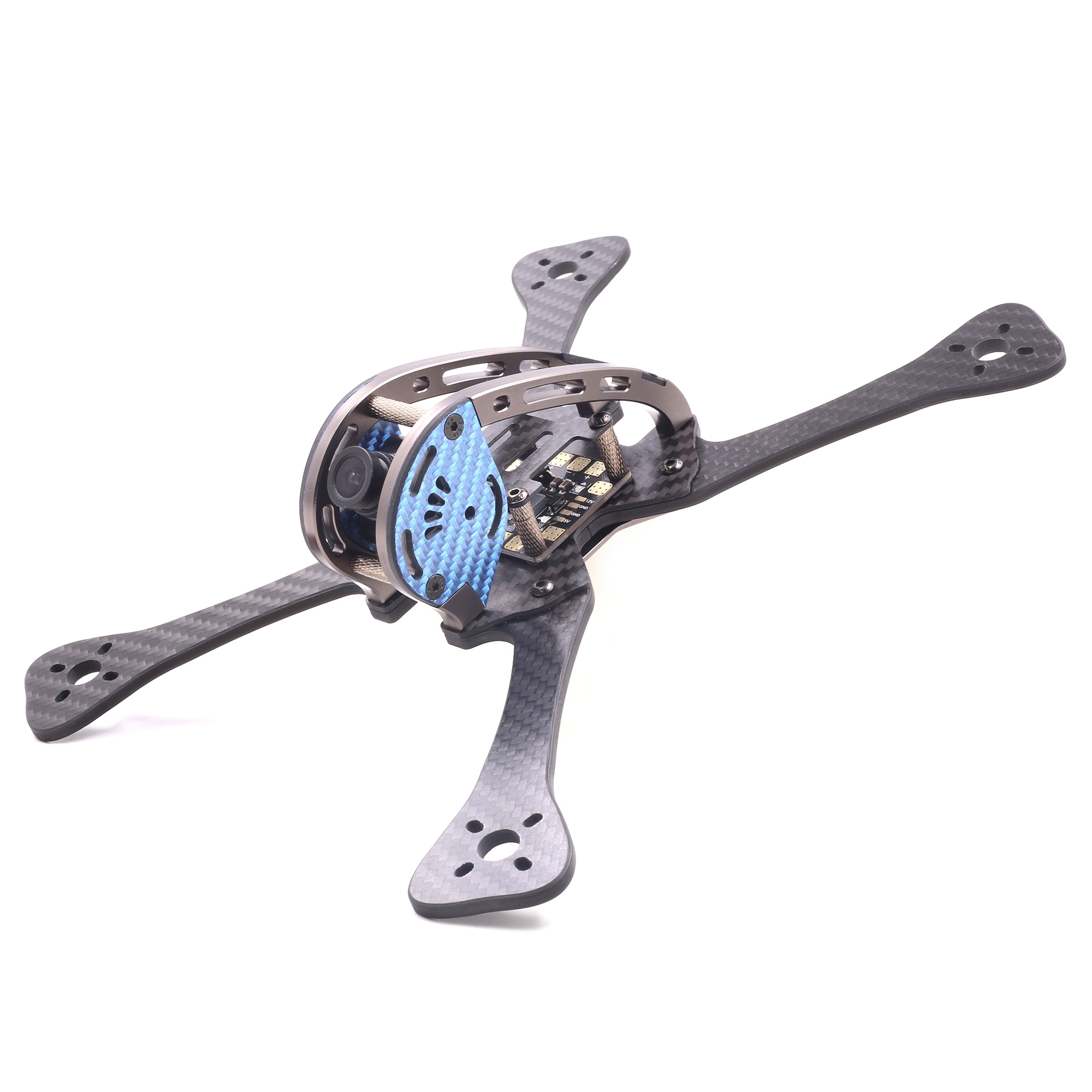

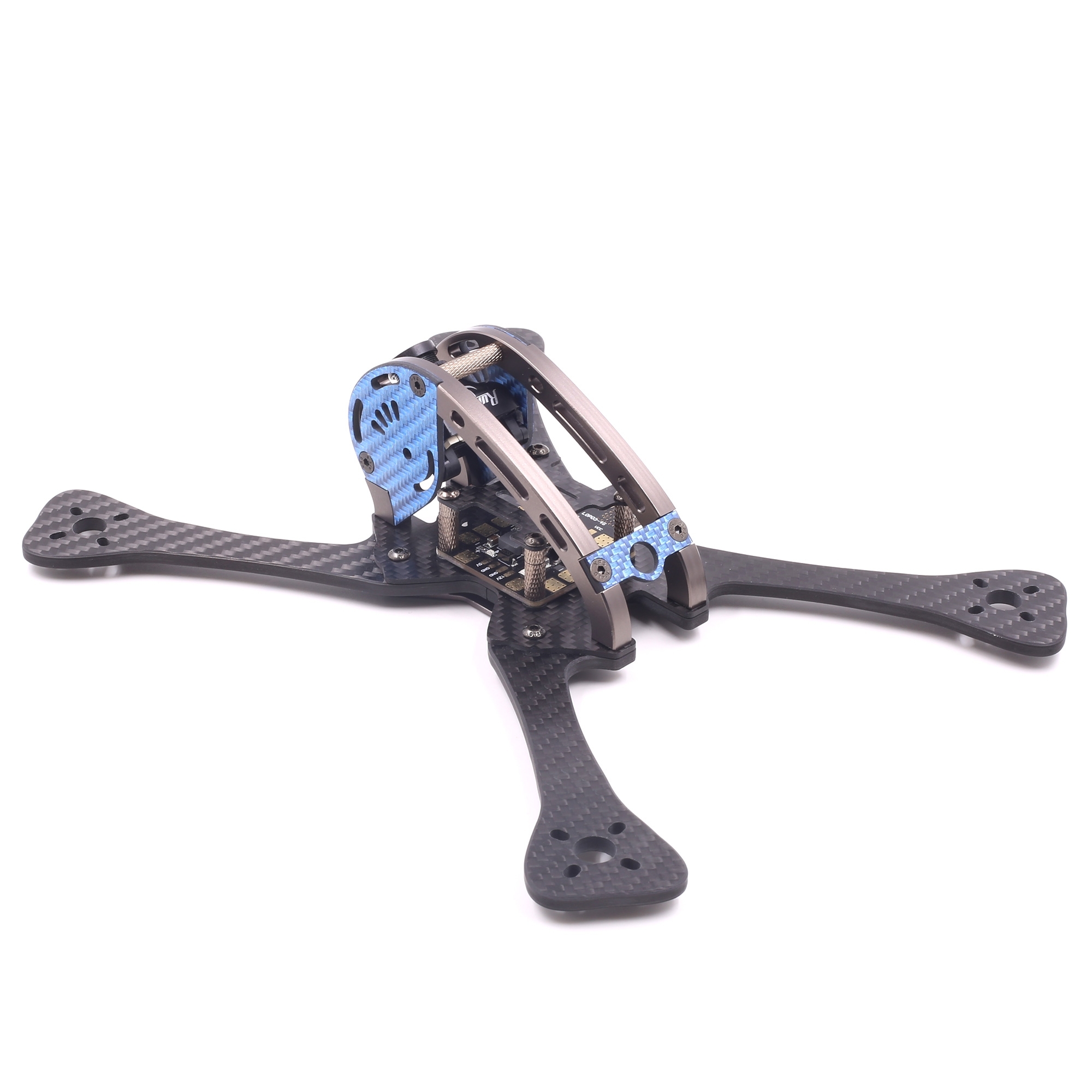

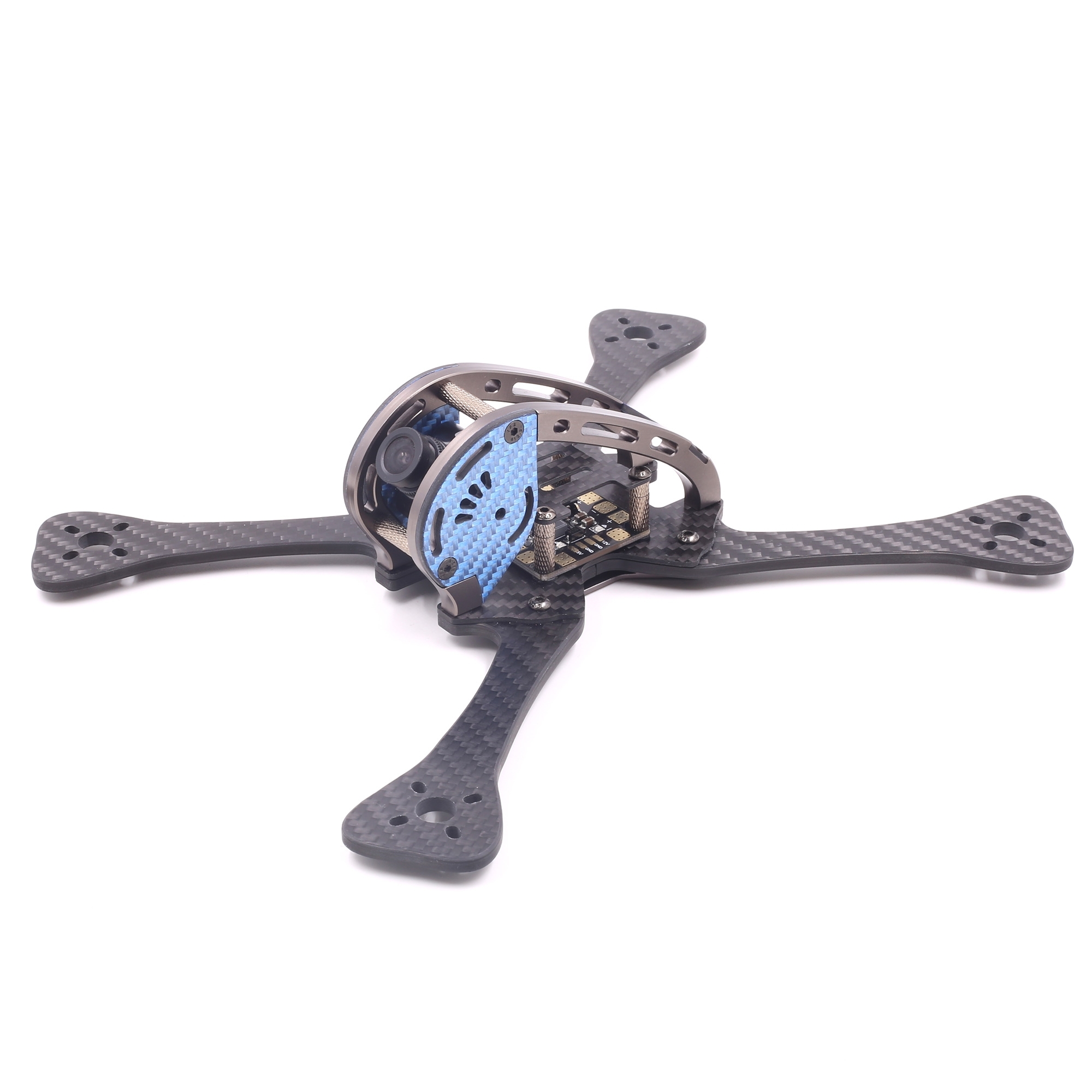

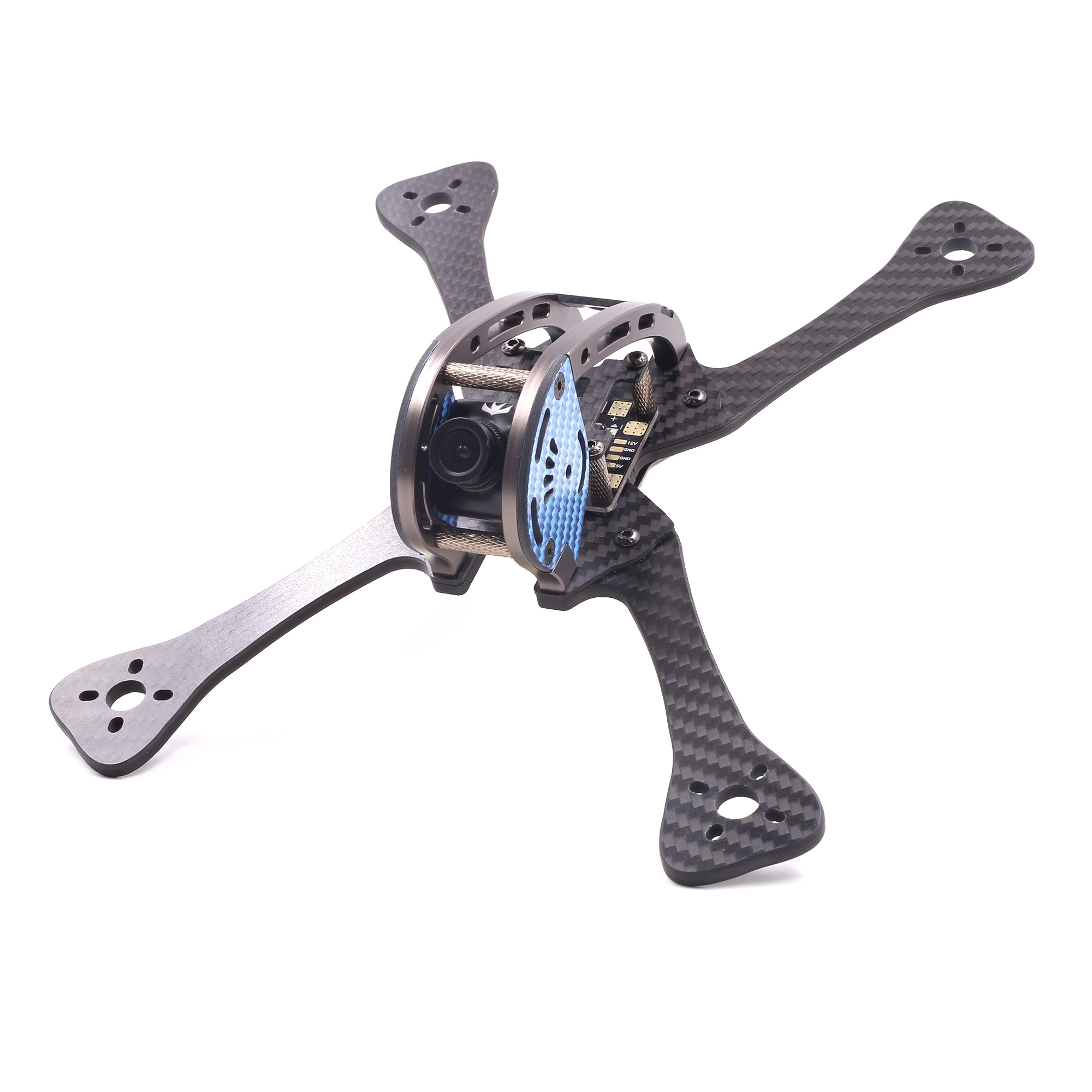

This is GEP – LSX5, Leopard(GEP-LX) derivatives, ‘S’ mean is stretching. This is more suitable for competition. High-speed forward flight and rapid roll have more advantages. GEP-LSX respectively with three kinds of specifications.GEP-LSX4 wheelbase 205 mm, suitable for 4inch propeller. GEP-LSX5 wheelbase 230 mm, suitable for 5inch propeller, GEP-LSX6 wheelbase 265 mm for 6inch propeller.










The leopard, natural predators, running at a staggering rate

This is GEP – LSX5, Leopard(GEP-LX) derivatives, ‘S’ mean is stretching. This is more suitable for competition. High-speed forward flight and rapid roll have more advantages. GEP-LSX respectively with three kinds of specifications.GEP-LSX4 wheelbase 205 mm, suitable for 4inch propeller. GEP-LSX5 wheelbase 230 mm, suitable for 5inch propeller, GEP-LSX6 wheelbase 265 mm for 6inch propeller.

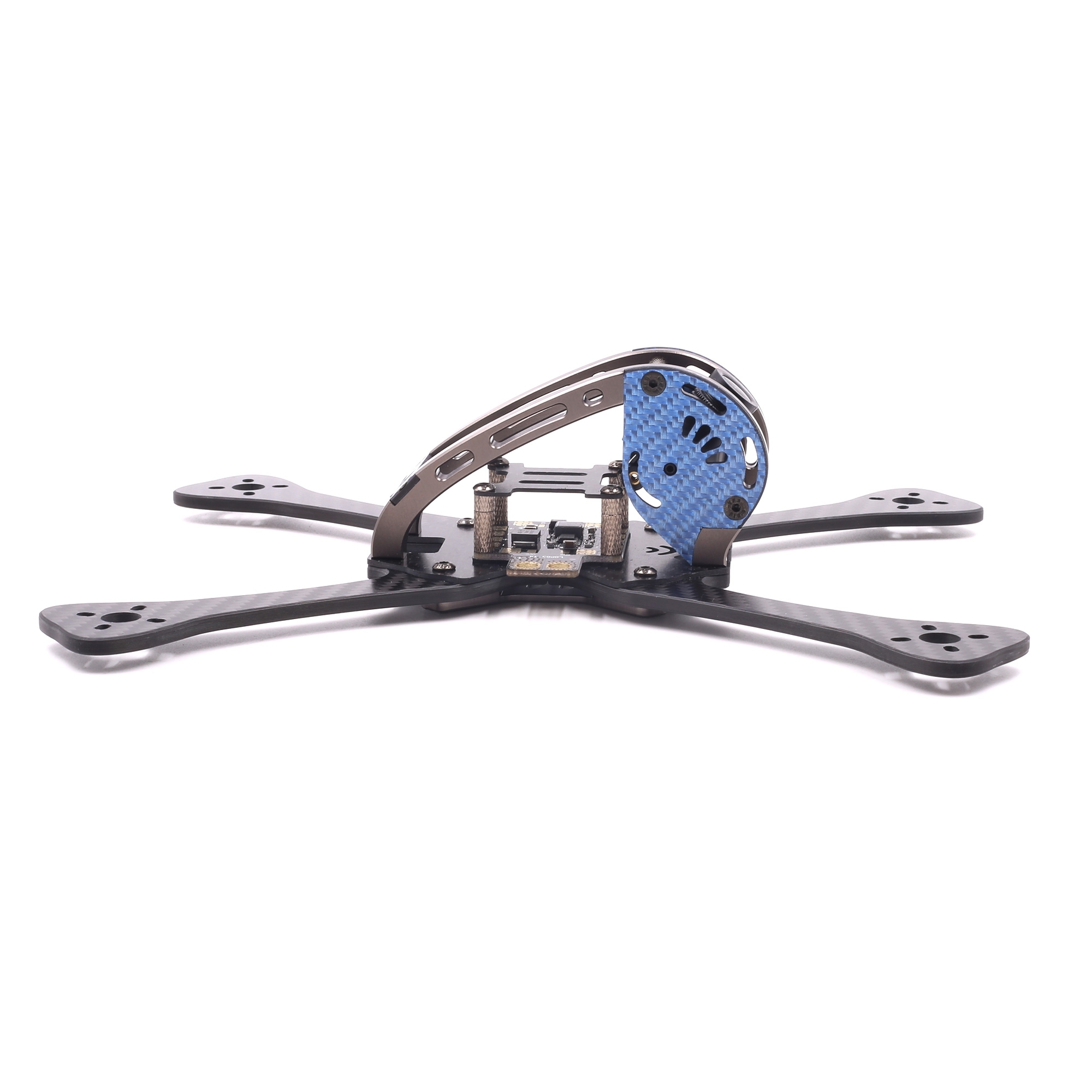

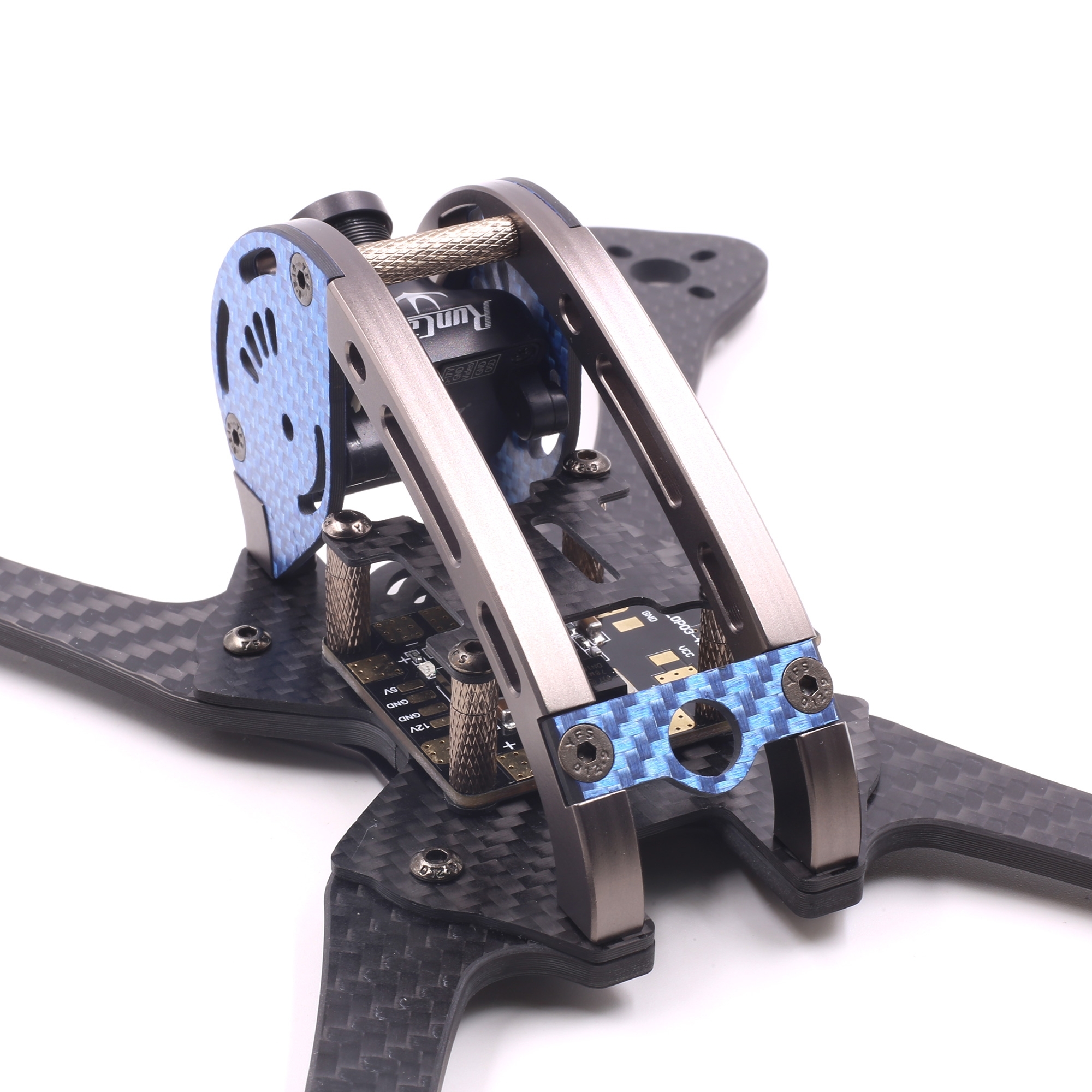

The frame use 3k ultra-light carbon plate + Aviation aluminum # 7075 body. To strengthen the four arm, we also design a fixed four arm of the aluminum alloy parts, it is not easy to make the machine arm shift.

We also equipped with A piece of PDB, take BEC output 5 v 3 A and 12V 0.5A.The frame all adopt the YFS screws, 12.9 magnitude

Specifications:

Name:GEP-LSX5
Weight:114g
Wheelbase:230mm
Props Size: 5inch
Size:178*222mm
Arms board:4mm
Side board:2mm
Other board:1.5mm


Recommended:

Flight Controller:F3 /F4/Naze32/ CC3D
Motors: 2204/2205/2206/2305/2306
ESC:20A-30A
Propeller:5inch
Battery: 3S 1300mAh ~ 4S 1800mAh

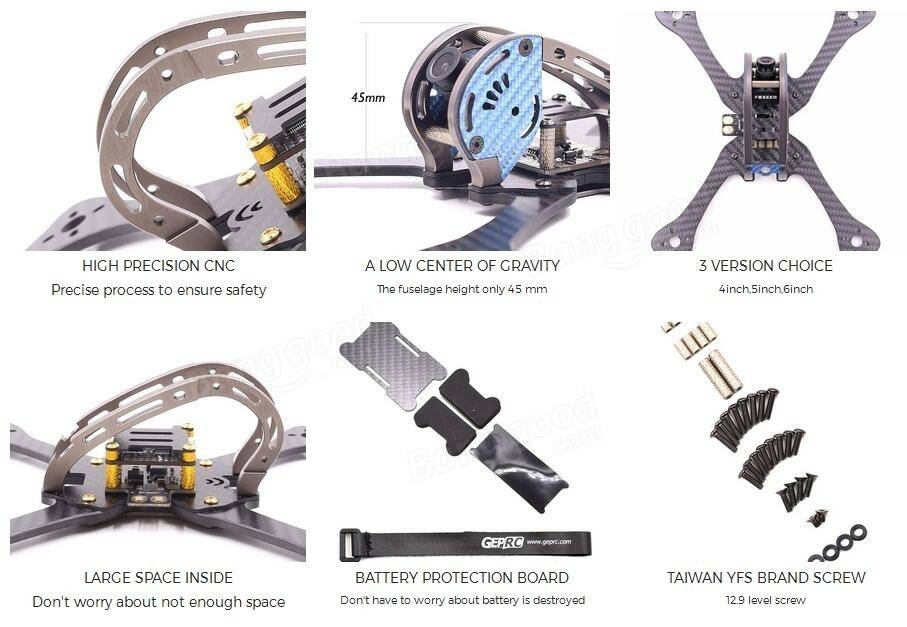

Features:

  1. Aviation aluminum # 7075 high-precision CNC fuselage, very strong resistance to blast
  2. 3K high strength carbon board to ensure that the frame is strong
  3. An aluminum alloy structure, binding the four machine arm will not shift
  4. The structure of SX, suitable for racing
  5. Reasonable gopro, runcam position, convenient video
  6. 5 mm wide, 4 mm thick arm design, small wind resistance coefficient
  7. 5 inch wheelbase 230 mm, 4 “wheelbase 205 mm, 6 inch wheelbase 265 mm, have wider air through
  8. The YFS screws, 12.9 level of hardness
  9. support HS1190 HS1170, Swift
  10. The motor position widened, home is not easy to hit the motor

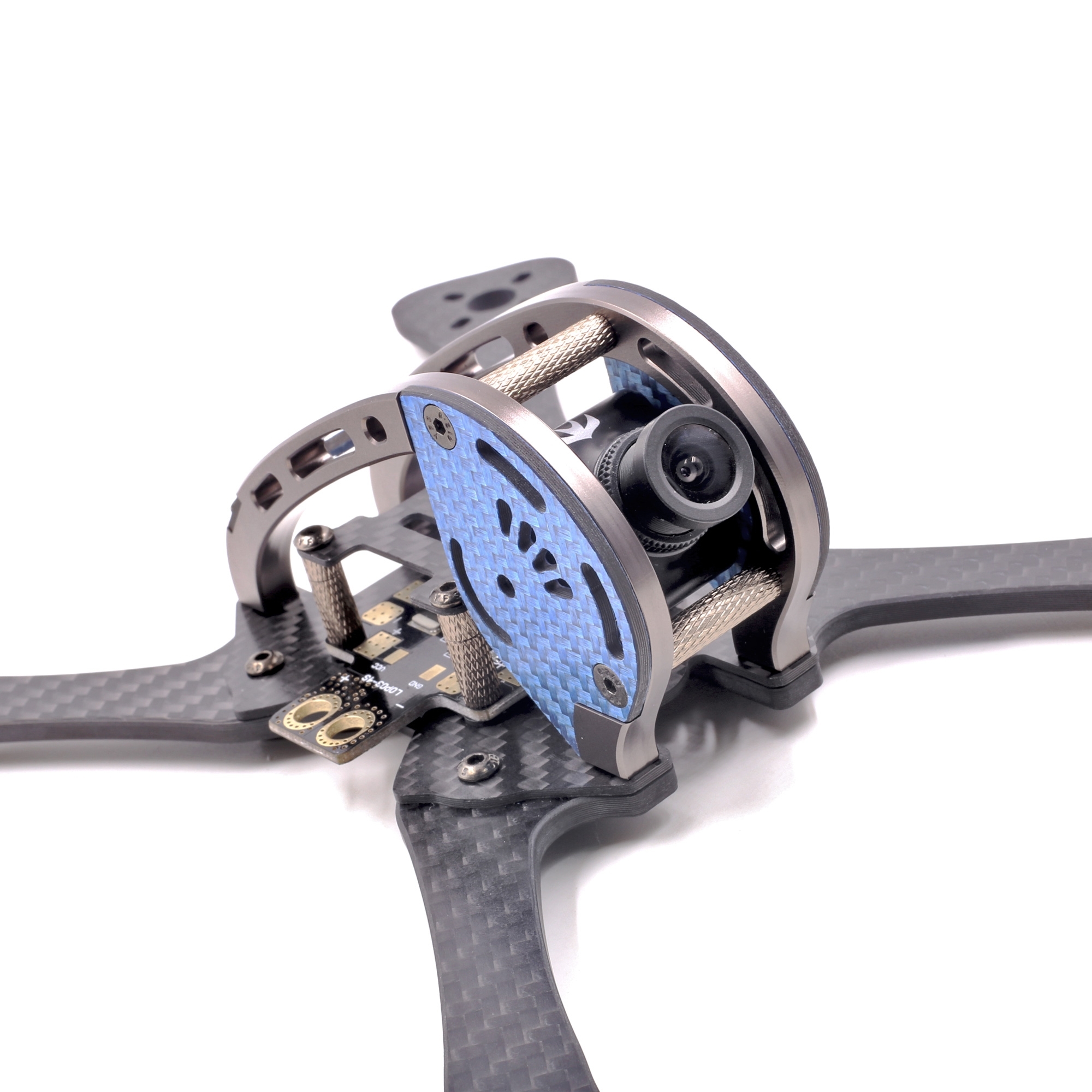

  11. The camera is adjustable, 0 to 60 degrees

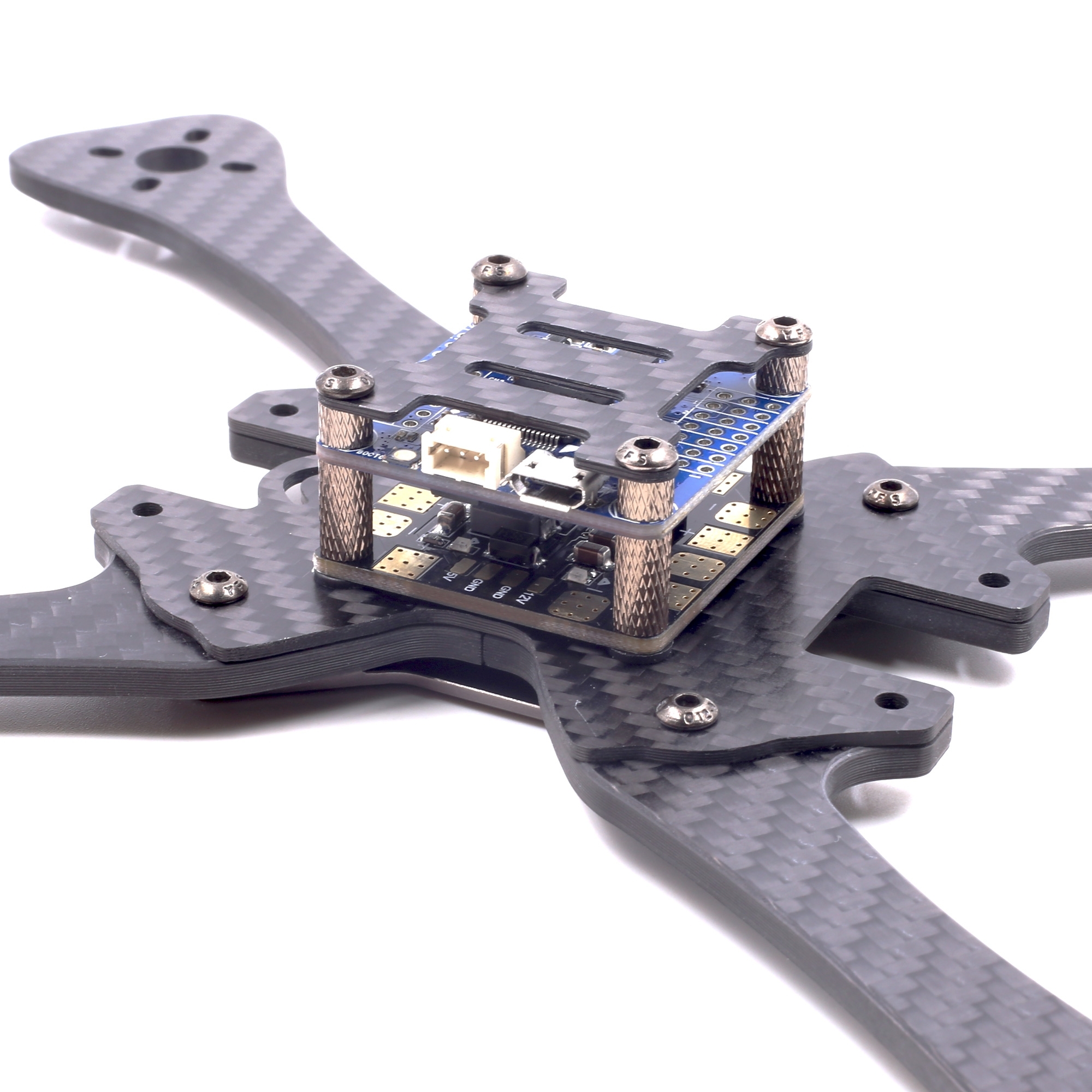

  12. With the kits: a piece of PDB panels, integrated XT60, BEC (5/12v output)

GEPRC GEP LSX4 LSX5 LSX6 205mm 230mm 265mm Carbon Fiber FPV Racing Frame with PDB Board

Specifications

Item model LSX4/LSX5/LSX6
GEP-LSX4 Weight: 109g
Wheelbase: 205mm
Props Size: 4inch
Size: 165*200mm
Arms board: 4mm
Side board: 2mm
Other board: 1.5mm

Recommend parts:
Motor: 2204/2205
Esc: 20A-30A
Props: 4inch
Battery: 3S 1300mAh~4S 1300mAh
GEP-LSX5 Name: GEP-LSX5
Weight: 114g
Wheelbase: 230mm
Props Size: 5inch
Size: 178*222mm
Arms board: 4mm
Side board: 2mm
Other board: 1.5mm

Recommend parts:
Flight Controller: F3 / F4 / Naze32 / CC3D
Motors: 2204/2205/2206/2305/2306
ESC: 20A-35A
Propeller: 5inch
Battery: 3S 1300mAh ~ 4S 1500mAh
GEP-LSX6 Name: GEP-LSX6
Weight: 123g
Wheelbase: 265mm
Props Size: 6inch
Size: 200*250mm
Arms board: 4mm
Side board: 2mm
Other board: 1.5mm

Recommend parts:
Flight Controller: F3 / F4 / Naze32 / CC3D
Motors: 2204/2205/2206/2305/2306
ESC: 30A-40A
Propeller: 6inch
Battery: 3S 1300mAh ~ 4S 1800mAh

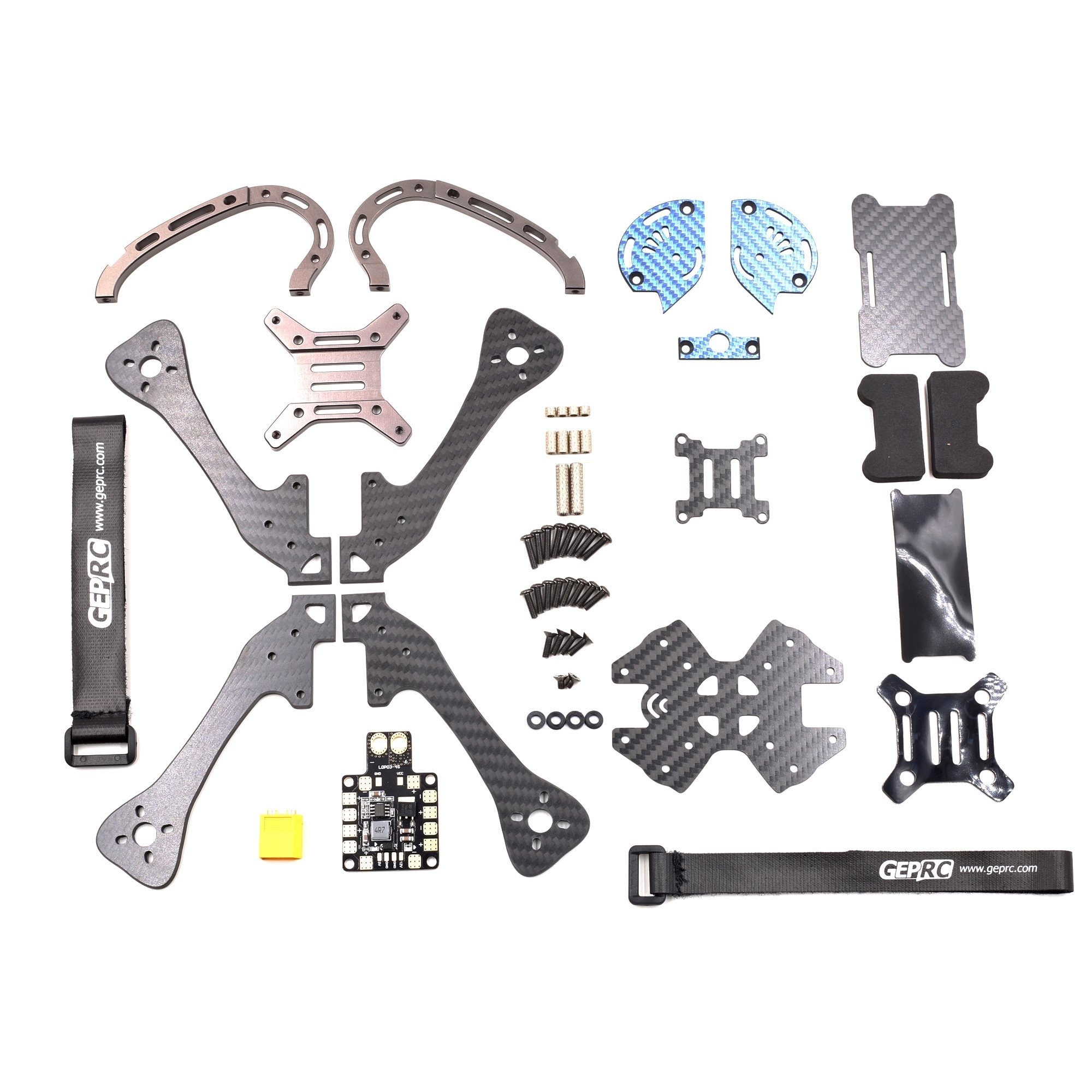

Package Included:



1 X Frame Kit
1 X PDB board

Get your's from BangGood.
