RunCam Swift Mini - small but powerful

17-03-2017

Mini PCB Super Quality Mini Size Super Strong Mini Lens Super FOV

Mini PCB Super Quality Mini Size Super Strong Mini Lens Super FOV

Mini PCB Super Quality Mini Size Super Strong Mini Lens Super FOV

People at Runcam did a great job, they took well known good Swift (later swift 2) and made it smaller – The Runcam Swift Mini.

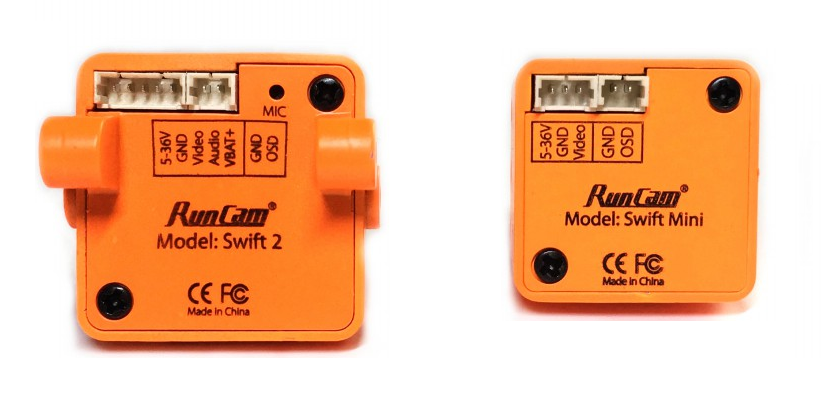

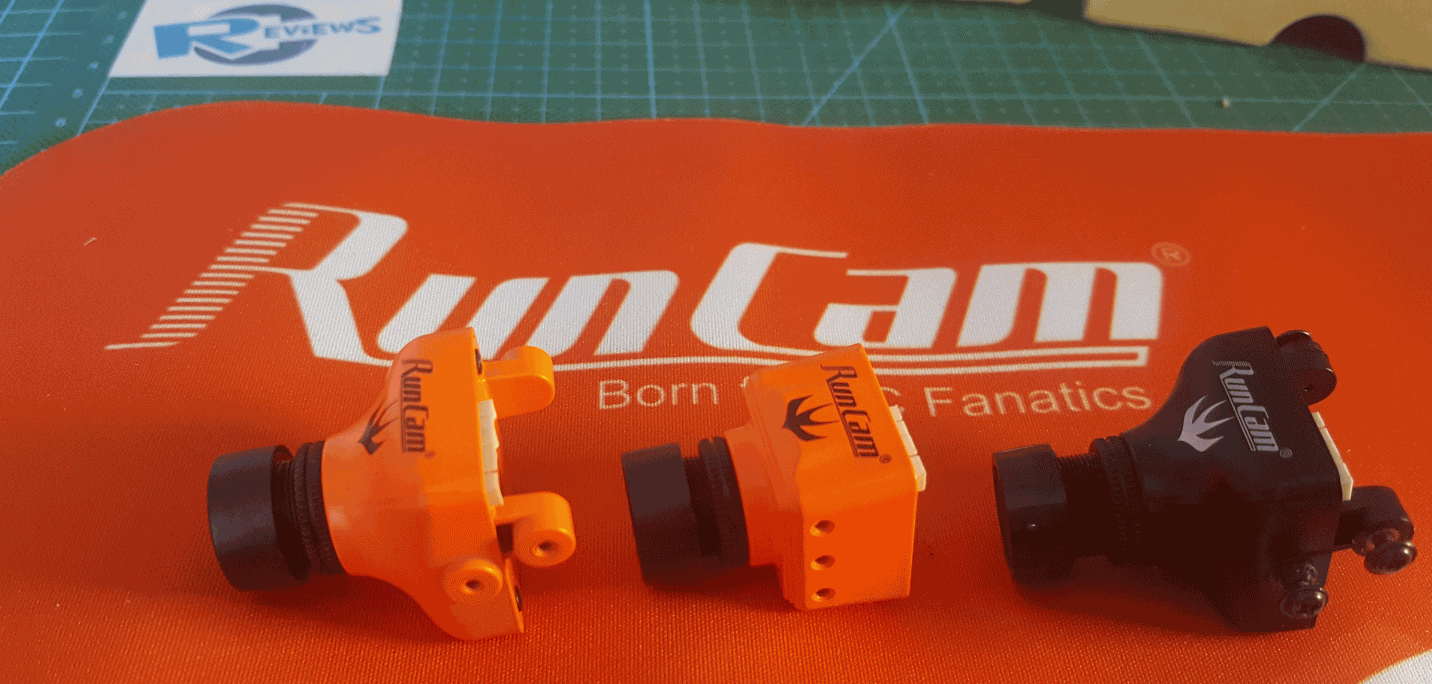

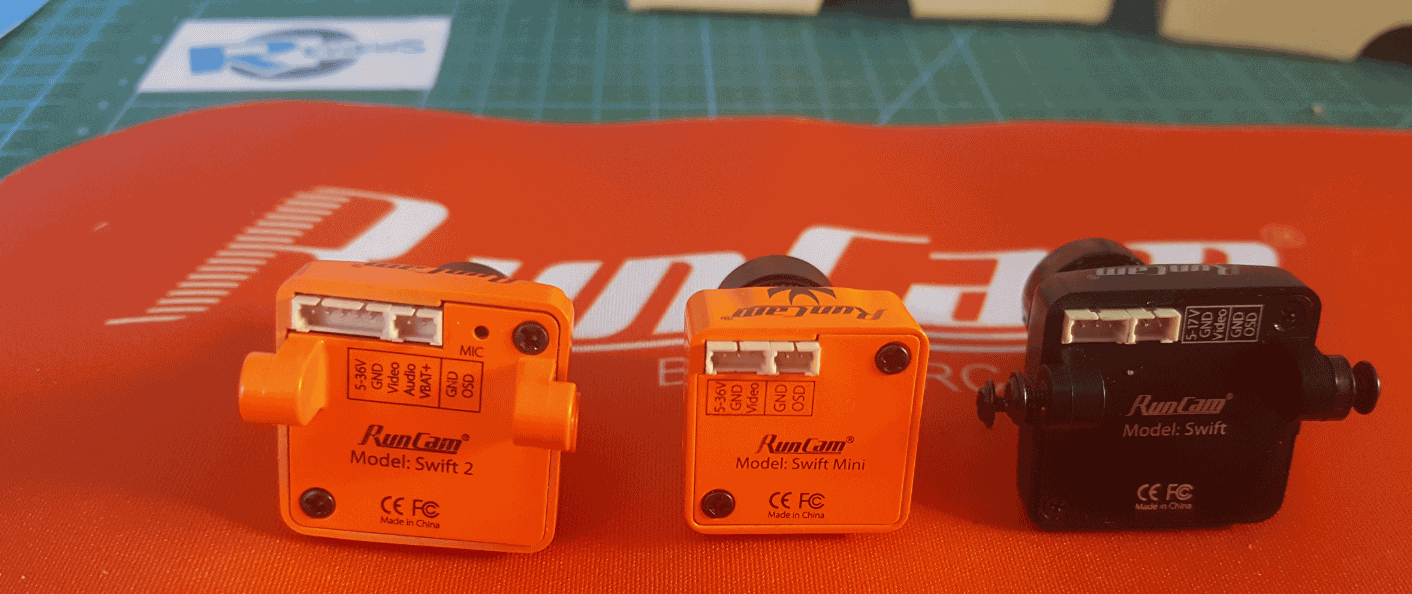

Compared to the Swift it’s considerably smaller, yet it managed to maintain the same image quality.

It’s designed for the 3″ mini quad (130mm - 150mm) market. Or small Wings or planes or even cars.

But you can use it with any other tight frames that requires smaller FPV cameras. Quality of new lenses is just superb, and more important it has very good WDR.

You can get it from BangGood, or GearBest or directly from Runcam.Com

Spec



  • Dimension 22.3 x 22.0 x 27.0mm (WxHxL).
  • Weights 12g
  • Voltage Input: 5 to 36V
  • 600 TVL
  • WDR

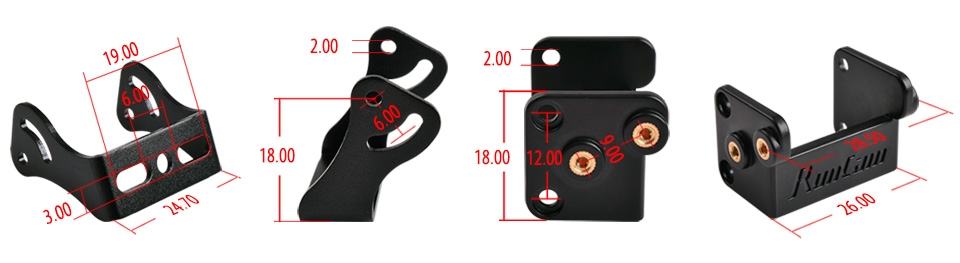

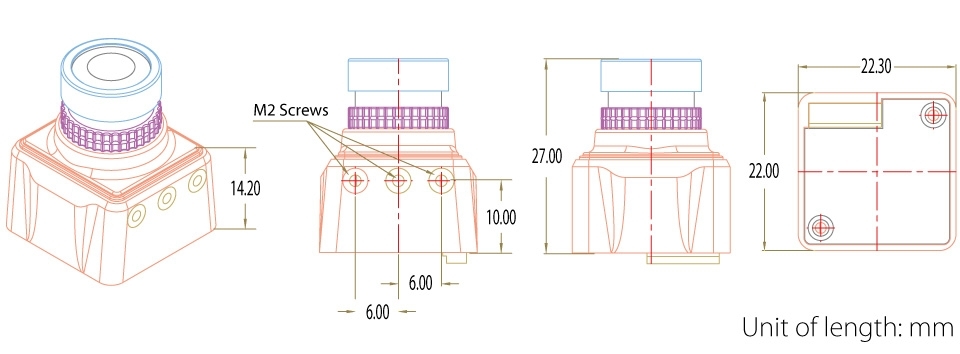

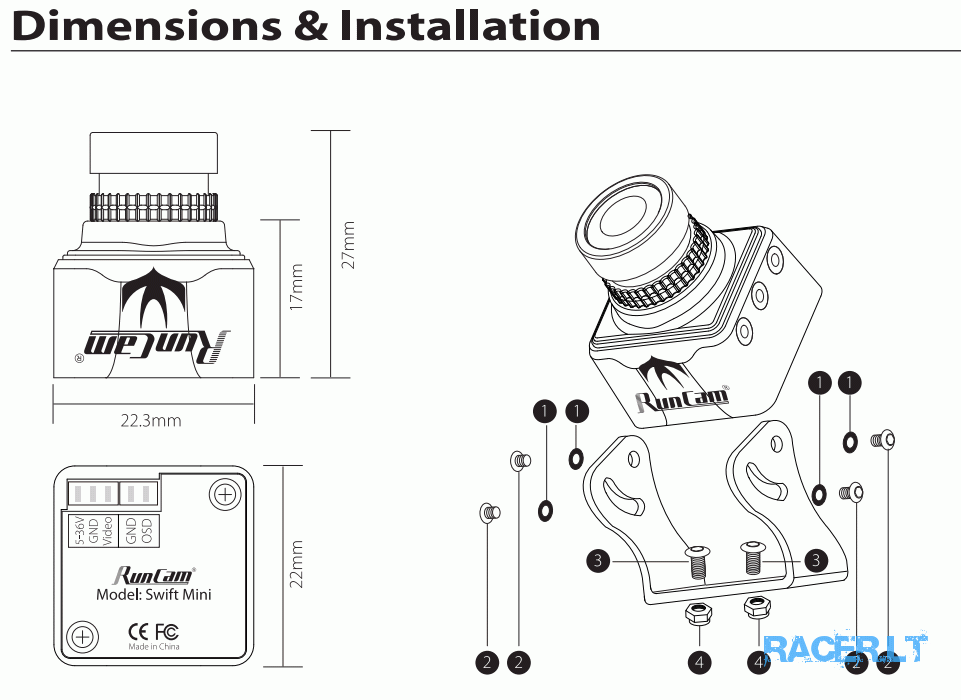

Dimension of the Swift Mini is 22.3 x 22.0 x 27.0mm (WxHxL). It weights 12.6g only. The mounting holes are for M2, distance between holes is 6mm.

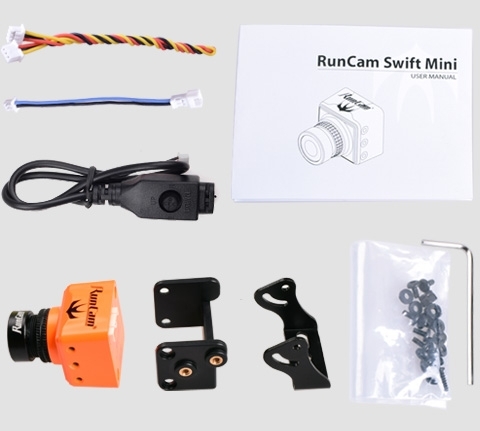

Contents in the box

  • 1x Camera

  • 1x Aluminum bracket

  • 1x ABS bracket

  • 1x Set of screws

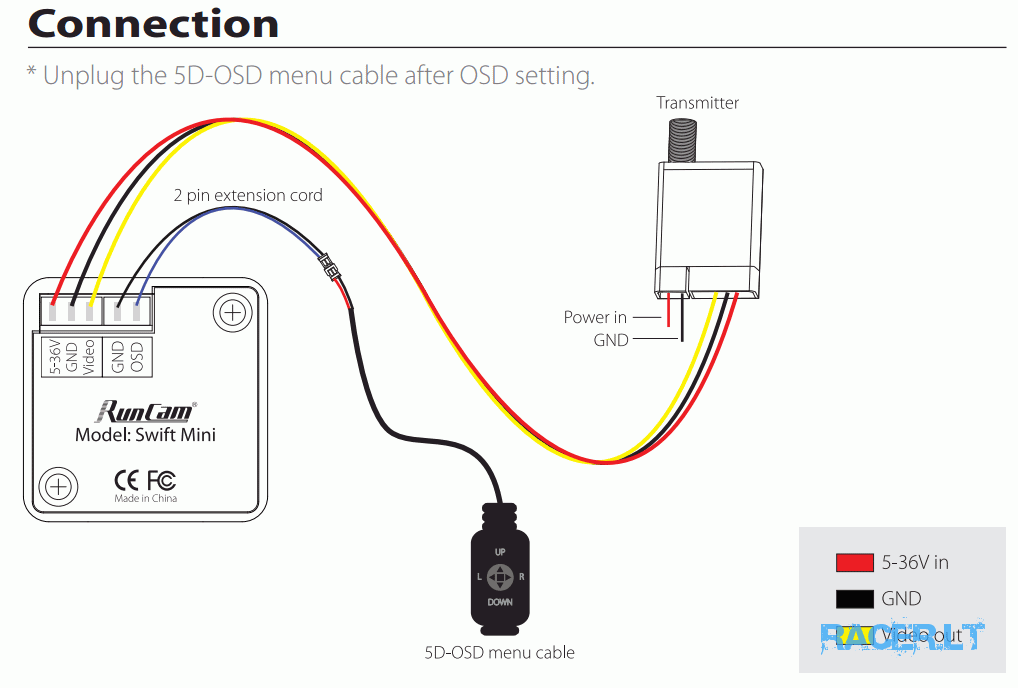

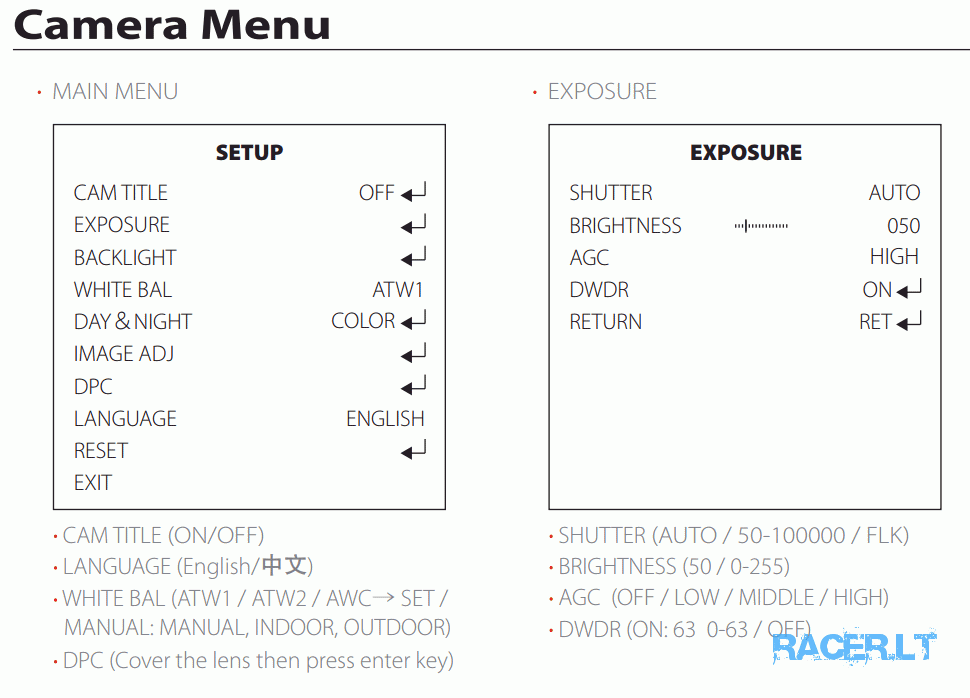

  • 1x 5D-OSD menu cable

  • 1x 3pin FPV silicone cable

  • 1x 2pin extension cord for menu cable

  • 1x Manual

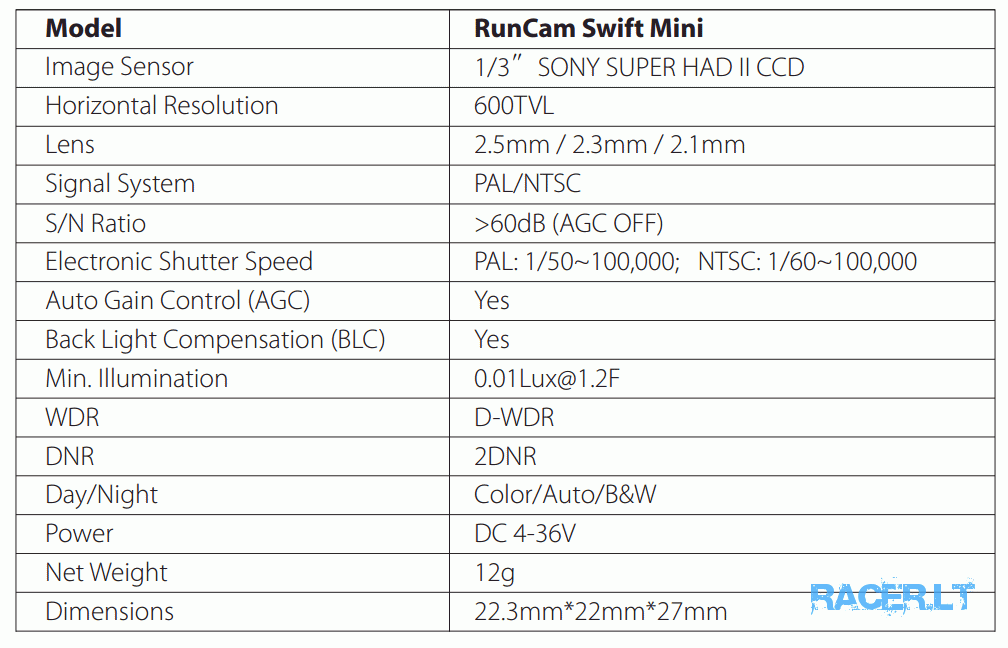

Model RunCam Swift Mini
Image Sensor 1/3" SONY Super HAD II CCD
Horizontal Resolution 600TVL
Lens 2.5mm / 2.3mm / 2.1mm
Signal System PAL / NTSC
S/N Ration >60dB(AGC OFF)
Electronic Shutter Speed PAL:1/50 ~ 100,000; NTSC:1/60 ~ 100,000
AutoGain Control(AGC) YES

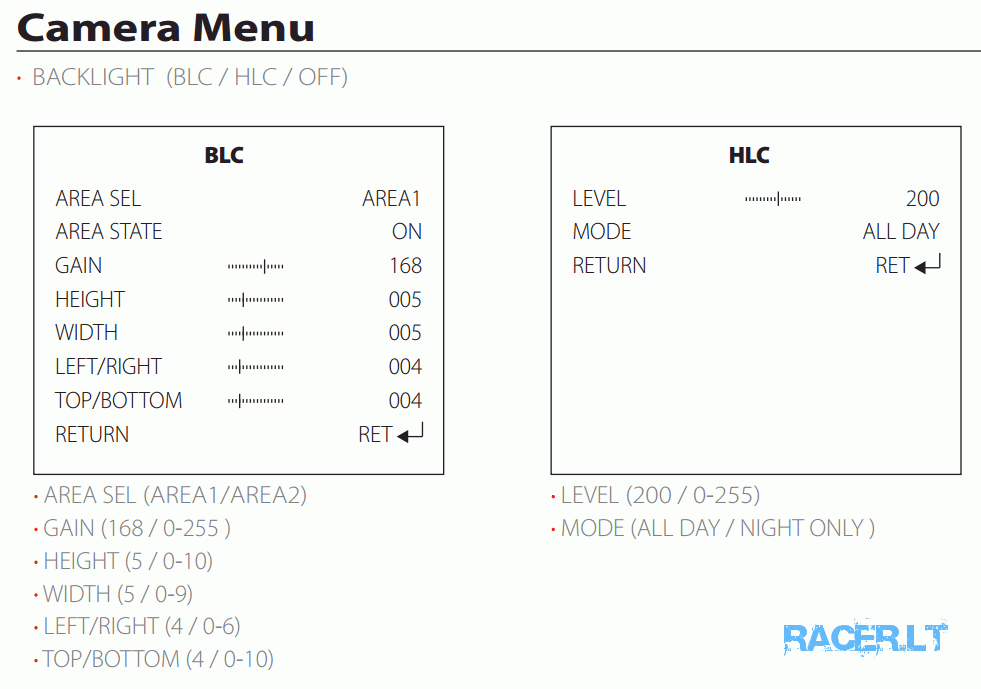

Back light compensation(BLC) YES
Min.illumination 0.01Lux/1.2F
WDR D-WDR
DNR 2DNR

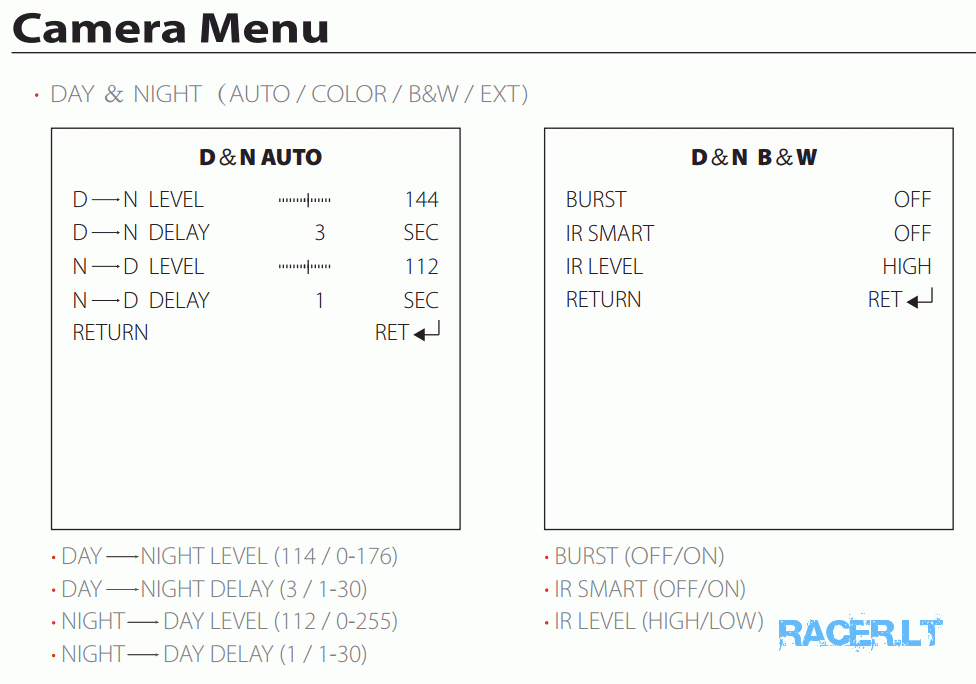

Day/Night Color / Auto / B&W
Power DC 5 to 36V
Net weight 12g
Dimensions 22.3mm * 22mm * 27mm

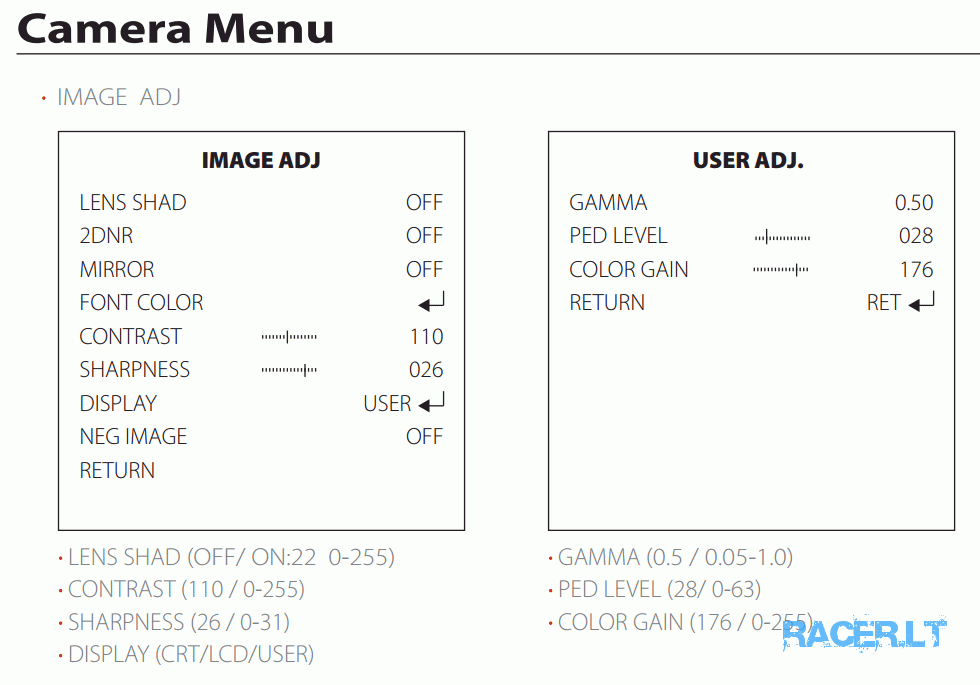

Download Manual Here

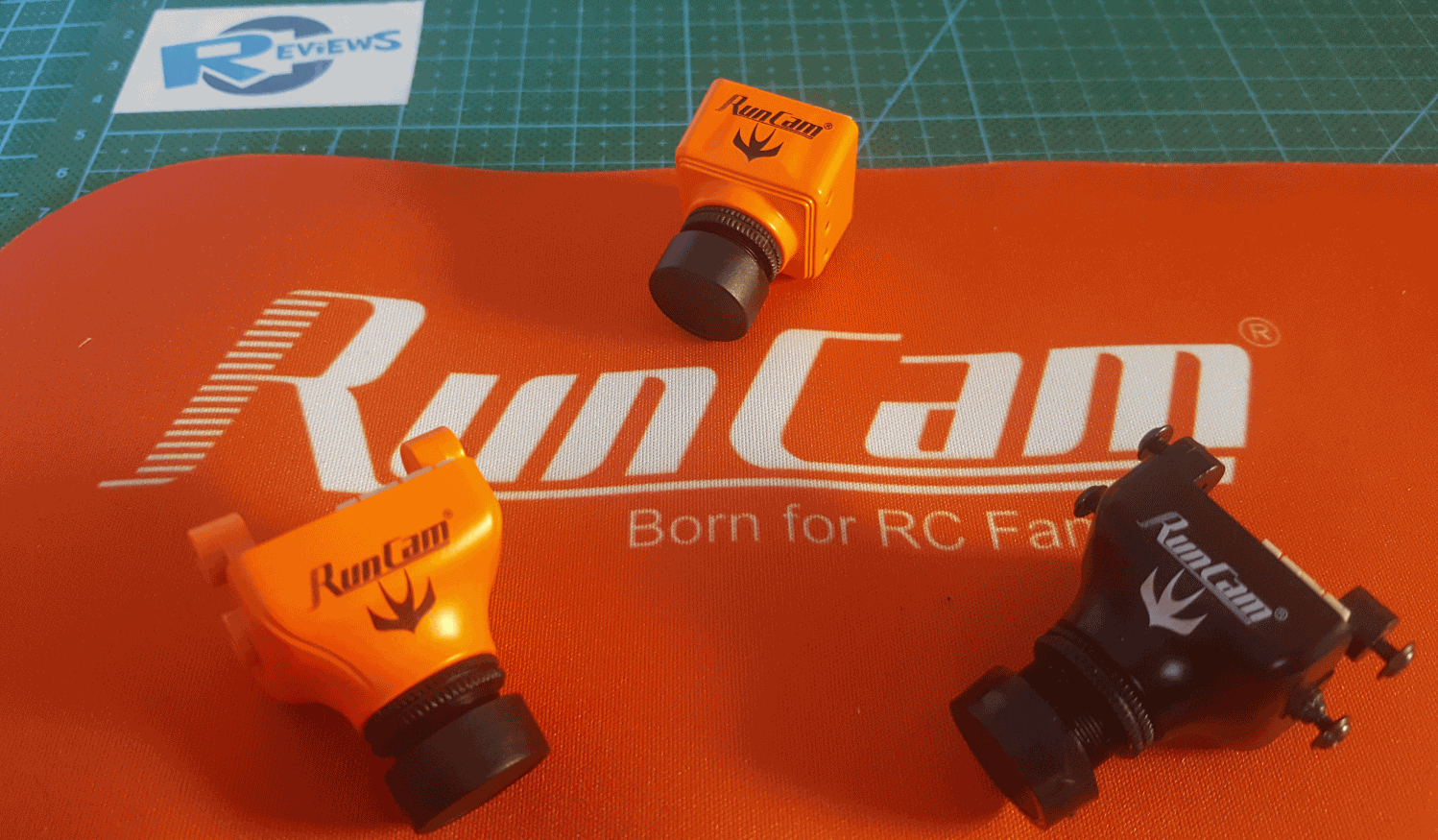

More pictures

You can get it from BangGood, or GearBest or directly from Runcam.Com
