Q6 Plus Pocket Charger - to save your batteries

21-02-2017

Next Generation Pocket Charger



All you need is any type of big battery with XT60 connector 7-32V.
This charger can charge up to 14A (300W) and with 1a per cell in ballance mode!
Perfect charger for everyday use.
Will save your battery if you discharged them after rough flight - just take extra battery and recover your last flight battery!

You can find it here: http://api.racer.lt/qZwd
Also available discount coupon for 15% discount: Q6Plus
Other ISDT super chargers http://api.racer.lt/qZwe
You'll need and Firmware upgrade data cable http://api.racer.lt/qZwf
As firmware is regularly updated.

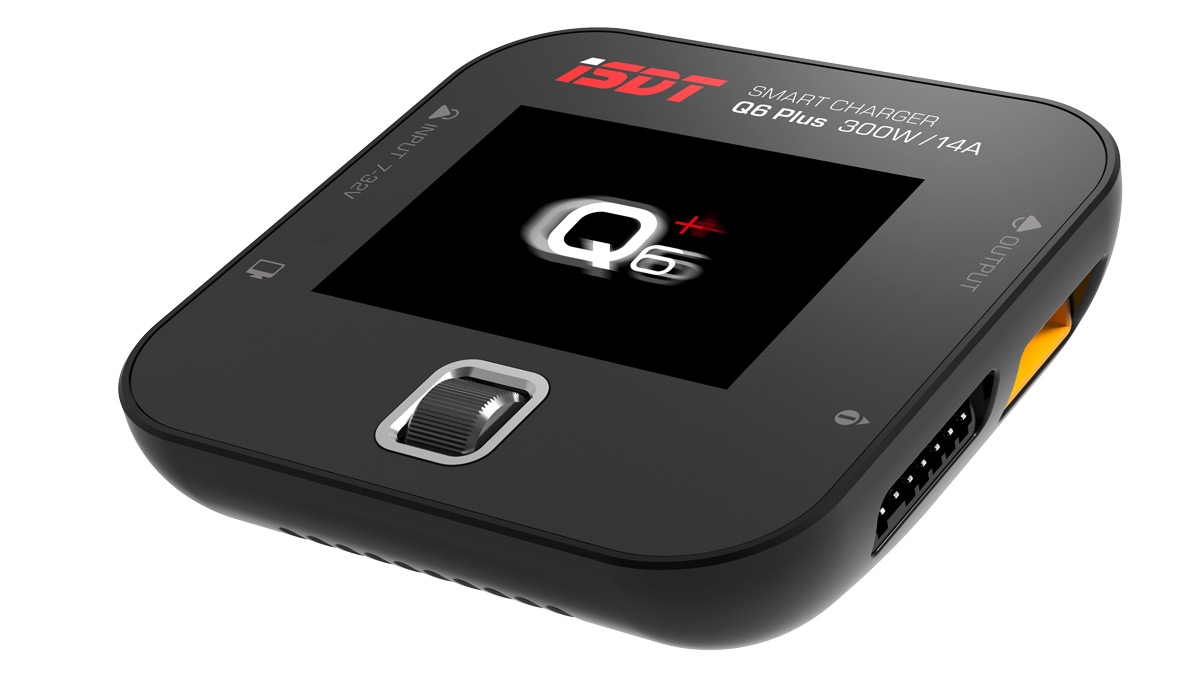

Double up the power capacity, thinner, lighter

Brand new ISDT Q6 Plus with rounded edge design easily stows in bag or pocket. Same size as the SC-608 charger with twice the power capacity.

Q6 Plus

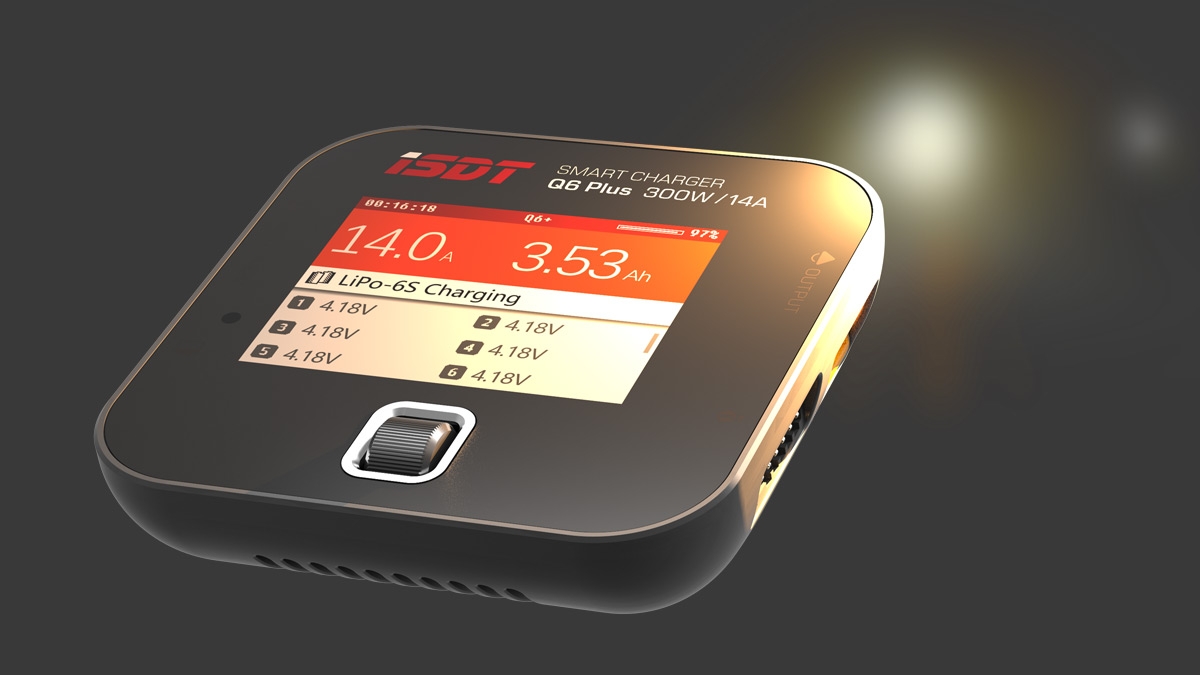

2.4″ IPS Display

up to 178° visible angle, auto-brightness screen, still visible under strong sunlight.

Q6 Plus

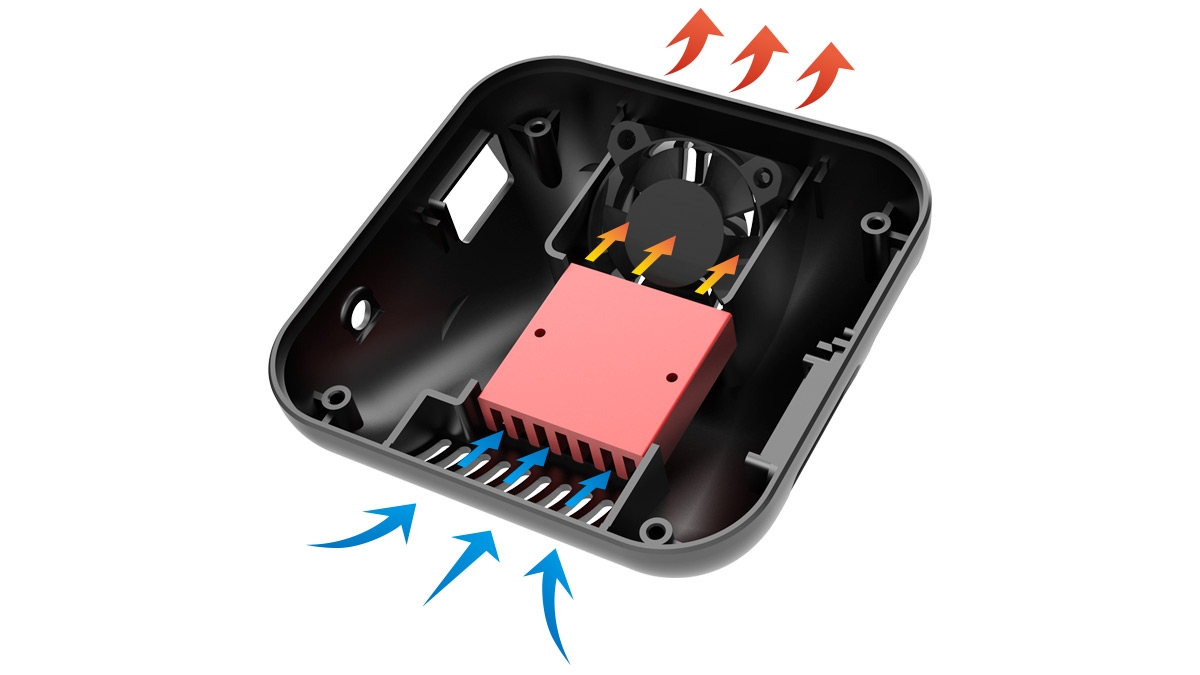

Highly optimized internal construction with higher cooling efficiency.

Higher speed and efficiency synchronous Digital Power Supply Technology.
High speed ball-bearing fan promotes active cooling increase by 300%, even though the size has been reduced by 50%.

Q6 Plus

Outstanding performance from every perspective

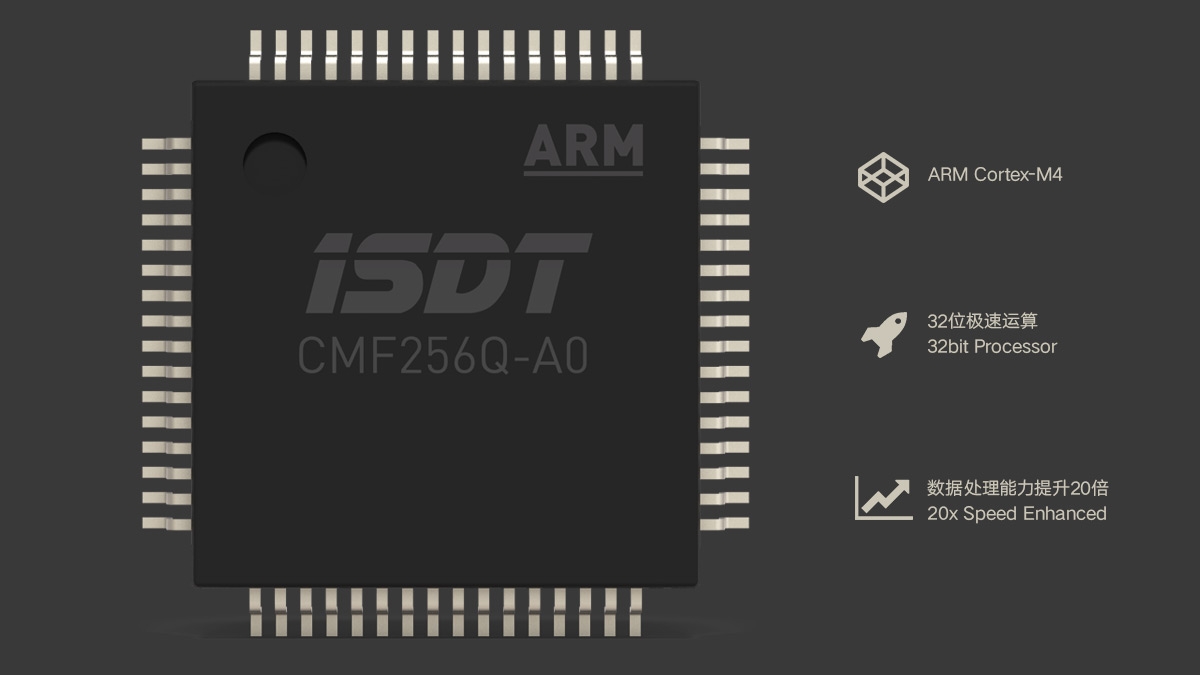

ARM 32bit high speed Processor

Q6 Plus

Instant boot (within seconds) when initialized

After the depth of optimization scOs,Instant Boot, only a few seconds

Q6 Plus

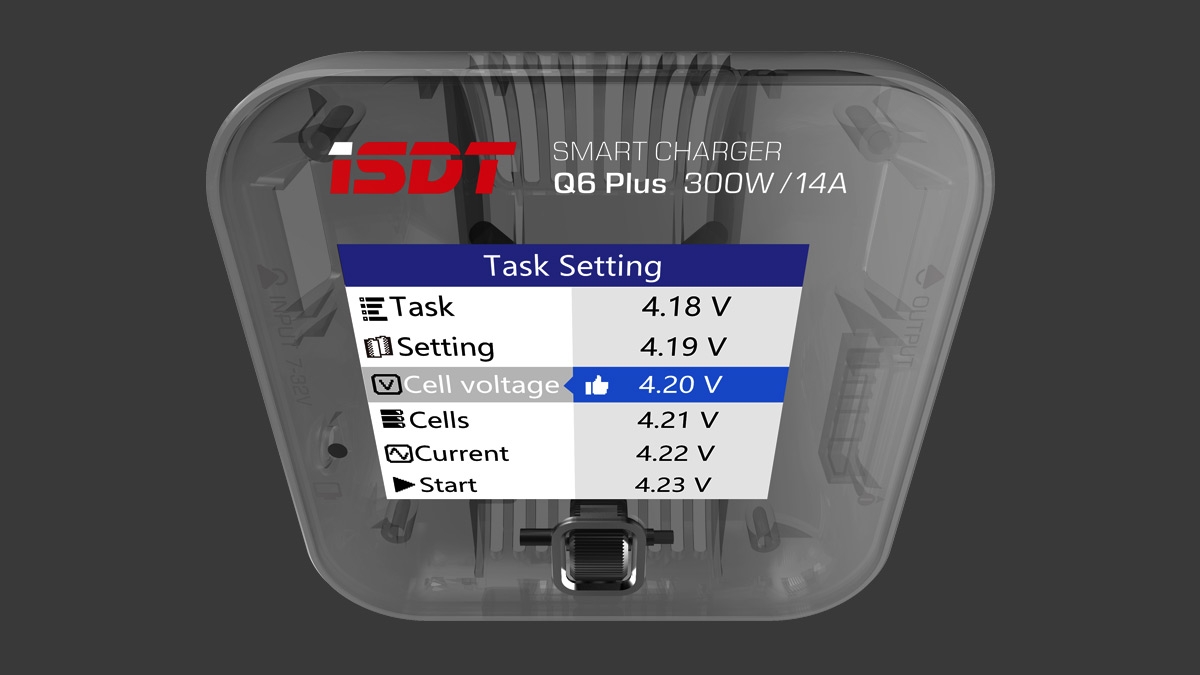

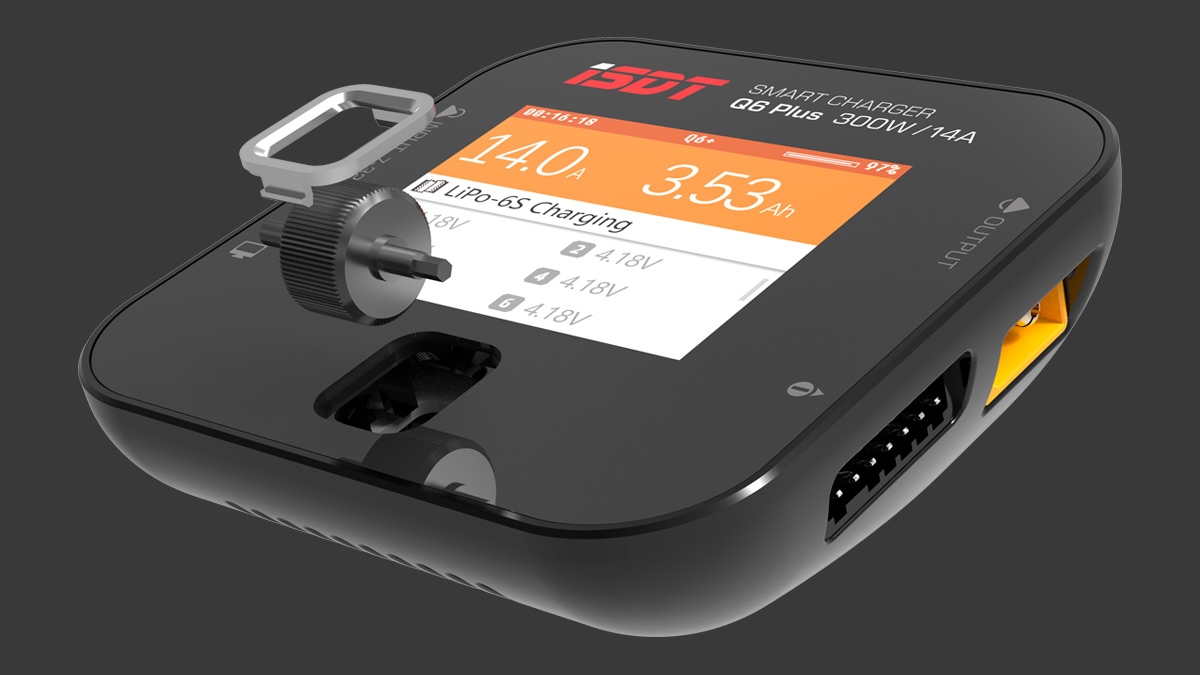

One key shuttle control

One key metal shuttle control replaces the multi-button press operation, makes charging with the Q6+ a delightful experience.

Q6 Plus

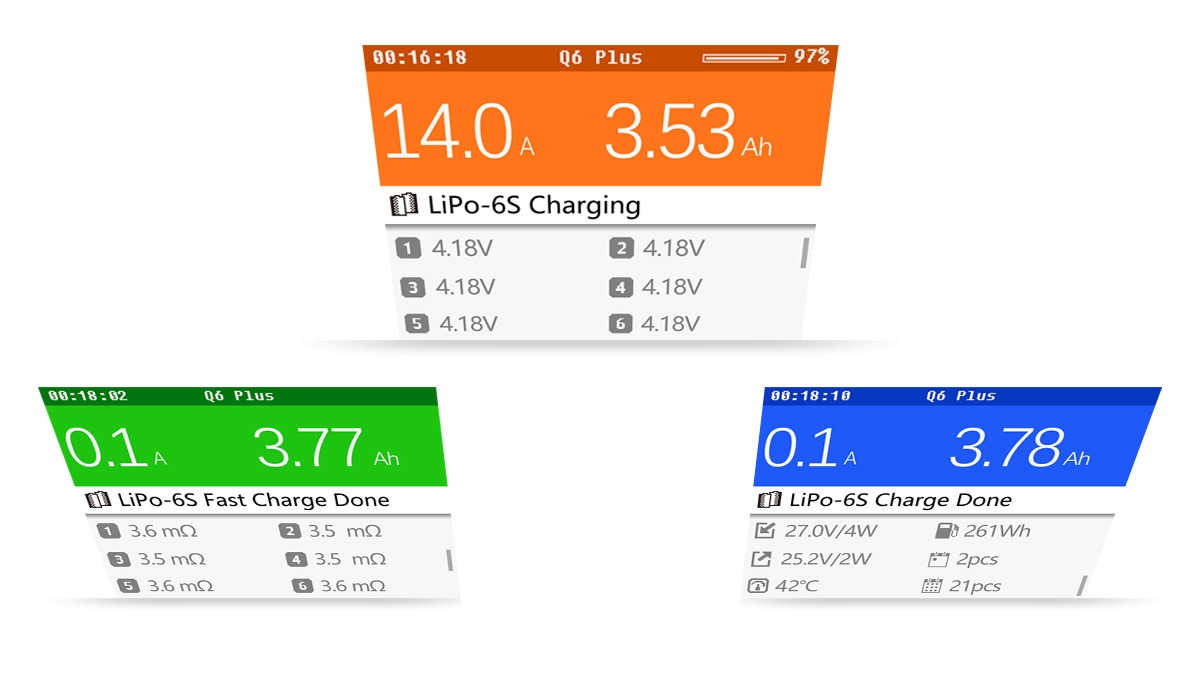

scOs Specially designed for smart charging OS

Bright, colorful, easy access set-up and status display. 80% deduction of operation process. Firmware updates can be performed using a personal computer.

Q6 Plus

3rd Generation Smart Balance Charger

Increased accuracy, with slight charging voltage adjustment capability.

Q6 Plus


Multiple Languages

Comes in a variety of languages to suit your needs.

Specifications

Input Voltage: DC 7-32V
Output Voltage: 0-30V
Charge Current: 0.1-14.0A
Discharge Current: 0.1-3.0A
Max Charge Capacity: 300W
Max Discharge Capacity: 8W
Balancing Current: 1A/cell
Balance Cells: 2-6S
Supported Batt. Type: LiFe/Lilon/LiPo/LiHv (1-6S)
NiMH/Cd(1-16S)
Pb(1-12S)
Display: 2.4〃320×240 IPS LCD
Operating Temperature: 0-40°C
Storage Temperature: -20-60°C
Dimensions: 80x80x33.5 mm
Weight: 119g


Model comparison

model SC-608 Q6 Plus SC-620
Max Charge Capacity 150W 300W 500W
Charge Current

0.1-8A

0.1-14A 0.1-20A
Max Discharge Capacity 5W 8W 15W
Discharge Current 0.1-3.0A 0.1-3.0A 0.1-5.0A
Balancing Current 500mA/cell 1A/cell 1A/cell
Input Voltage DC 9-32V DC 7-32V DC 9-30V
Output Voltage 0-30V 0-30V 0-30V
USB Port No No 2.1A/5V
Display 2.4〃320×240 IPS LCD 2.4〃320×240 IPS LCD 2.4〃320×240 IPS LCD
Dimensions 88x58x21 mm  80x80x33.5 mm 115x130x52 mm
Weight 110g 119g 289g
Volume 125cm³ 134cm³ 355cm³
Color black multi-color cover black



You can find it here: http://api.racer.lt/qZwd
Also available discount coupon for 15% discount: Q6Plus
Other ISDT super chargers http://api.racer.lt/qZwe
You'll need and Firmware upgrade data cable http://api.racer.lt/qZwf
As firmware is regularly updated.
