Micro brushless frames for 1103-1105 motors

03-02-2017

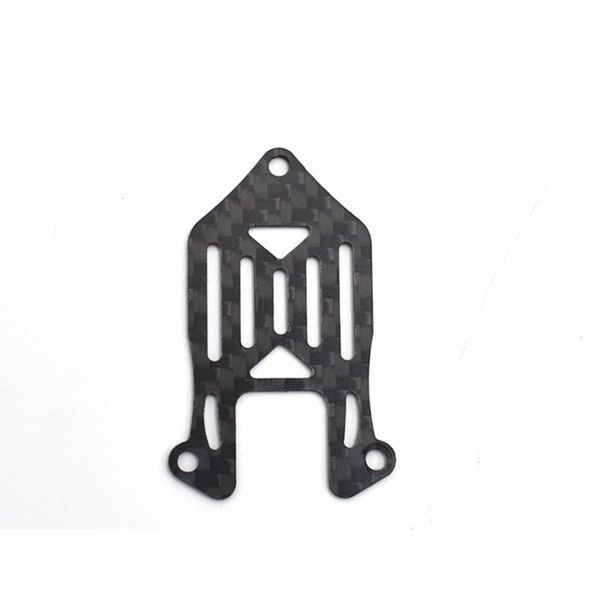

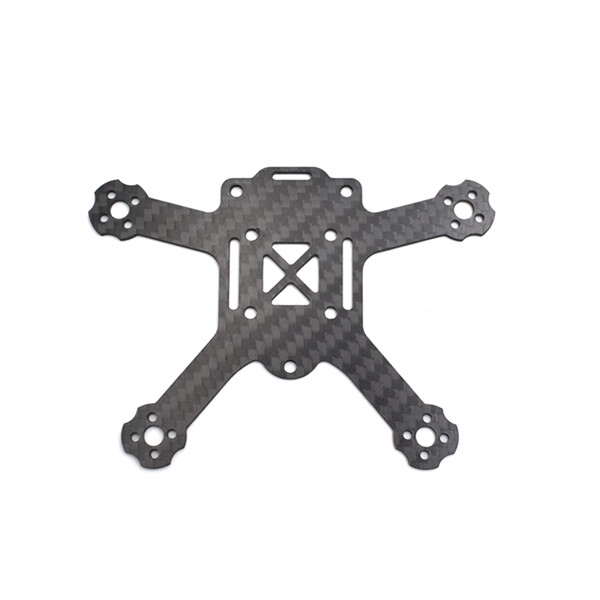

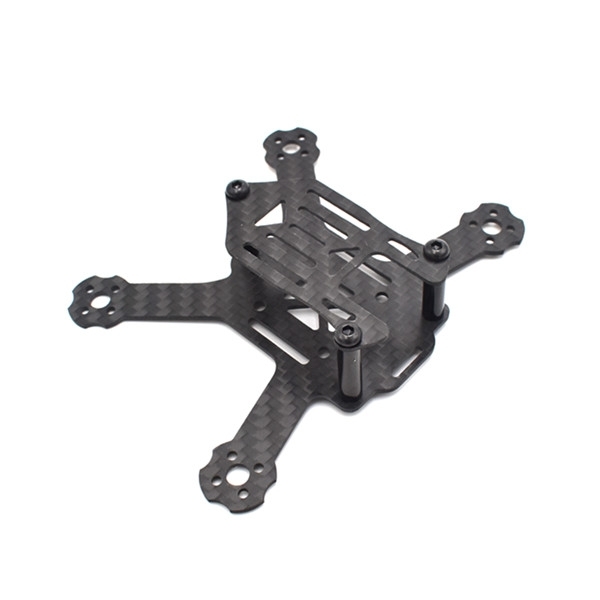

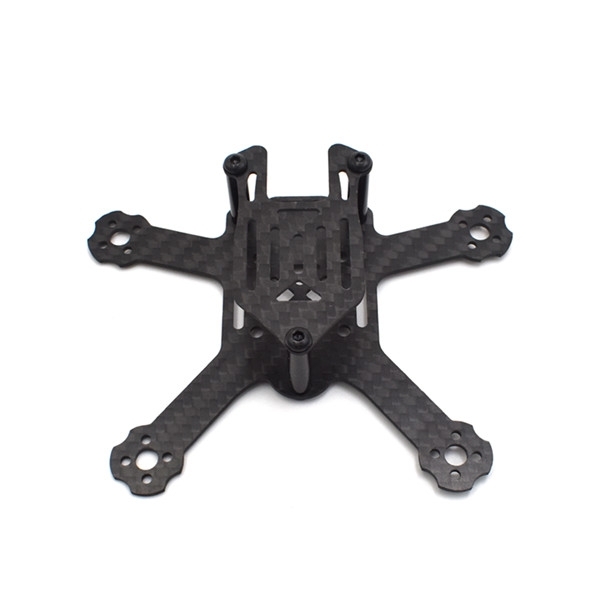

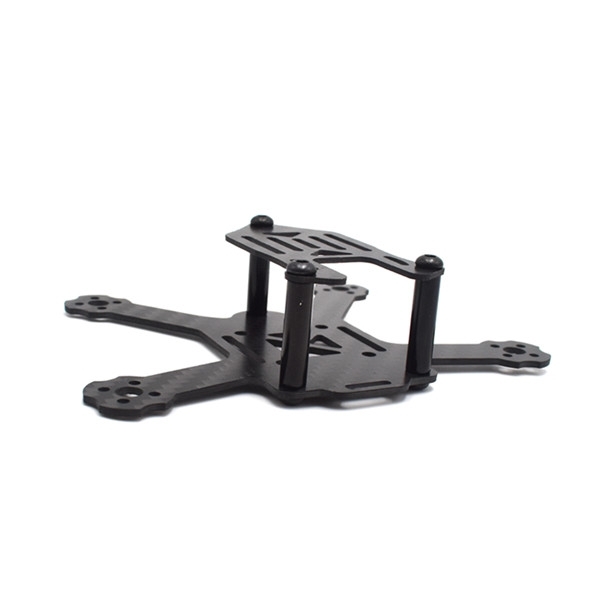

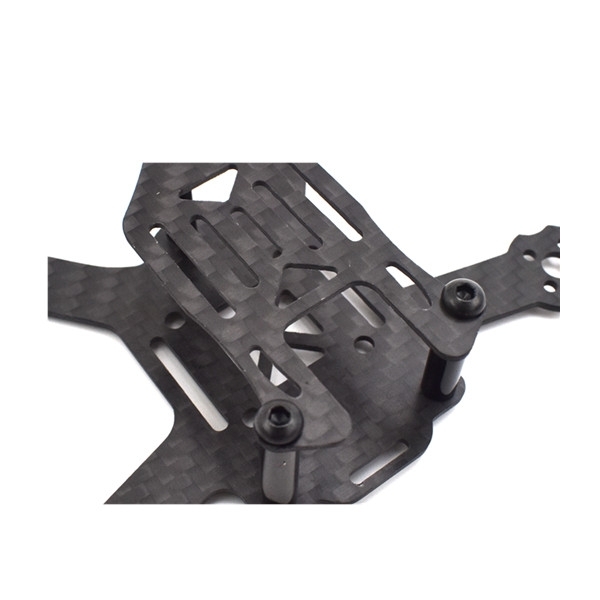

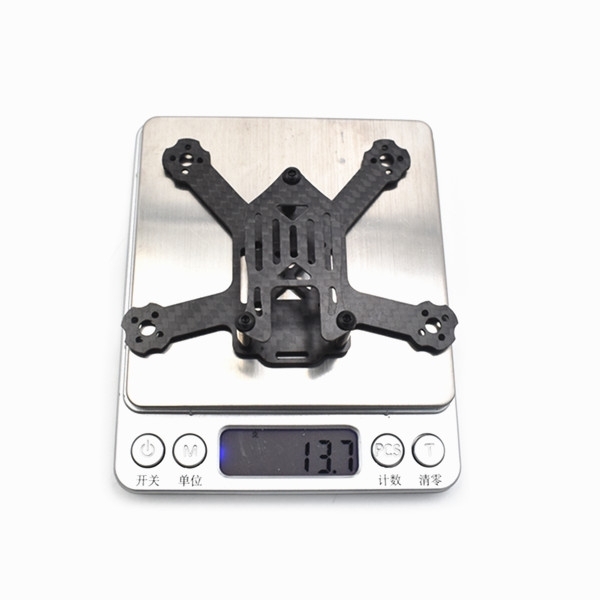

Realacc Bobo 95mm Carbon Fiber Frame Kit with PDB for FPV Racing



Specification:
Brand: Realacc
Item Name.: Bobo
Wheelbase: 95mm
Top board thickness: 1mm
Bottom board thickness: 1.5mm
Net weight: 13.8g
Motor mounting hole: 9x9
Flight control mounting hole: 20x20

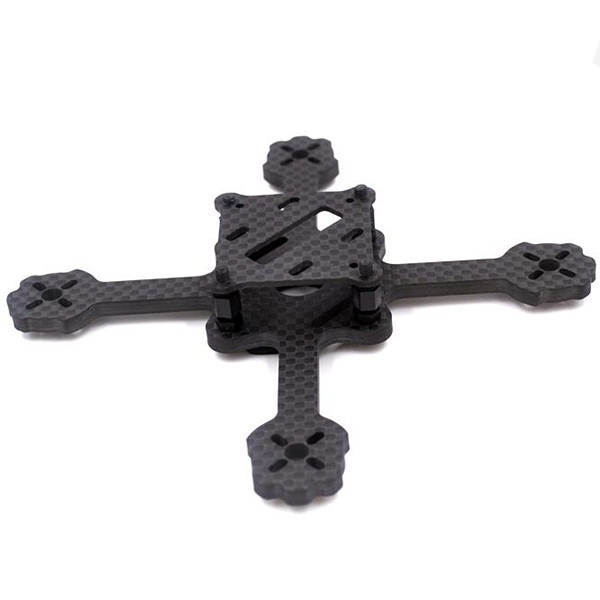

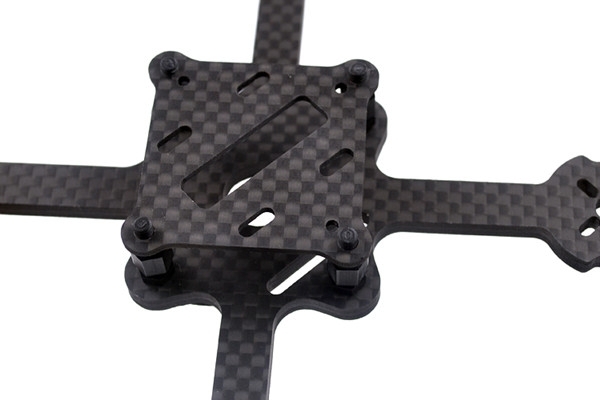

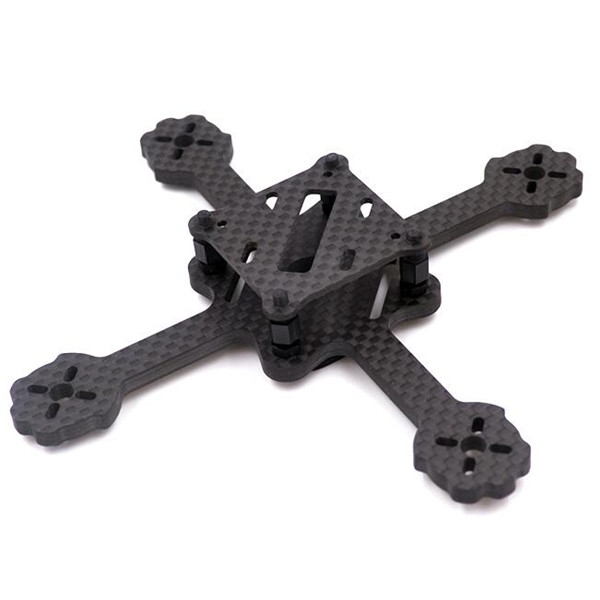

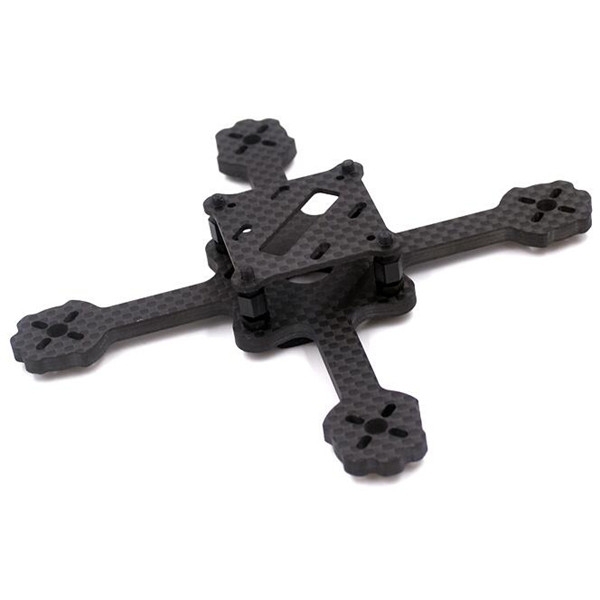

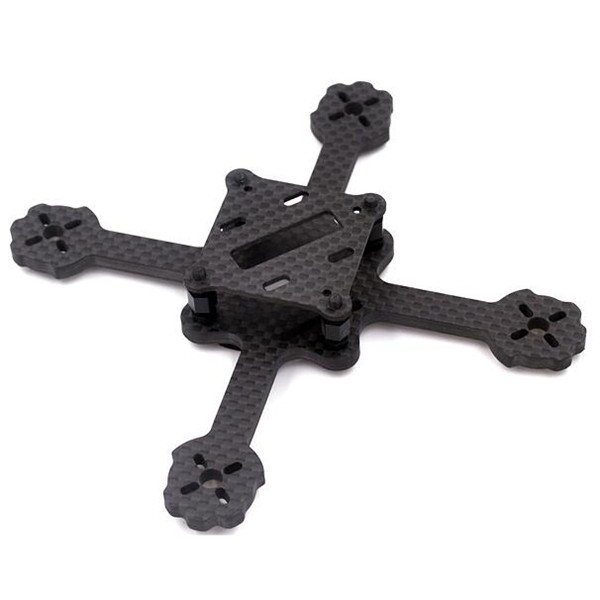

X112 112MM X Type Mini Racing Frame Kit with 3MM 4MM carbon

Specification:
Item Name: QAV130 112MM X Type Mini Frame Kit
Model: X112
Wheelbase: 112MM
Bottom Plate Thickness: 3MM/4MM
Version: 3MM Or 4MM (Bottom Plate)
Upper Plate Thickness: 1.5MM
Weight: 20g (3MM Version)
               30g (4MM Version)
Flight Control Board: 30.5x30.5 Installing Hole FC

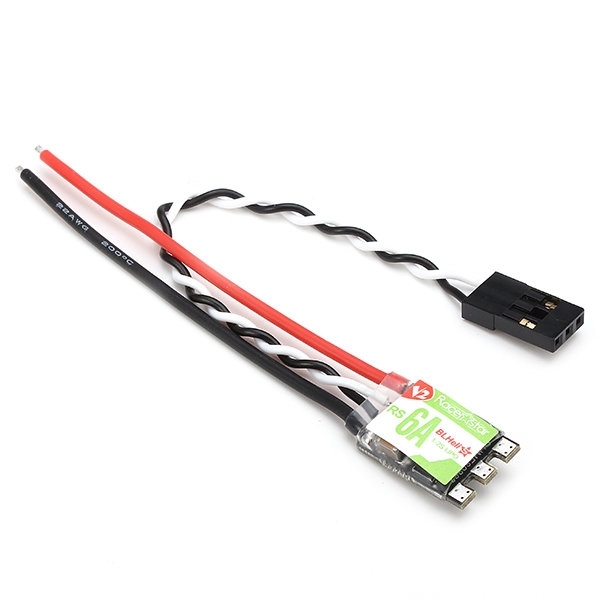

Racerstar RS6A V2 BB2 Blheli_S 6A 1-2S Brushless ESC Oneshot42 Oneshot125 16.5 Dshot600 18*11mm


Specification:
Brand Name: Racerstar
Model: RS6A V2
Item Name: 6A BB2 Blheli_S 1-2S ESC
Input Voltage: 1-2S
Con.Current:6A
Peak Current(10s):10A
BEC:NO
Programming :YES
Net Weight: 1.1g
Size:18*11mm

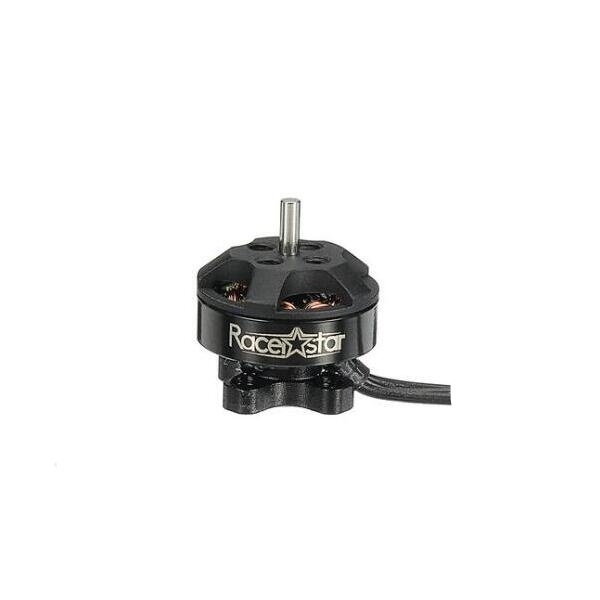

RaceStar BR1103 v2 10000KV Brushless Motor

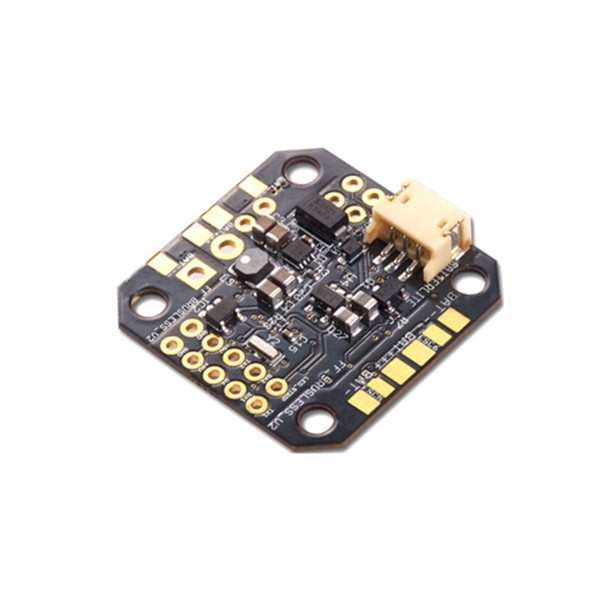

CleanFlight & BetaFlight Micro F3 Flight Controller Built-in PDB Buzzer Port 20X20mm For FPV Racing

Weight: 2.8 gr

Features:
The FIRST and ONLY 20X20mm platform micro flight controller with F3 chip
The FIRST and ONLY micro flight controller with PDB built-in Heavy Duty 2A BEC @ 5V Output Built-in
LC filter Built-in Built In Buzzer Gold Plated Pads for the Very Best ConnectivityFirmware Perfection via CleanFlight & BetaFlight
Sbus Ready w/ Built In Inverter
FrSky Telemetry, Ready & Waiting
Full USB Support
Mounting Simplicity via 3mm Screws
Ultra Compact Design for Ease of Installation

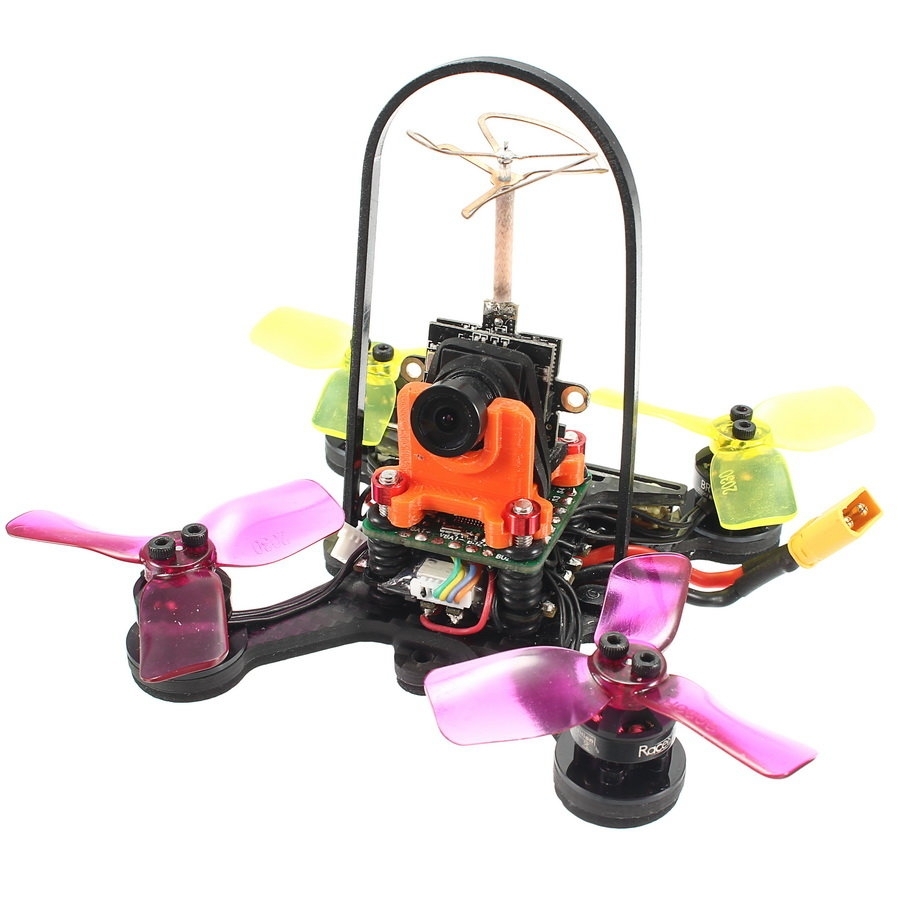

Eachine Chaser88 F3 FPV Racer ARF with 4 In 1 6A ESC 5.8G 40CH VTX 800TVL 1/3 Cmos Camera 2-3S

Fully ready to fly version.

  Specification Features
Chaser88 Frame
Package : 215×110×265mm
Weigh(without battery): 67g
Weight (with battery): 90g
Package Weigh: 215g

Compatible with 2030 inches propeller
Compatible with 1103 motor
Can be used with 2-3S battery
Wheelbase: 88mm
Flight time: 3.5mins
Batterry:  2S 45C 450mah
With direction indicator LED
ESC Model: BLHELI-S 6A
Continuous Current: 6A
Instantaneous Current(10S): 10A
BEC: NO
Li-Po Battery: 1-2S
Programming: Yes
Weight: 5G
Size(PCB): 27 x 27mm
M3 install Pitch: 20 x 20mm
Support DSHOT600
Motor 1103 10000KV
Voltage: 11.1V                         Power: 64.4W
Prop: 2 inches                        Efficiency: 1.4 g/w
Load current: 5.8A                 Lipo cell: 1-3s
Pull: 90g                                Weight: 3.7 g
Flight
Controller
 F3 Mini
Firmware version:  bf 1.3.1
800TVL Camera Sensor: 1/3 "CMOS
Lens: M8 800TVL Lens
Angle: 150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective
Format: NTSC / PAL (switchable)
Resolution: NTSC: 960X480/ PAL:960X480
Power consumption: 380mA @ 3.7V
Power: 3.6-5.5V
Lens Mirror Diameter: 2.1mm IR coated FOV150 (horizontal)
 FPV Transmitter Support video format: NTSC / PAL
Output Impedance: 75 Ohm
Output signal strength: 23 ~ 24dBm
Output Power: 25mW
Wireless Channel: 40CH
Antenna: RHCP circular polarization clover leaf antenna
Operating voltage: 3.6V ~ 5.5V
Current: 100mA
Audio carrier: 6.5MHz

Button function
Short press (Apr. 1 sec or less): Change channels 1-8
Long press (More than 1.5 sec): Change bands A-B-E-F-R
Long + press (More than 3 sec): Change NTSC/PAL system
NTSC or PAL (selectable; Blue LED on= NTSC; Blue LED off=PAL)


                                                 Frequency Table
Frequency Band A 5865 5845 5825 5805 5785 5765 5745 5725
Frequency Band B 5733 5752 5771 5790 5809 5828 5847 5866
Frequency Band E 5705 5685 5665 5645 5885 5905 5925 5945
Frequency Band F 5740 5760 5780 5800 5820 5840 5860 5880
Frequency Band R 5658 5695 5732 5769 5806 5843 5880 5917


Package Included:
1 X Frame Kit
4 X 1103 motor
4 X 2030 Propeller
1 X Camera
1 X VTX
1 X Antenna
1 X 4 IN 1 ESC
1 X Flight controller
1 X LED with Buzzer
1 X Battery
1 X Black Alumina Camera protection ring
