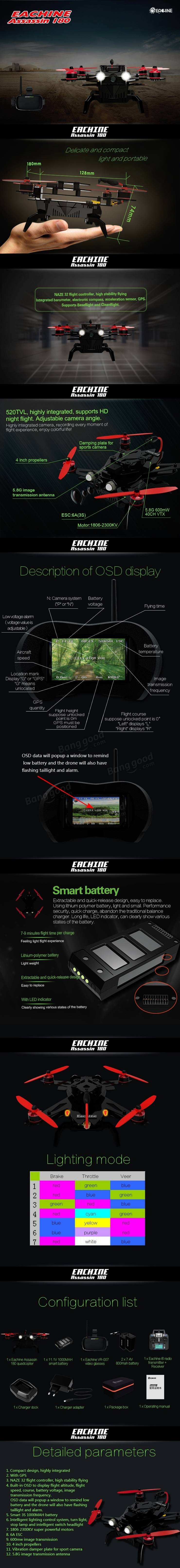

Eachine Assassin 180 FPV w/Eachine VR-007 HD Goggles I6 Transmitter Built In OSD GPS NAZE32 RTF

11-01-2016

Eachine Assassin 180 FPV w/Eachine VR-007 HD Goggles I6 Transmitter Built In OSD GPS NAZE32 RTF



Products Description Features
Eachine Assassin 180
Size(mm): 128x180x74
Weight: 288g
Camera: 520TVL, supports HD night flight, adjustable camera angle
Brushless motor: 1806-2300KV
ESC: 6A(3S)
Flight controller: Naze 32
Battery: smart battery 3S 1000mAh
Image transmission: 5.8G 600mW 40CH
Propeller: 4 inch
Flight time: 7-9 minutes

Delicate and compact, light and portable.

NAZE 32 flight controller, high stability flying.

Integrated barometer, electronic compass, acceleration sensor, GPS.

Supports Baseflight and Baseflight.

520TVL, highly integrated, supports HD night flight. Camera angle is adjustable.
Highly integrated camera, recording every moment of flight experience, experience colorful life!

Built-in OSD to displayflight altitude, flight speed, course, battery voltage, image transmission frequency.
OSD data will popup a window to remind low battery and the drone will also have flashing taillight and alarm.

Smart battery, 3S 1000mAh, extractable and quick-release design, easy to replace. Using lithium polymer battery, performance security, quick charge, abandon the traditional balance charger.
Eachine VR-007 HD Goggles
Dimension(mm): 148x176x102
Screen size: 4.3 inch
Screen resolution: 480x272
Working temperature: -20℃-80℃
Ultra-lightweight design: 256g(battery not included)
Battery weight: 24g
Power voltage: 800mah 7.4V standard configuration(2S smart lipo battery, with power display function, supports USB 5V charging)
Antenna: 5.8G 3dB
Power dissipation: 500mA
Frequency channel: built-in 40CH 5.8GHz A/V automatic search receiver
Language choice: multilinguals can be choosed in osd menu(English, French, Italian and so on).

Small size, light weight.

Designed according to ergonomic.

Settled three-point fillet can reduce the pressure of long-time wear to the head.

High softness, ventilate and environmental sponge fit the contours of the face, more comfortable, less ambient light.

Customized eyeglass, myopia below 400° needn't to wear glasses.

Built-in 40CH 5.8GHz A/V automatic search receiver.

Two groups of standard 800mAH 7.4V (2S) Lipo battery, with power display function, supports USB 5V charging, long life.
Eachine I6 2.4G Transmitter
Channels: 6 Channels
RF Range: 2.40-2.48GHz
Bandwidth: 500KHz
Band: 142
RF Power: Less Than 20dBm
Sensitivity: 1024
Low Voltage Warning: less than 4.2V
DSC Port: PS2;Output: PPM
Charger Port: No
ANT length: 26mm*2(dual antenna)
Weight: 392g
Power: 6V 1.5AA*4
Display mode: Transflective STN positive type, 128*64 dot matrix VA73*39mm,white backlight.
Size: 174x89x190mm
On-line update: yes
Model Memories: 20
Works in the frequency range of 2.405 to 2.475GHz.This band has been divided into 142 independent channels,each radio system uses 16 different channels and 160 different types of hopping algorithm.

This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency band. Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission

Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety.

This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption.

Package included:
1 x Eachine Assassin 180
1 x Eachine VR-007 video glasses
1 x Eachine I6 2.4G transmitter
1 x 520TVL camera
4 x 6A 3S ESC
1 x Naze 32 flight controller
2 x 1806-2300KV CW motor
2 x 1806-2300KV CCW motor
1 x 11.1V 1000MAH smart battery
2 x 7.4V 800mah battery
4 x NIMH AA 2400mAh 1.2V battery
1 x Charging dock
1 x Charger adapter
1 x operating manual
