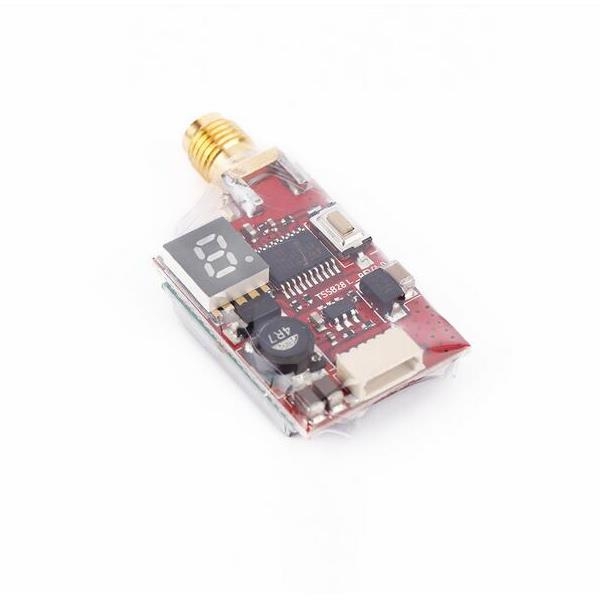

TS5828L Micro 5.8G 600mW 40CH Mini FPV Transmitter with Digital Display

Description:

Item Name: FPV Transmitter

Channel: 40CH

Frequency: 5.6G-5.9G

Current: 190mA/12V

Temp.: -10-85℃

Video Bandwidth: 8M

Audio Bandwidth: 6.5M

Antenna: RP-SMA

Size: 38x18x8mm

Weight: 16g

Band and Channel selection
CH CH 1 CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8 GROUP A 5865 MHZ 5845 MHZ 5825 MHZ 5805 MHZ 5785 MHZ 5765 MHZ 5745 MHZ 5725 MHZ B 5733 MHZ 5752 MHZ 5771 MHZ 5790 MHZ 5809 MHZ 5828 MHZ 5847 MHZ 5866 MHZ C 5705 MHZ 5685 MHZ 5665 MHZ 5645 MHZ 5885 MHZ 5905 MHZ 5925 MHZ 5945 MHZ D 5740 MHZ 5760 MHZ 5780 MHZ 5800 MHZ 5820 MHZ 5840 MHZ 5860 MHZ 5880 MHZ R 5658 MHZ 5695 MHZ 5732 MHZ 5769 MHZ 5806 MHZ 5843 MHZ 5880 MHZ 5917 MHZ

Package Included:

1 x Transmitter

1 x Antenna

1 x Cable

1 x User Manual
