SP Racing F3 6DOF ACRO Flight Controller

SP Racing F3 6DOF ACRO Flight Controller
Seller: GearBest,
Description:
SP Racing F3 is designed to give awesome flight performance based on tried and tested sensors while also providing unparalleled I/O capabilities thanks to the next-generation CPU.
With integrated OSD, buzzer, I2C port, sonar, battery monitoring, programmable LEDs, broad RC receiver support, it is astonishingly powerful!

Main Features:
- Next-generation CPU contributes to faster calculations and shorter looptime
The SP Racing F3 flight controller, whose loop time is up to twice faster than previous-generation STM32F1 based boards, has an ARM Cortex - M4 72MHz CPU with math co-processor (FPU) intended for efficient flight calculations that get more done in less time.

- Outstanding multitasking with no-compromise I/O
Use all the features simultaneously! It is possible to connect your OSD, SmartPort, SBu, GPS, LED strip, battery monitoring, sonar, and 8 motors at the same time!

- Easily achievable improvements of setup with the help of flight logs
The on-board high-capacity black box records the flight logs, which can be used to optimize your tuning and to see the results of your setup without guesswork.

- OneShot ESC and programmable LEDs
Fully supporting OneShot, it also features easy PID tuning and a sharper response. The multi-colored LED strips are great for FPV racing, line-of-sight flying and night flying.

- Ideal for steady flight
The SP Racing F3 builds on tried and tested software, processor and sensor technology to make your aircraft fly as if it is on rails.

- Configurable
The SP Racing F3 runs Cleanflight which can be configured to suit your needs via a cross-platform GUI (Windows / OSX / Linux).

- Developer friendly
Developer friendly debug port (SWD), boot mode selection, and unbrickable bootloader are available, thus, opening the way for upgrades.

- Broad RC receiver support
It supports SBus, SumH, SumD, Spektrum1024 / 2048, XBus, PPM, PWM receivers, and requires no external inverter.

- Suitable for 250, 280, 180, 210mm FPV racing quadcopter.

Specifications

General

Type: Flight Controller

Dimension and Weight

Product weight: 0.026 kg
Package weight: 0.035 kg
Product size (L x W x H): 3.90 x 3.90 x 1.28 cm / 1.54 x 1.54 x 0.5 inches
Package size (L x W x H): 16.00 x 10.00 x 1.00 cm / 6.3 x 3.94 x 0.39 inches

Package Contents

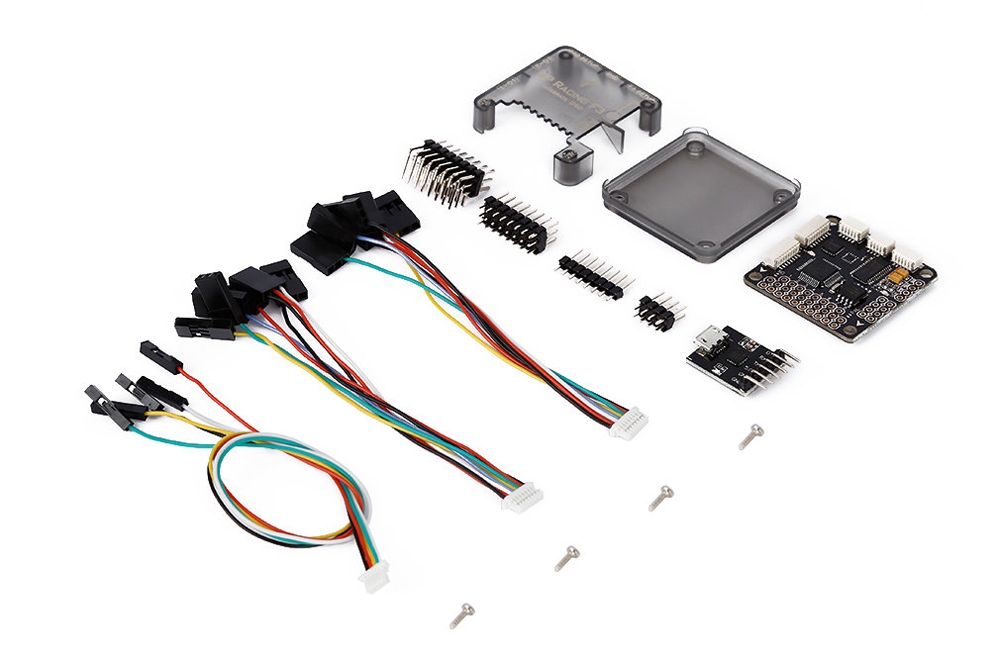

Package Contents: 1 x Flight Controller, 3 x Cable, 4 x Pin, 1 x Panel
