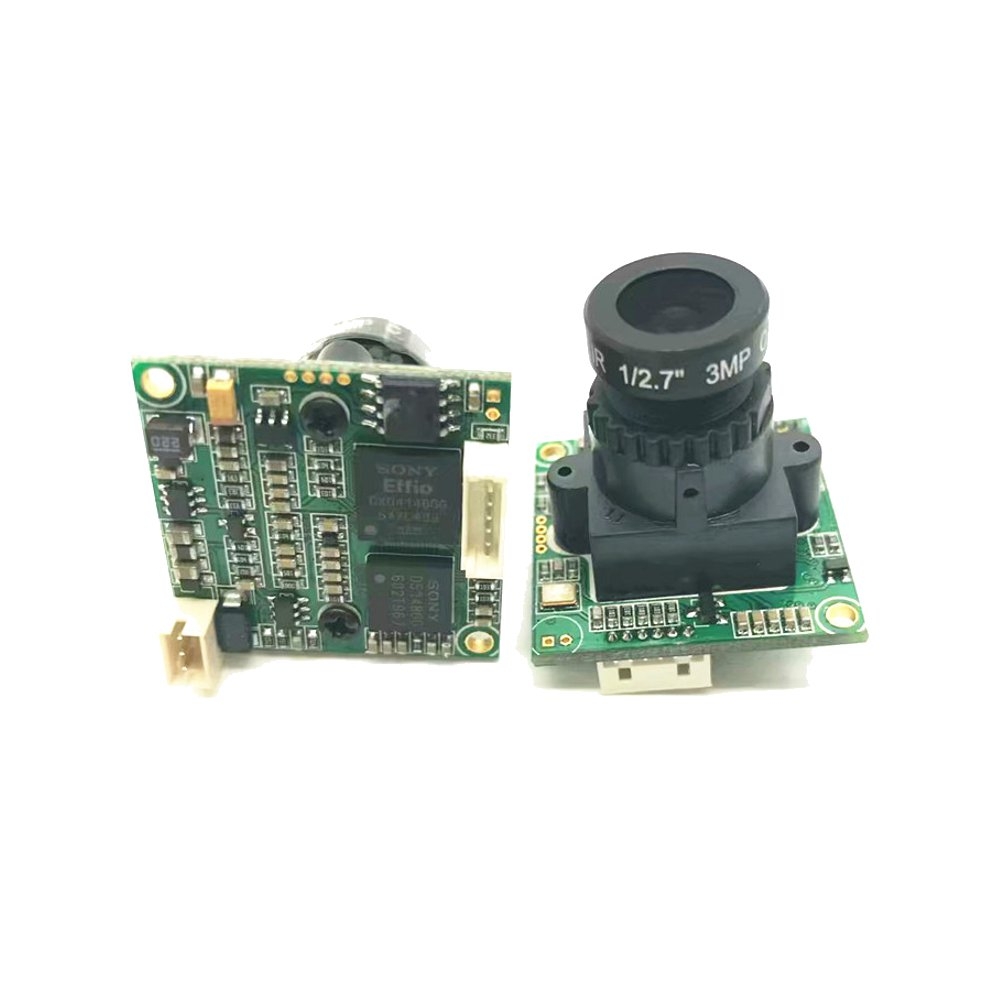

Mista 1/2.7'' Sony Effio-E CCD 700TVL 3MP 2.8mm 100 Degree Lens HD FPV Camera PAL/NTSC Support OSD - 18.00 €

Mista 1/2.7'' Sony Effio-E CCD 700TVL 3MP 2.8mm 100 Degree Lens HD FPV Camera PAL/NTSC Support OSD
Seller: Banggood,
Free shipping aviable, Registered postage from 25 €


Mista 1/2.7'' Sony Effio-E CCD 700TVL 3MP 2.8mm 100 Degree HD FPV Camera PAL/NTSC Support OSD

Description:

Brand Name: Mista
Item Name: FPV Camera

CCD Type: 1/2.7" Sony 960H Exview HAD CCD II
Resolution (horizontal center): 700TVL
Lens: Standard 2.8mm
FOV: 100 Degree
Signal System: PAL/NTSC

Effective Pixels: PAL: 976H × 582V, NTSC: 976H × 494V
Total Pixels: PAL: 1020H × 596V, NTSC: 1020H × 508V
Minimum Illumination: 0.01LUX/F1.2
Signal to Noise Ratio: ≥48dB
Video Output Amplitude: 1.0Vp-p/75Ω

Exposure Mode: Electronic exposure
Electronic Shutter: 1/50 (1/60) - 1/100000 seconds
Gamma Correction: 0.45/1.0
Synchronization Method: Internal synchronization
Working Voltage: DC12V (wide voltage, measured can work normally at 7.5-13V)
Working Current: 70mA (low power consumption)
Working Temperature: -20 ° C - 60 ° C
Humidity: 0% to 98%
White Balance Mode: On/Off selectable
OSD Menu: Support
Shell Size: 28mm*28mm
Weight: 10g

Digital Noise Reduction: 2D Digital Noise Reduction (2DNR), supports 0-15 16-level adjustable
Wide Dynamics: Digital Wide Dynamics (Adaptive Level Reproduction)
Automatic Gain Control: 0.25/0.50/0.75/1.00 four levels can be adjusted up to 55dB
Backlight Compensation Method: High brightness backlight compensation (HLC) / backlight compensation

Features:
Use latest SONY Effio-E chip.
Supports OSD menu control.
Clear and delicate images, vivid colors, low illumination.
Wide voltage, micro power consumption and wide dynamics.

Note:
If you find that the camera is blurry, you can loosen the lens to adjust the focus.
Pay attention to shock prevention.


Package Included:
1x Mista 1/2.7 Sony Effio-E CCD 700TVL 3MP 2.8mm 100 Degree Lens HD FPV Camera
