LT105 105mm Mini Brushed RC Quadcopter - ARF

LT105 105mm Mini Brushed RC Quadcopter - ARF
Seller: GearBest,

The 105mm quadcopter is based on F3 brushed flight controller, which offers you fascinating manual operation. It is flexible in supporting various kinds of transmitters and allowing for refits.

Main Features:
- Amazing manual control
The moment you get the control of the drone, you'd be impressed by the excellent performance of its F3 brushed flight controller.
- Compact and lightweight

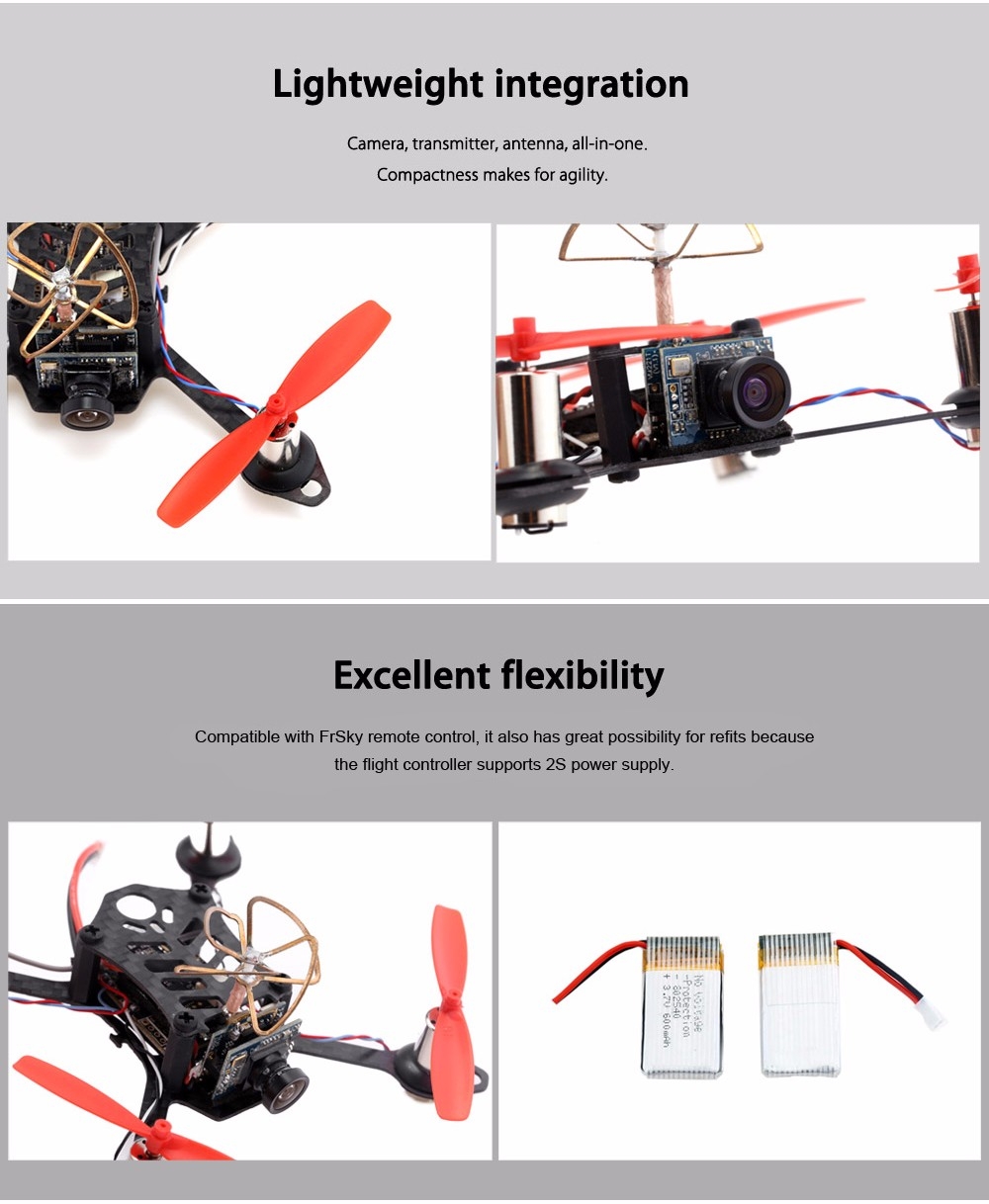

The 105mm premium carbon fiber frame and the application of coreless motors contribute to the agility of the drone. While the integration of 500TVL FPV camera, 32-channel transmitter module, and 5.8G antenna facilitates the installation process for future use.
- Great flexibility
The quadcopter has a FrSky receiver which is compatible with DHT, DFT, DJT, XJT, X9E, and X9D Plus protocol. More importantly, the flight controller supports 2S power supply, which provides great refit possibility.

Motor diameter: 8.5mm
Motor height: 20mm
Output shaft diameter: 1.0mm
Output shaft length: 5mm
Weight: 5g
Voltage: 3 - 5V
Current: 0.15A
RPM: 35000 - 37000 ( 3V ), 50000 ( 5V )
Propeller length: 60mm

FrSky Receiver
Compatibility: DHT, DFT, DJT, XJT, X9E, X9D Plus
Transmission distance: 600m
Resolution: 1024
Output: PPM, SBUS
Voltage: 5V
Current: 100mA
Size: 12 x 24mm
Weight: less than 1g



Type: Body Frame,Camera Set,ESC,Flight Controller,Frame Kit,Motor


Channel: No Transmitter
Remote Control: Radio Control
Mode: No Transmitter
Transmitter Power: No transmitter included


Flying Time: 4~5mins


Video Resolution: 500TVL
Video Standards: NTSC

Dimension and Weight

Product weight: 0.046 kg
Package weight: 0.115 kg
Product size (L x W x H): 10.00 x 10.00 x 5.80 cm / 3.94 x 3.94 x 2.28 inches
Package size (L x W x H): 11.00 x 11.00 x 7.00 cm / 4.33 x 4.33 x 2.76 inches

Package Contents

Package Contents: 1 x Quadcopter, 2 x Battery, 4 x Propeller
