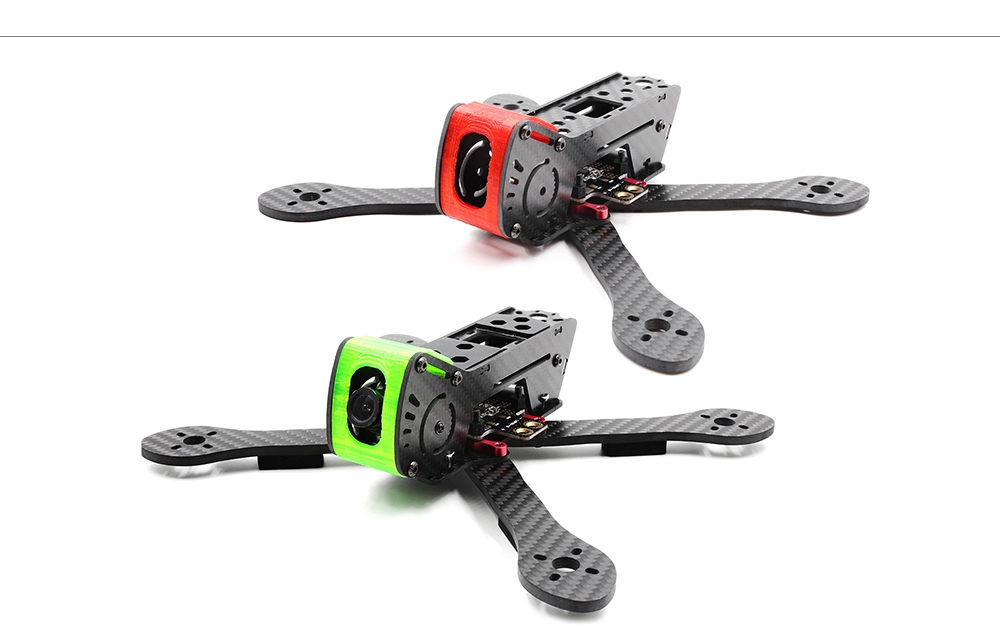

GEPRC AirBus GEP - AX5 215mm DIY Carbon Fiber Frame

GEPRC AirBus GEP - AX5 215mm DIY Carbon Fiber Frame
Seller: GearBest,


Main Features:
- 3K full carbon fiber material, strong but light
- CNC aluminum posts make it even stronger and facilitate the maintenance
- Camera mount tilted at 35 degree, which makes it easy to install the GoPro Session
- 3D TPU printed cover for the aerial camera effectively reduces the wind drag
- Good maneuverability with a wheelbase of 200mm and the true "X" configuration
- Protective motor seat, wide enough to diminish the damage of motors from collision
- Adjustable lens angle of 0 - 55 degree
- With PDB and 5V 3A / 12V 500mA BEC
- LED taillights can be controlled via CleanFlight and BetaFlight

Specifications:
Model: GEP - AX5
Weight: 116g
Wheelbase: 215mm
Adjustable lens angle: 0 - 50 degree
Central board: 4mm
Lateral board: 2mm
Top board: 1.5mm

Recommended configuration
Flight controller: F3 / Naze32 / CC3D
Motor: 2204 / 2205 / 2206 / 2305
ESC: 20 - 30A
Propeller: 5 inch
Battery: 4S 1300mAh

Specification

General

Brand: GEPRC
Type: Frame Kit

Racing Quadcopter Parameters

Wheelbase: 215mm

Dimension and Weight

Product weight: 0.116 kg
Package weight: 0.285 kg
Product size (L x W x H): 21.50 x 21.50 x 3.00 cm / 8.46 x 8.46 x 1.18 inches
Package size (L x W x H): 25.00 x 22.50 x 5.00 cm / 9.84 x 8.86 x 1.97 inches

Package Contents

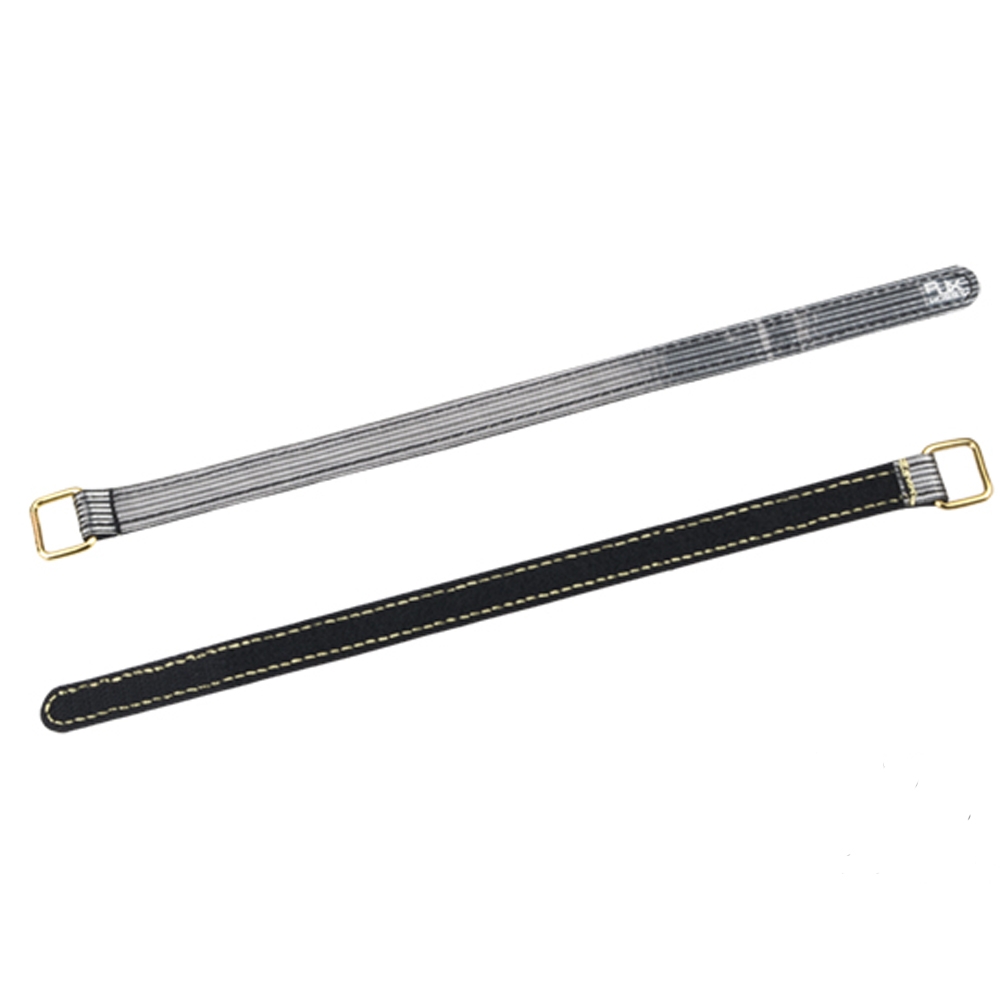

Package Contents: 1 x Carbon Fiber Frame Kit, 1 x PDB, 1 x LED Board, 2 x Strap
