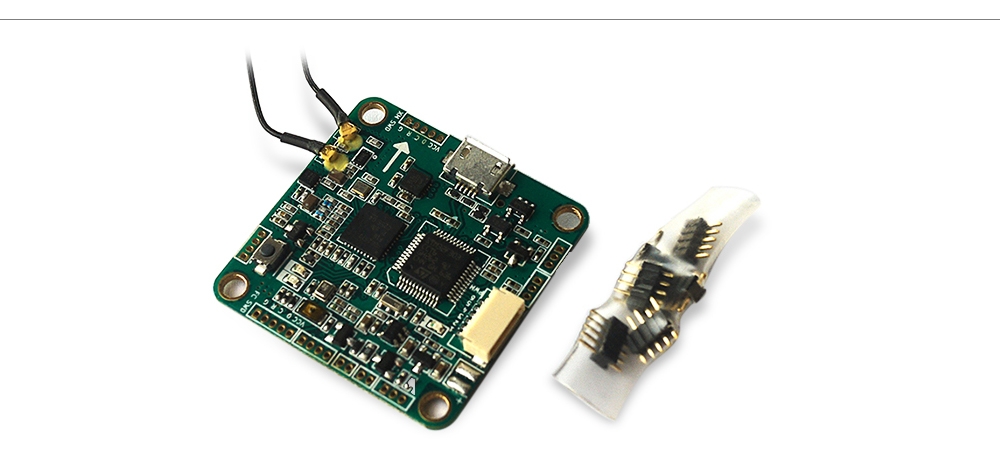

FrSky XMPF3E F3 EVO Brushed Flight Controller

FrSky XMPF3E F3 EVO Brushed Flight Controller
Seller: GearBest,


Main Features:
- F3 EVO flight controller with built-in XM Plus receiver module
- Features the latest sensor technology of accelerometer, gyro, compass and barometer
- XM Plus receiver is a one-way receiver ( no telemetry )
- F3 EVO by SBUS ( CH8 is RSSI ) to UART2 Rx of F3 EVO
- 6 PWM output signal lines for ESCs and servos
- Arranged for easy wiring on standard pin headers

Specifications:
Dimension: 36 x 36 x 6mm with 30.5mm spacing mounting holes
Hardware: STM32F303 CPU ( 72MHz inc FPU ), MPU9250 ( accelerometer / gyro / compass ), BMP280 barometer for F3 EVO, CC2510 CPU for XM Plus receiver
Weight: 7g
Channels: 16CH ( CH 8 - RSSI ) by SBUS to UART2 Rx of F3 EVO
Operating voltage range: 4.0 - 10V
Operating current: 100mA at 5V
Compatibility: FrSky Taranis X9D / X9E / Horus X12S / XJT in D16 Mode
Firmware upgradeable: yes

Click here to download the user manual.

Specification

General

Brand: FrSky
Type: Receiver

Dimension and Weight

Product weight: 0.007 kg
Package weight: 0.021 kg
Product size (L x W x H): 3.60 x 3.60 x 0.60 cm / 1.42 x 1.42 x 0.24 inches
Package size (L x W x H): 12.00 x 17.00 x 1.00 cm / 4.72 x 6.69 x 0.39 inches

Package Contents

Package Contents: 1 x F3 Flight Controller, 1 x Pack of Accessories
