Specification:
Brand name: Flycolor

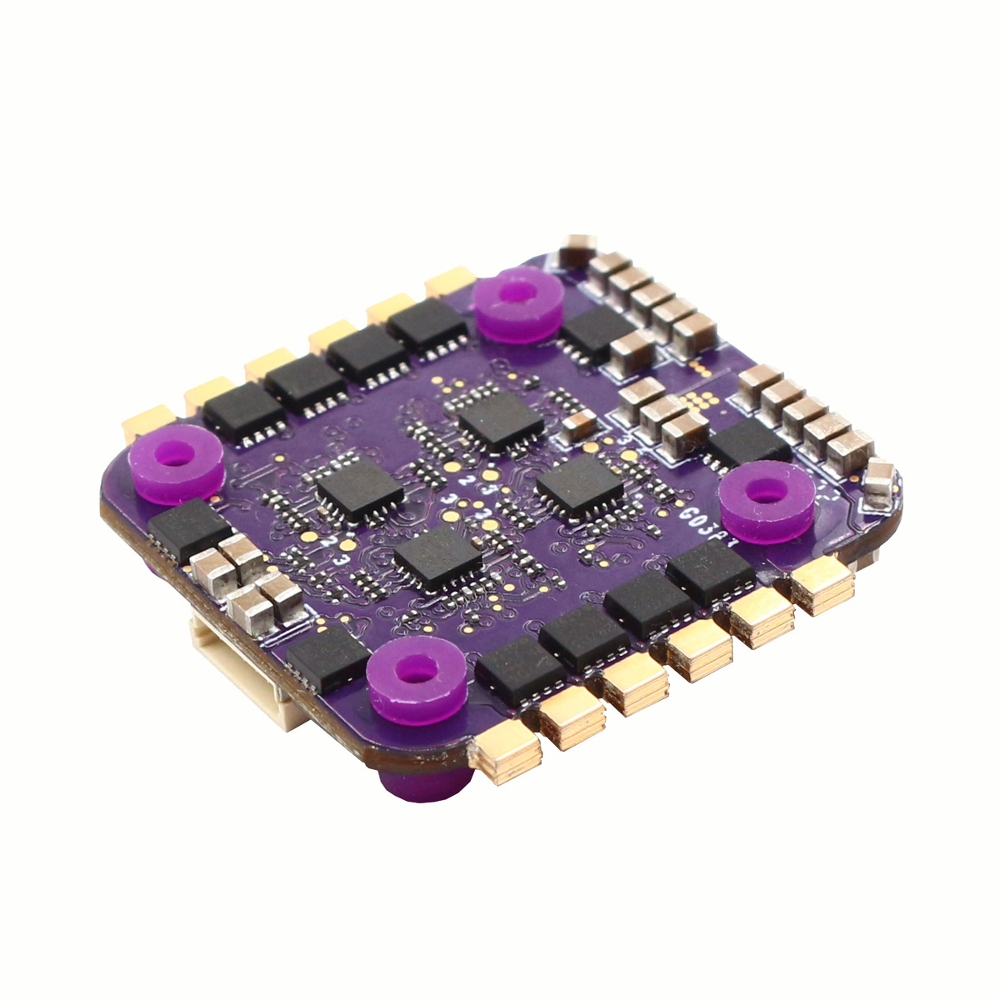

Item name: 20A 4 in 1 ESC
EFM8BB21F16G MCU, pipelined 8-bit C8051 core with 50 MHz maximum operating frequency. ESC maximum speed is limited to 500k eRPM.
Dedicated 3in1 drivers, makes the start more smooth.
ESC ï¬rmware: BLHeli-S,F-H-40.
Two layers tower structure between 4in1 ESC and FC, using cable for quick connection, silicon spacer for supporting could reduce the eï¬ect of vibration on Flight Controller, makes the ï¬ight more stable.
BLHeli-S ï¬rmware. It is designed for superior performance in multirotors, and uses hardware generated motor pwm for smooth throttle response and silent operation.
The code supports regular 1-2ms pulse width input, as well as Oneshot125 , Oneshot42 and Multishot .
Supports Dshot150, Dshot300 and Dshot600.Dshot is digital signal, anti-interference ability is stronger, and do not need throttle calibration.
Package Included:
1 x 20A 4 in 1 ESC
![](/uploads/modules/catalog/img/12000/1536014479_12632_flycolor-raptor-s-tower.jpg)
![](https://img.staticbg.com/images/oaupload/banggood/images/03/6E/ccaeee72-72d0-4c49-aa67-6d589797b820.jpg)
![](https://img.staticbg.com/images/oaupload/banggood/images/E6/3B/439fa7c2-87cf-4415-82af-d7d6aa817773.jpg)
