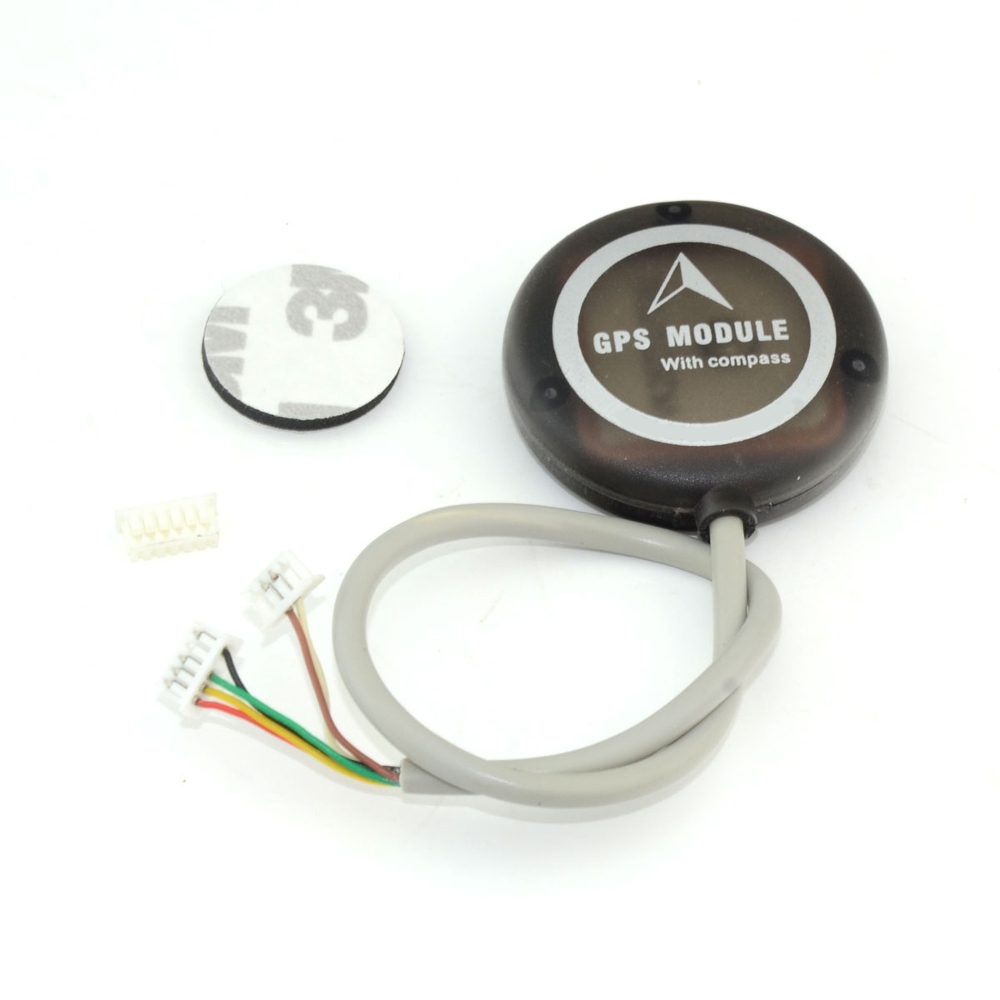

7M Flight Control GPS Module for APM Pixhawk Built-in Compass with Shell for FPV Racing Drone
Seller: Banggood,
Free shipping aviable, Registered postage from 25 €


7M Flight Control GPS Module for APM2.6 2.8 Pixhawk Built-in Compass with Shell for RC Drone FPV Racing

Specification:

Item name: 7M GPS Module
Dia.of shell: 36mm
Weight: 13g
Connection: APM interface (come with a Pixhawk 6pin interface)

Description:
- 7M refresh rate is improved to 10Hz, two times faster than 6M, 6H
- Positioning precision is 2.5M, built in high precised electronic compass
- Support GPS, GLONASS, Galileo and QZSS Multi-GNSS engine
Receiver type:
- GPS L1 C/A, GLONASS L1 FDMA
- QZSS L1 C/A
- Hardware support Galileo E1B/C, Compass
- SBAS: WAAS, EGNOS, MSAS
- Max update speed reaches 10Hz
- Positioning: 2.5m CEP/ 4.0 m
- SBAS 2.0m CEP/ n.a.
- Capture GPS/ GLONASS
- Cold start: 290s/ 30s
- Assistant: 5s/ n.a,
- Recapture: 1s/ 3s

Note:
1. We will send the 7M used for APM, If you want to use it for PIXHAWK. Please replace us with the PIX special 6P connector.
2. The firmware of GPS is fixed, do not need to revise it; You can use it directly after receiving the GPS.

Package Included:
1 x 7M GPS Module w/Compass with Shell
