RacerCube AIO Flight Control System

RacerCube AIO Flight Control System
Seller: GearBest,


Description:
A new generation flight control system is born! All integrated, RacerCube does away with unnecessary wiring and makes your racing drone superior!

Main Features:

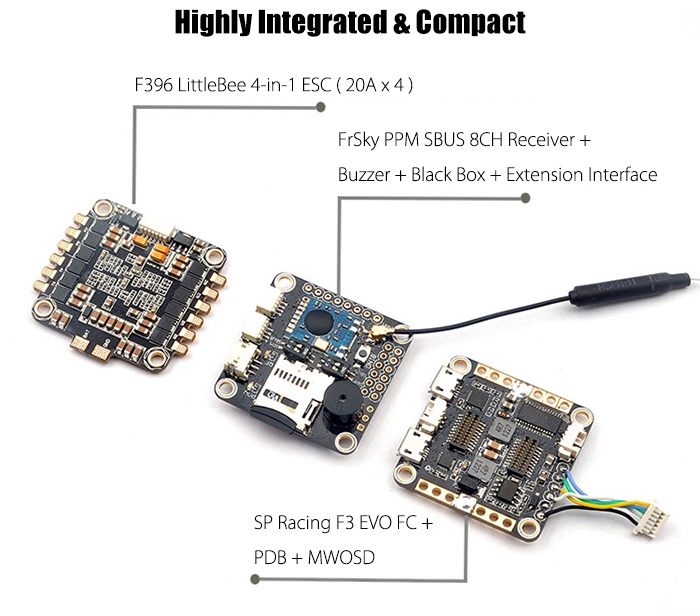

- Convenient plug-in flight control system with all the necessary components integrated
- Its uses the latest F3 EVO flight controller which supports CleanFlight and BetaFlight, bringing you the marvelous control and perfect performance
- FrSky PPM SBUS 8CH receiver, two-way telemetry, compatible with X9D / DJT / DFT / XJT transmitters
- Built-in MWOSD enables you to monitor the flight status in real time
- The high-quality 4-in-1 LittleBee ESC supports Oneshot125, Multishot, Damped Light, as well as parameter settings via CleanFlight

Specifications:
F3 EVO Flight Controller
Integrated PDB and MWOSD
Firmware: CleanFlight 1.13.0; compatible with BetaFlight
STM32F303 CPU, 72MHz inc FPU
MPU9250 accelerometer / gyro / compass ( connected via SPI )
BMP280 barometer
Compatible PPM / CPPM / SBUS / DSM2 / DSMX receivers
Integrated PDB supports 2 - 6S input
Built-in 4GB micro SD card for recording data in real time

FrSky Receiver
Channels: 8
Working voltage: 4 - 6.5V
Frequency range: 2400 - 2483.5MHz
Output signal: SBUS / PPM
Dual-way telemetry: yes ( D8 Mode )
Transmission distance: more than 1km
Feedback signal: RSSI, 3S voltage ( A1 )
Fail-safe: yes, at throttle ( Channel 3 )
Compatibility: X9D ( D8 Mode ) / XJT ( D8 Mode ) / DJT / DFT / DHT

LittleBee ESC
Feature: 4-in-1 20A x 4
F396 MCU, 48MHz runs BLHeli LittleBee Pro 20A firmware
Voltage input: 3 - 6S LiPo
Supports Oneshot125 / Multishot
Dimensions: 35 x 35mm
Mounting hole spacing: 30.5 x 30.5mm
Damped light: yes
BEC: no

Click here to download the user manual.

Specification

General

Type: Flight Controller Set

Dimension and Weight

Product weight: 0.023 kg
Package weight: 0.040 kg
Product size (L x W x H): 3.60 x 3.60 x 2.50 cm / 1.42 x 1.42 x 0.98 inches
Package size (L x W x H): 5.00 x 5.00 x 4.00 cm / 1.97 x 1.97 x 1.57 inches

Package Contents

Package Contents: 1 x Flight Control System

Product Safety Disclaimer:
We do not accept any responsibility or liability for misuse of this or any other product. All our products are extensively tested to comply with rigorous and strict QC standards. For certain products (e.g. toys, knives, etc.), we recommend proper supervision as we cannot be held liable for misuse or accidents.

Note:
Product photography is for illustration only. The product sold may have minor physical differences depending on manufacturer specifications, production batch, etc. Customers should carefully consider this before purchase.

Small Parts Disclaimer:
These toys contain small parts, not for children under 3 years in case of swallowing or choking . We do not accept any responsibility or liability for misuse of this or any other product.
