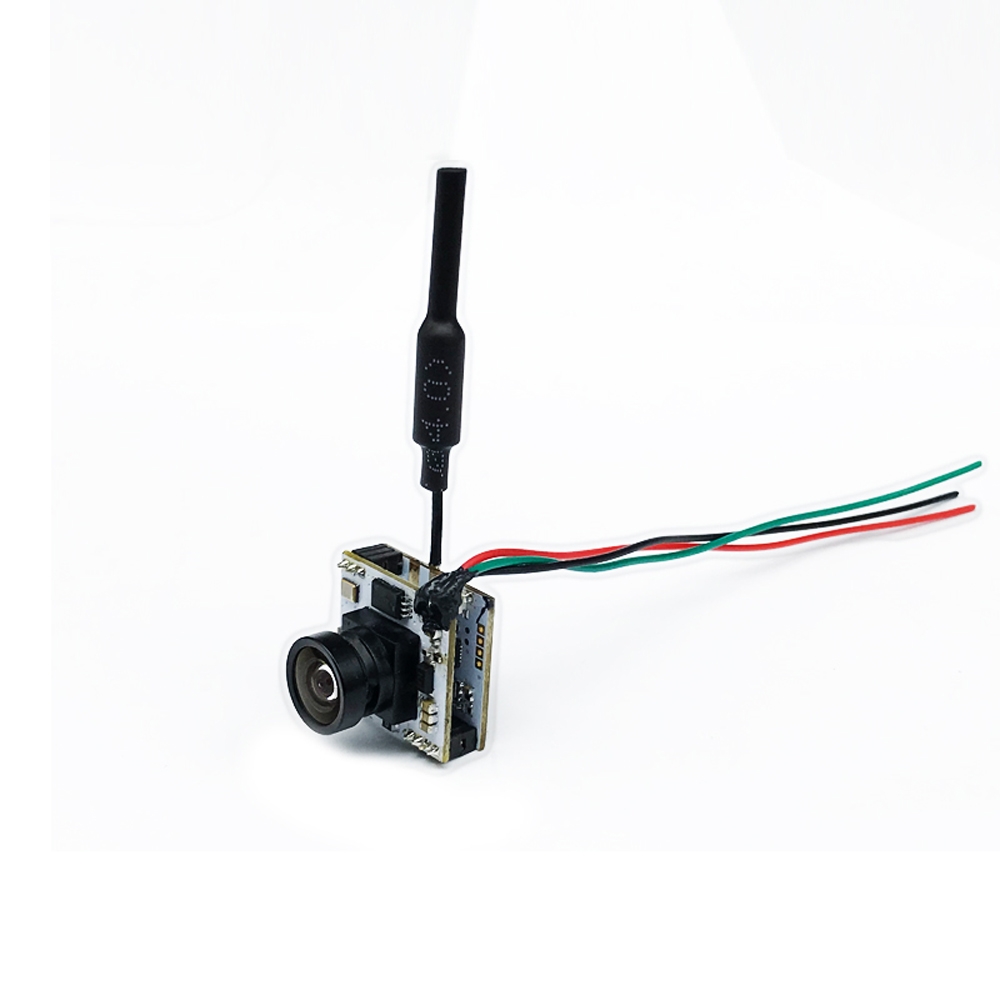

EWRF e7082VM 5.8G 40CH 25/100/200mW/Pitmode Switchable AIO FPV Transmitter for FPV RC Racing Drone - 7.00 €

EWRF e7082VM 5.8G 40CH 25/100/200mW/Pitmode Switchable AIO FPV Transmitter for FPV RC Racing Drone
Seller: Banggood,
Free shipping aviable, Registered postage from 25 €


EWRF e7082VM 5.8G 40CH 25/100/200mW/Pitmode Switchable AIO FPV Transmitter for FPV RC Racing Drone

Description:

Item number: EWRF e7082VM

Frequency: 5.8G 48CH
Transmitting Power: 25mW/100mW/200mW/OFF(Pitmode)
Power supply: DC 3-5.2 V (1S)
Current(4.2v): 320mA(25mW) /400mA(100mW)/460mA(200mW)
Weight: 4.4g
Standard size: 18.03*16.83*16.55mm

Main Features:
* Adjustable 4 modes: 25mW/100mW/200mW/OFF
* 700VTL camera, 120° field of view
* Channel changes through S.BUS
* Clean powerup and channel switching without interference to others
* Miniature and light weight design
* Weight: 4.4g

User Guide
1. LED indication
1. The red LED indicates the state of working mode or the item when setting the VTX(flashing 1 time means selecting the channels, flashing 2 times means selecting the bands, flashing 3 times means selecting the power levels).
1. The blue LED indicates the state of Pitmode or the value of item when setting the VTX( e.g. when selecting the channels, 3 times of flashing means channel 3. When selecting the bands, 3 times of flashing means band C. As for the item of power levels,3 times of flashing means at the power level of 200mW)
The green LED flashing indicates that the VTX overheat protection is working, the power level will go down.
2. Working mode indication
After powering up, the red & blue LEDs will signal the following three items of VTX in turn: channel, band and power level(the flashing times of the red and blue LEDs indicate the item and the value respectively). After that, the LEDs indicate the working modes.
Normal: The red & blue LED are on.
Pitmode:The red LED is on and blue LED is off.
3.Setting
1. Press and hold the button until the red LED flash 1 time which means the item of channel selecting, then press the button can select the channels(blue LED flashing times corresponds to the channel 1-8).
2. Press and hold the button again, the red LED will flash 2 times which means the item of band selecting, then press the button can select the band(blue LED flashing times corresponds to the band A-F).
3. Press and hold the button again, the red LED will flash 3 times which means the item of power level selecting, then press the button can select the power(blue LED flashing times corresponds to the power level).
4. Finally, press and hold the button, save and exit the setting of VTX(This step is essential for setting).
Press the button twice will toggle the ON/OFF of Pitmode.
4. SBUS setting
Connected to the 6th channel of the receiver ,turn back and forth the switch can change channels. The operation similar to key trigger mode.

Frequency (Mhz)


Band CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
A 5865 5845 5825 5805 5785 5765 5745 5725
b 5733 5752 5771 5790 5809 5828 5847 5866
c 5705 5685 5665 5645 5885 5905 5925 5945
d 5740 5760 5780 5800 5820 5840 5860 5880
E 5658 5695 5732 5769 5806 5843 5880 5917
F 5362 5399 5436 5473 5510 5547 5584 5621

Note:
1. Make sure that there is enough space for airflow when installing the module on the drone in case the overheating protection starts to reduce the power even to shut down at the worst.
2. Please install the antenna before powering up for a longer use life.

Package Included:
1x EWRF e7082VM 5.8G 40CH 25/100/200mW/Pitmode Switchable FPV Transmitter
