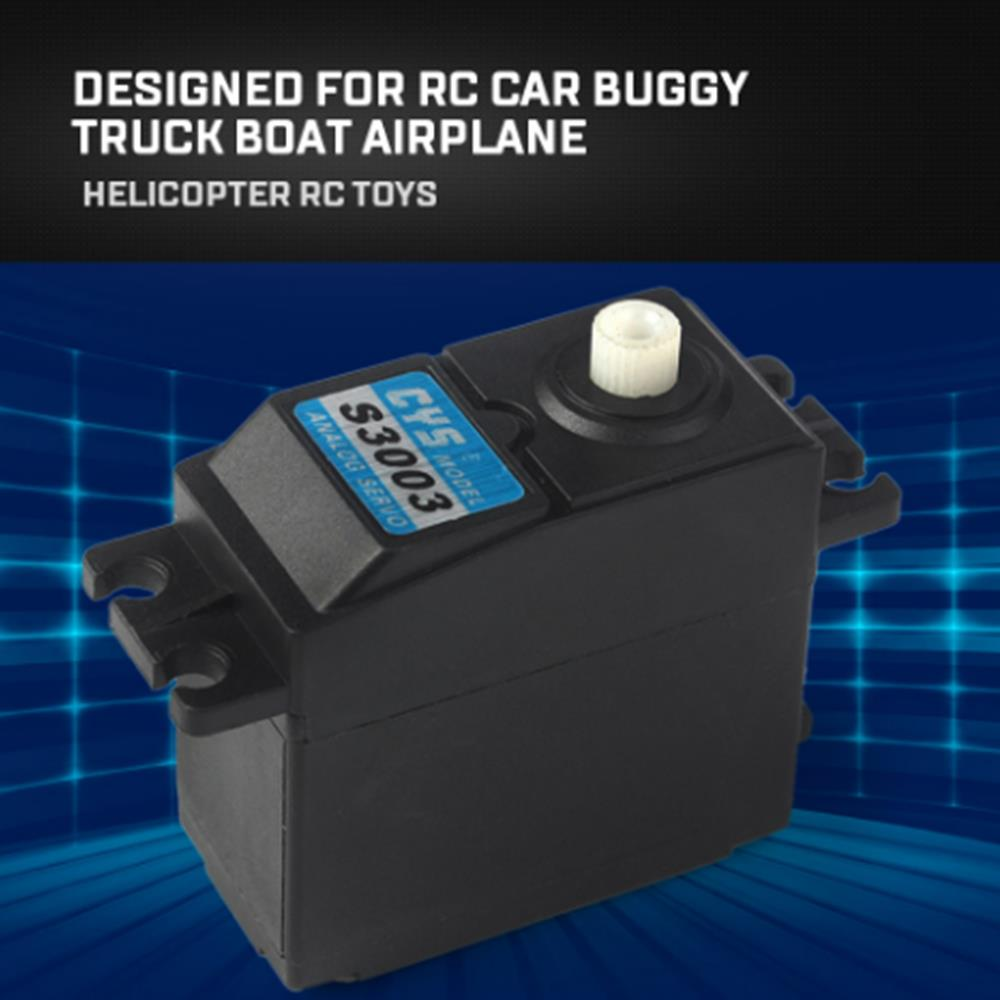

CYS-S3003 3KG Tiny Analog Servo for RC Car Buggy Truck Boat Airplane Helicopter RC Toys Part - 6.00 €

CYS-S3003 3KG Tiny Analog Servo for RC Car Buggy Truck Boat Airplane Helicopter RC Toys Part
Seller: Banggood,
Free shipping aviable, Registered postage from 25 €


CYS-S3003 3KG Tiny Analog Servo for RC Car Buggy Truck Boat Airplane Helicopter RC Toys Part

CYS-S3003 Tiny Analog Steering Servo is designed and manufactured for RC Car Boat Airplane. Small size and light weight is conducive to the driving of RC models. If you want to get a better RC playing experience, CYS-S3003 servo is a good choice!

Features:
Wide operating voltage-6V to 7.4V
Small size and light weight, convenient to carry
Perfectly tailored to RC Car, RC Boat, RC Airplane
High sensitivity and responsiveness, flexible operation
Smooth movement, high efficiency and exquisite workmanship

Specifications:

Model: CYS-S3003
Item Name: CYS-S3003 Servo
Dead band: 4μsec
Operating Voltage: 6.0~7.4Volts
Operating Speed (6.0V): 0.12sec/60° at no load
Operating Speed (7.4V): 0.10sec/60° at no load
Stall Torque (6.0V): 3kg.cm
Stall Torque (7.4V): 3.5kg.cm
Current Drain (6.0V): 20mA/idle and 160mA no load operating
Current Drain (7.4V): 20mA/idle and 200mA no load operating
Stall Current (6V): 800mA
Stall Current (7.4V): 900mA
Horn Gear Spline: 25T
Bearing Type: Dual Ball Bearing
Motor Type: 3 Pole Ferrite Drive
Gear Type: Plastic
Size: 40.8 * 20.1 * 38mm
Weight: 36g

Important Notes:
-Refer to the figure when installing the servo accessories.
-For engine powered airplanes and boats, rubber must be used to reduce vibration.
- Please choose correct model for your application.
-Torque over-loaded will damage the servo's mechanism-.
- Keep the servo clean and away from dust, corrosive gas and humid air.

Package Included:
1 * CYS-S3003 Servo
1 * Spare Parts Set
