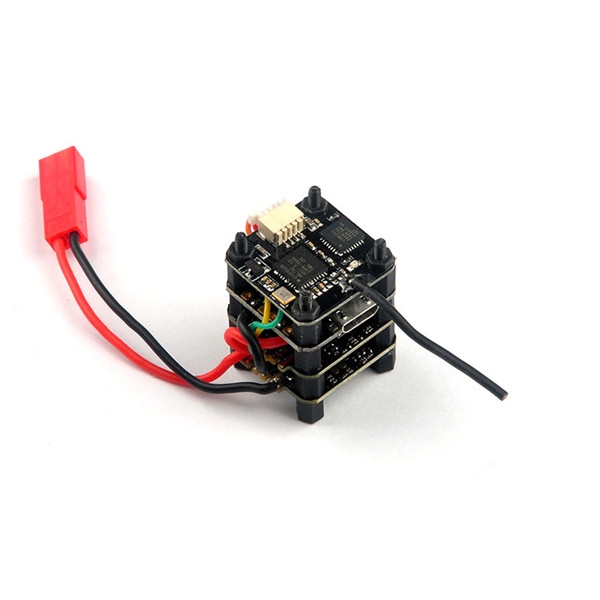

Specification:
Mount hole: 15mm*15mm
Size: 20mm*20mm*23mm
Weight: 10g
Teenycube DSM2/ DSMX satellite Receiver:
Frequency range: 2.403-2.479Ghz
Input power: 5V
Response time: 22ms / 11ms
Resolution: 1024/2048
Display method: LED
Operating voltage: 3.3V
Working current: 60MA
Size: 20mm*20mm*5mm
Weight: 1.1 g
Antenna length: 50mm
Data format: Serial port
Protocol: DSM2/DSMX
Distance: no ground interference (1 m from the ground ) > 200m
Uses: indoor small aircraft
Compatible Transmitters: DSM2 / DSMX series of remote control
Teenycube F3 6DOF Flight Controller:
STM32 F303 MCU
Firmware version: Betaflight 3.1
Firmware target: Omnibus
ESC Dshot protocol compatible(Need not modify)
SBUS/PPM/DSM2/DSMX input (Pin headers)
4PWM output (Pin headers)
Super Tiny Only 20x20mm, mount holes 15x15mm M2 screw
SPI Sensor MPU6000
2-4S Lipo Direct power
5V@1A BEC
3.3V output for spectrum Satellite Receiver
Built-in PDB
LED Strip solder pad ready
Buzzer solder pad ready
Weight: only 1.6g
Best for 60mm-80mm brushless frame
Teenycube 6A BLHeli_S Dshot 2 In 1 ESC:
Model:BS06D 2in1
Con. Current: 6A
Peak Current(10s): 10A
Input Voltage: 2S Lipo
BEC: No
Programming : YES
Cleanflihg/Betaflight pass-through ready
Firmware: Blheli_S 16.5
Net Weight: only 1.7g (Not include wire)
Size:20*20mm
Mount hole: 15mm*15mm M2
Features:
-STM32 F303MCU+BLHELI_S ESC make your Operating feel more stabilly and silky
-Jaw-dropping flight performance
-LED_STRIP solder pin
-BUZZER solder pin
-Betaflight support
-Acro mode / Air mode /Angle mode support
Package included:
1x Teenycube DSM2/ DSMX Satellite Receiver
1x Teenycube F3 6DOF Flight Controller
2x Teenycube 6A BLHeli_S Dshot 2 In 1 ESC
